Sharp GF-777H - Page 5

Figure 5-2

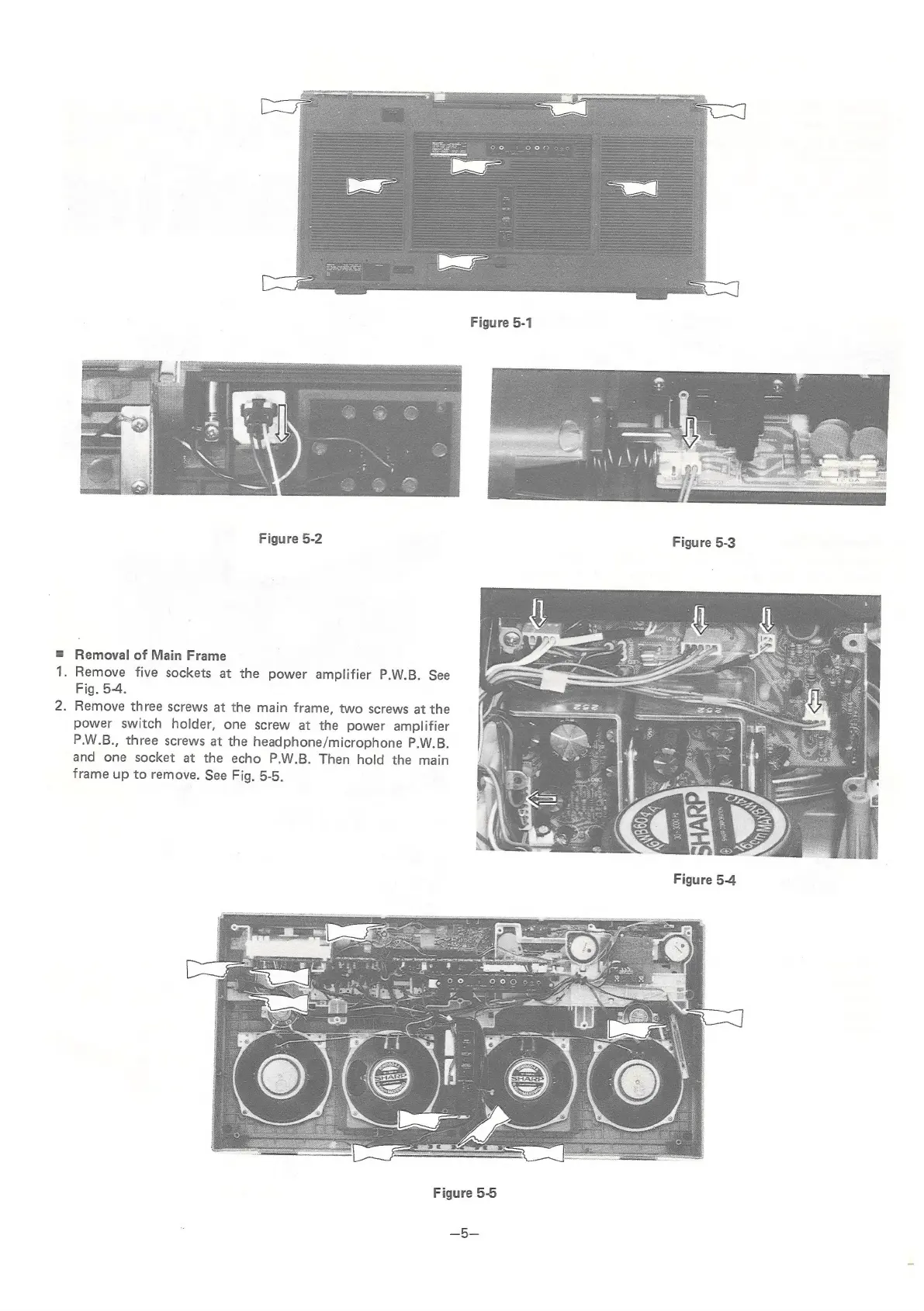

Removal of Main Frame
Remove
five
sockets
at
the
power
amplifier
P.W.B.
See
Fig.
5-4.
Remove
three
screws
at
the
main
frame,
two
screws
at
the
power
switch
holder,
one
screw
at
the
power
amplifier
P.W.B.,
three
screws
at
the
headphone/microphone
P.W.B.
and
one
socket
at
the
echo
P.W.B.
Then
hold
the
main
frame
up
to
remove.
See
Fig.
5-5.
Figure 5-1
Figure 5-5
alias
Figure 5-3
