Sharp GF-9000H - Page 18

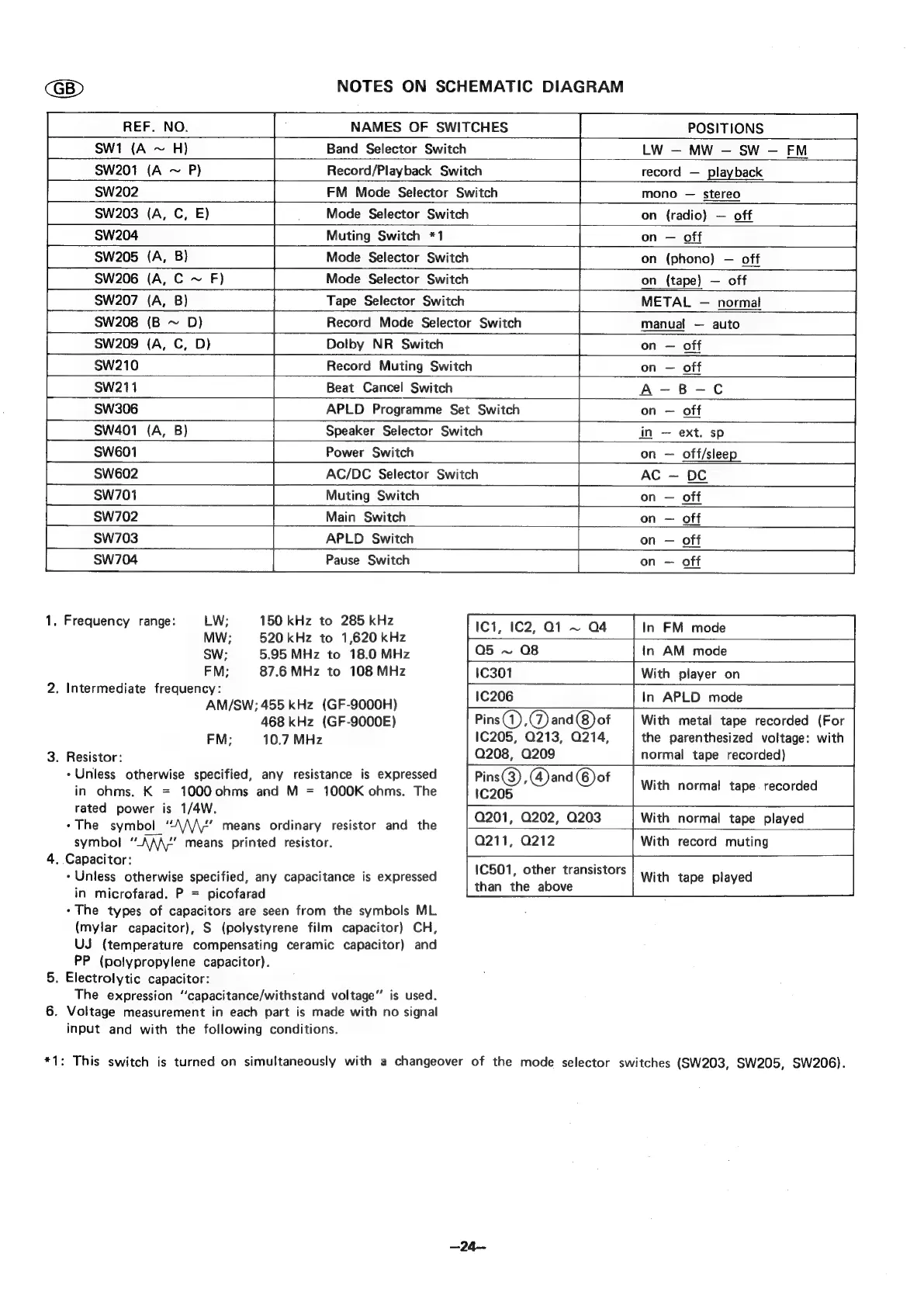

NOTES ON SCHEMATIC DIAGRAM
POSITIONS
Lw — MW — SW — FM
record — playback
mono — stereo
REF. NO.
SW1 (A ~ H)
SW201 (A ~ P)
SW202
SW203 (A, C, E)
NAMES OF SWITCHES
Band Selector Switch
Record/Playback Switch
FM Mode Selector Switch
Mode Selector Switch
Muting Switch *1 on — off
$W205 (A, B) Mode Selector Switch
SW207 (A, B) Tape Selector Switch
SW208 (B ~ D) Record Mode Selector Switch
$W209 (A, C, D) Dolby NR Switch
Record Muting Switch on — off
Beat Cancel Switch A-B-C
on (radio) — off
manual — auto
on — off
APLD Programme Set Switch on — off
SW401 (A, B) Speaker Selector Switch in — ext. sp
Power Switch on — off/sleep
SW601
SW602
SW701
AC/DC Selector Switch
Muting Switch
Main Switch
APLD Switch
Pause Switch
AC — DC
1. Frequency range: LW; 150 kHz to 285 kHz
MW; 520 kHz to 1,620 kHz
SW; 5.95 MHz to 18.0 MHz
FM; 87.6 MHz to 108 MHz
2. Intermediate frequency:
AM/SW; 455 kHz (GF-9000H)
468 kHz (GF-9000E) Pins (1) ,(7) and (8) of With metal tape recorded (For
FM;
10.7
MHz
1C205,
Q213,
Q214,
the
parenthesized
voltage:
with
3. Resistor: Q208, Q209 normal tape recorded)
IC1, 1C2, Q1 ~ Q4 In FM mode
05 ~ 08
i030
+ Unless otherwise specified, any resistance is expressed
in ohms. K = 1000 ohms and M = 1000K ohms. The
rated power is 1/4W.
-The symbol ‘A/\/\’ means ordinary resistor and the
symbol “AMS means printed resistor.
4. Capacitor:
- Unless otherwise specified, any capacitance is expressed
in microfarad. P = picofarad
-The types of capacitors are seen from the symbols ML
(mylar capacitor), S (polystyrene film capacitor) CH,
UJ (temperature compensating ceramic capacitor) and
PP (polypropylene capacitor).
5. Electrolytic capacitor:
The expression “capacitance/withstand voltage” is used.
6. Voltage measurement in each part is made with no signal
input and with the following conditions.
Pi 2) ni@) es With normal tape. recorded
Q201, Q202, Q203 jo normal tape played
Q211, Q212 With record muting
1C501, other transistors i.
than the above
With tape played
*1: This switch is turned on simultaneously with a changeover of the mode selector switches (SW203, SW205, SW206).
