GX-CH170X/CH170Z
FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.
SPECIFICATIONS
General
Power source: AC 220-240 V, 50 Hz
(GX-CH170X) DC 12 V [ "D" size (UM/SUM-1,
R20 or HP-2) battery x 8]
Power source: AC 110-127/220-240 V, 50/60 Hz
(GX-CH170Z) DC 12 V [ "D" size (UM/SUM-1,
R20 or HP-2) battery x 8]
Power consumption: 55 W
Output power: PMPO; 60 W (total)
MPO (Max.); 24 W (12 W + 12 W)
(AC operation)
RMS; 10 W (5 W + 5 W)
(DC operation, 10 % T.H.D.)
Output terminal: Headphones; 16 - 50 ohms
(recommended; 32 ohms)
Dimensions: Width; 290 mm (11-1/2")
Height; 260 mm (10-1/4")
Depth; 277 mm (10-15/16")
Weight: 4.3 kg (9.5 Ibs.) without batteries
Compact disc player
Type: Twin CD mechanism
Signal readout: Non-contact, 3-beam semi-
conductor laser pickup
Audio channels: 2
D/A converter: 1-bit D/A converter
Decoder: 16-bit linear quantization
Filter: 4-tims oversampling digital filter
Wow and flutter: Unmeasurable
(less than 0.001% W. peak)
Radio
Frequency range: FM; 87.6 - 108 MHz
(GX-CH170X) AM; 530 - 1,702 kHz
Frequency range: FM; 88 - 108 MHz
(GX-CH170Z) MW; 526.5 - 1,606.5 kHz
SW1; 2.3 - 7.3 MHz
SW2; 7.3 - 22 MHz
Tape recorder
Frequency response: 50 - 14,000 Hz (Normal tape)
Signal/noise ratio: 50 dB (TAPE 1, recording /
playback)
55 dB (TAPE 2, playback)
Wow and flitter: 0.25 % (WRMS)
Motor: DC 12 V electric governor
Bias system: AC bias
Erase system: AC erase
Speaker section
Type: 2-way 4-speaker bass-reflex type
Speakers: 10 cm (4") woofer x 2
Tweeter x 2
Maximum input power: 8 W
Impedance: 3.2 ohms
Dimensions: Width; 190 mm (7-1/2")
Height; 260 mm (10-1/4")
Depth; 183 mm (7-1/4")
Weight: 1.3 kg (2.9 Ibs.) /each
– 2 –
92LCoRD577BQACCB0004AW00
QACCE0007AW00 92LPLUG027 92LPLUG155A

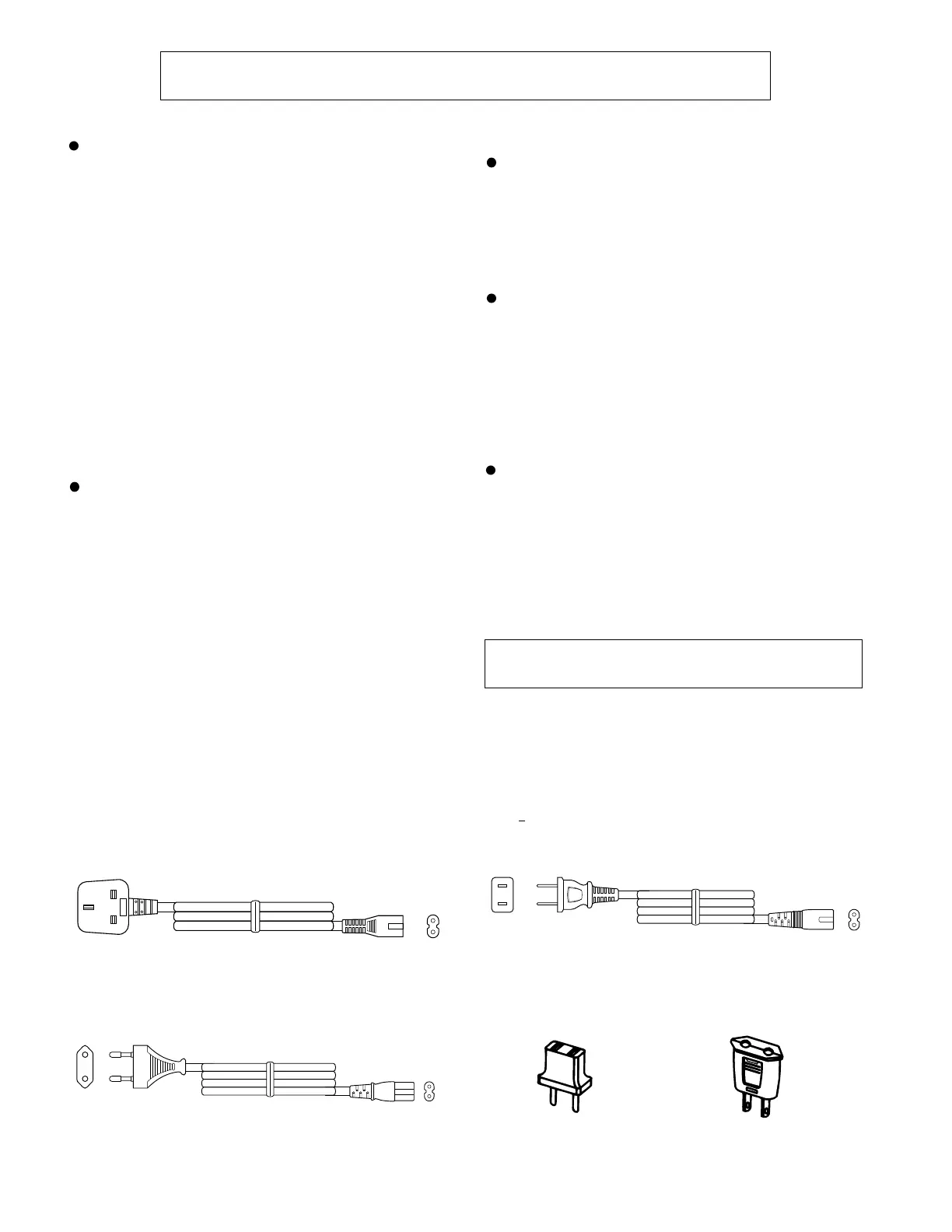

Figure 2 AC POWER SUPPLY CORD AND AC PLUG ADAPTOR
Before operating the unit on mains, check the preset voltage.
If the voltage is different from your local voltage. Slide the AC
power supply socket cover by slightly loosing the screw to the
visible indication of the side of your local voltage.
VOLTAGE SELECTION (GX-CH170Z ONLY)
Specifications for this model are subject to change without
prior notice.
