1 Front Cabinet 1. Screw..................(A1) x11 5-1
2. Socket...................(A2) x1 5-2
3. Tip......................... (A3) x1 6-5
2 CD Block 1. Screw....................(B1) x2 5-2
2. Socket...................(B2) x3 5-3
3 Graphic EQ. PWB 1. Screw................... (C1) x3 5-3
2. Socket.................. (C2) x1
4 Tuner PWB 1. Screw................... (D1) x2 5-3
(with Tuner Frame) 2. Flat Cable .............(D2) x1
5 Main PWB 1. Hook .....................(E1) x1 5-3
2. Flat Cable ............. (E2) x3 5-3,6-1
6 Display PWB/ 1. Screw.................... (F1) x9 5-3,6-1
Switch PWB 2. Hook ..................... (F2) x1 6-1
7 Deck PWB 1. Screw................... (G1) x3 6-1
2. Socket.................. (G2) x3
8 Tape Mechanism 1. Open the cassette holder.
2. Screw................... (H1) x6 6-2
9 CD Servo PWB 1. Screw.................... (J1) x2 6-3
10 CD Mechanism 1. Screw.................... (K1) x6 6-4
11 Power PWB/ 1. Open the battery lid.
Terminal PWB 2. Screw.................... (L1) x4 6-5
3. Hook ..................... (L2) x1
SPEAKER
1 Front Panel 1. Screw .................. (N1) x4 6-6
DISASSEMBLY
Caution on Disassembly
Follow the below-mentioned notes when disassembling the
unit and reassembling it, to keep it safe and ensure excellent
performance:
1. Take cassette tape and compact disc out of the unit.
2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.
3. Take off nylon bands or wire holders where they need be
removed when disassembling the unit. After servicing the
unit, be sure to rearrange the leads where they were
before disassembling.
4. Take suffcient care on static electricity of integrated
circuits and other circuits when servicing.

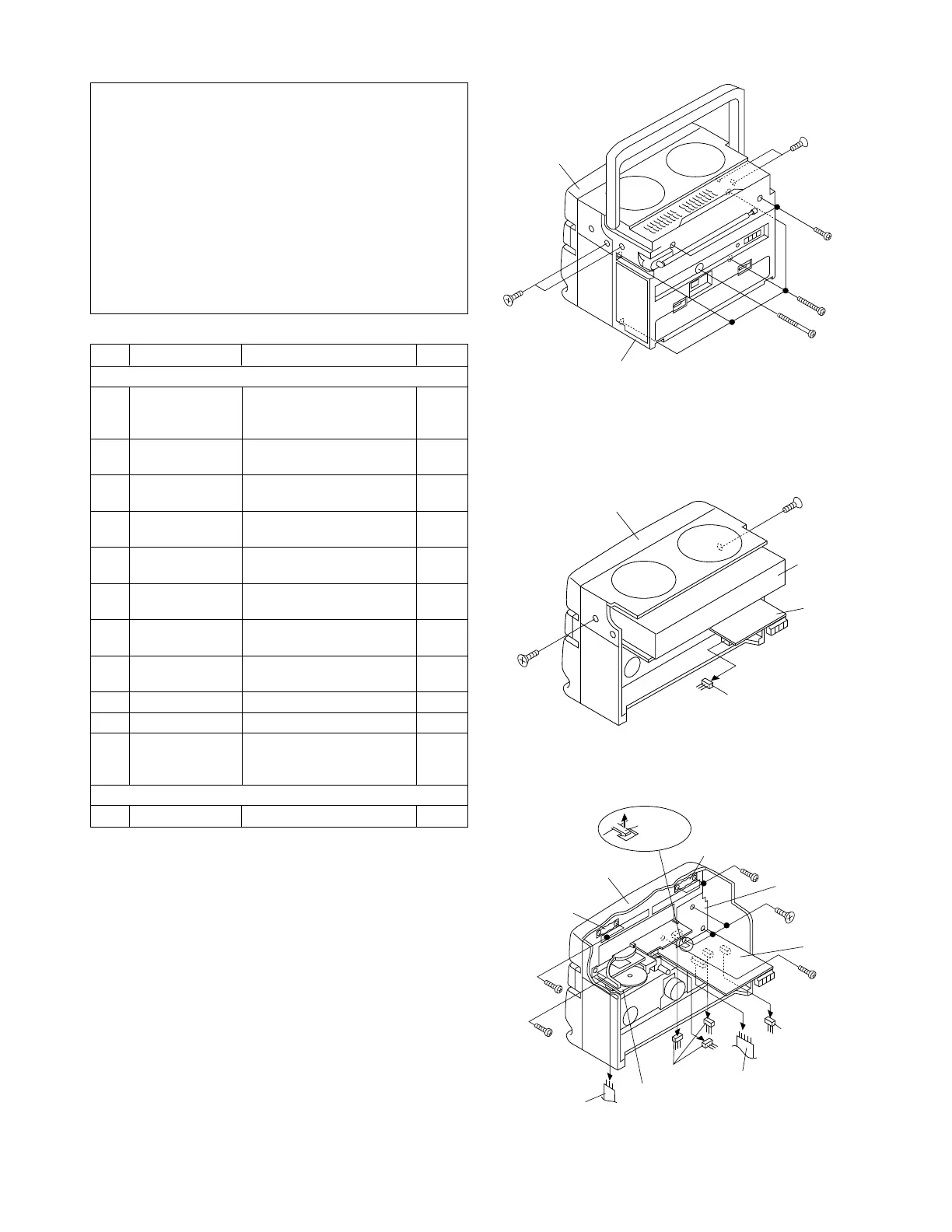

STEP REMOVAL PROCEDURE FIGURE
Figure 5-3
Figure 5-1
– 5 –
( A1 ) x2
ø3 x6mm
( A1 ) x2
ø3 x6mm
( A1 ) x2
ø3 x10mm
( A1 ) x4
ø3 x20mm
( A1 ) x1
ø3 x65mm
Rear
Cabinet
Front
Cabinet
Front
Cabinet
CD Block
Main PWB
( B1 ) x1
ø3 x10mm
( B1 ) x1
ø3 x10mm
( A2 ) x1
Figure 5-2
Front
Cabinet
Switch
PWB
Graphic EQ. PWB
Switch
PWB
Tuner
PWB
Main PWB
( C2 ) x1
( E2 ) x1
( B2 ) x3
( D2 ) x1
( E1 ) x1
( F1 ) x2
ø3 x10mm
( F1 ) x2
ø3 x10mm
( D1 ) x1
ø3 x10mm
( D1 ) x1
ø3 x10mm
( C1 ) x3
ø3 x10mm
