Sharp GX-CH170X User Manual

GX-CH170X/CH170Z
A
CD MECHANISM SECTION
Perform steps 1, 2, 9 and 10 of the disassembly method to
remove the CD mechanism.

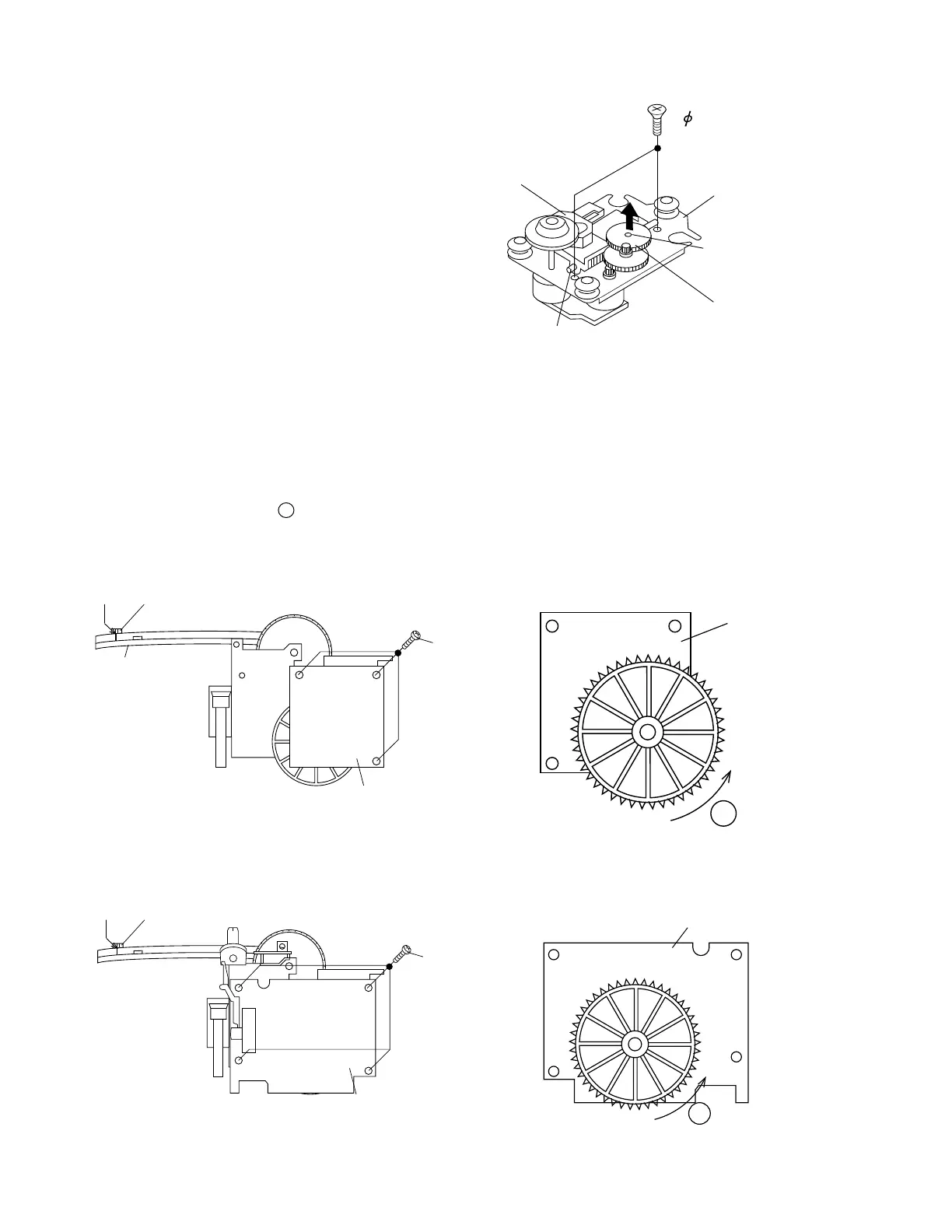

How to remove the pickup (See Fig. 8-1.)
1. Remove the screws (A1) x2 pcs., to remove the shaft (A2) x
1 pc.
2. Remove the stop washer (A3) x1 pc., to remove the gear
(A4) x 1 pc.
3. Remove the pickup.
– 8 –
Figure 8-1
FITTING OF DIAL POINTER
1. Remove the three screws, and remove the tuner PWB from the tuner frame. (See Fig. 8-2) [GX-CH170X]
1. Remove the four screws, and remove the tuner PWB from the tuner frame. (See Fig. 8-2) [GX-CH170Z]
2. Turn fully the dial wheel in the direction. (See Fig. 8-3)
3. Set the dial pointer as shown in Figure 9-2, and mount the tuner PWB.
(GX-CH170X)
Figure 8-2 Figure 8-3
(GX-CH170Z)
(A1) x2
2.6 x6mm
Stop Washer
(A3) x1
CD Mechanism
Gear
(A4) x1
Shaft
(A2) x1
Pickup
Tuner PWB
(Top view)
Screw x3
"0" Point
Dial
Pointer
( 235 )
Tuner
Frame
Tuner PWB
(Top view)
Screw x4
"0" Point
Dial
Pointer
( 235 )
Tuner PWB
(Bottom view)
A
Tuner PWB
(Bottom view)
A
