GX-CH170X/CH170Z
A
B
C
D
E
F
G
H
1
2 3 4 5 6

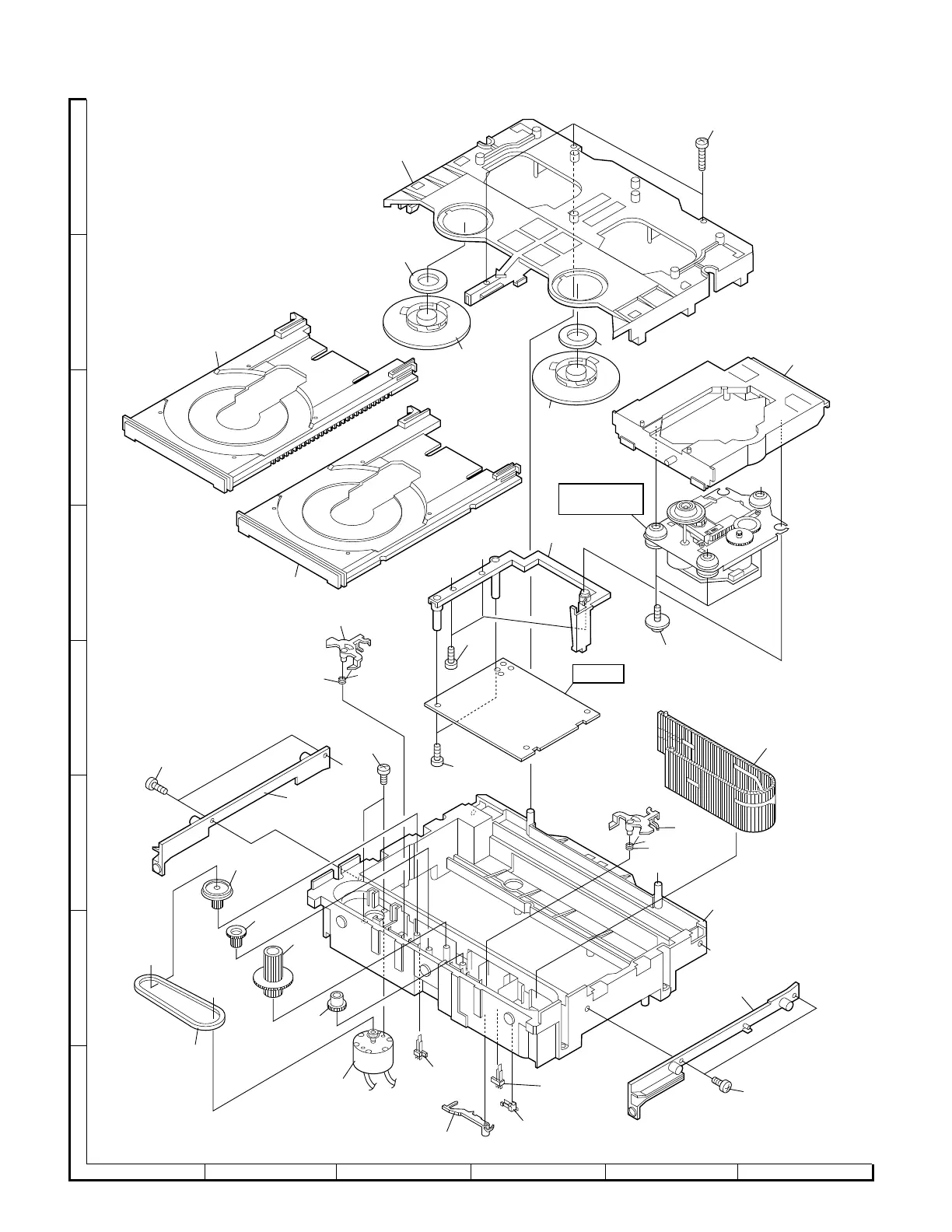

Figure 9 CD CHANGER EXPLODED VIEW
– 9 –
PWB-D
102
401x3
118
108
109
114
111
404x3
402x3
405x2
403x2
103
104
105
106
107
405x2
405x2
122
123
116
115
101
112
114
M981
SW982
SW981
113
SW983
117
117
118
110
CD
MECHANISM
