Placement and Mounting
AB

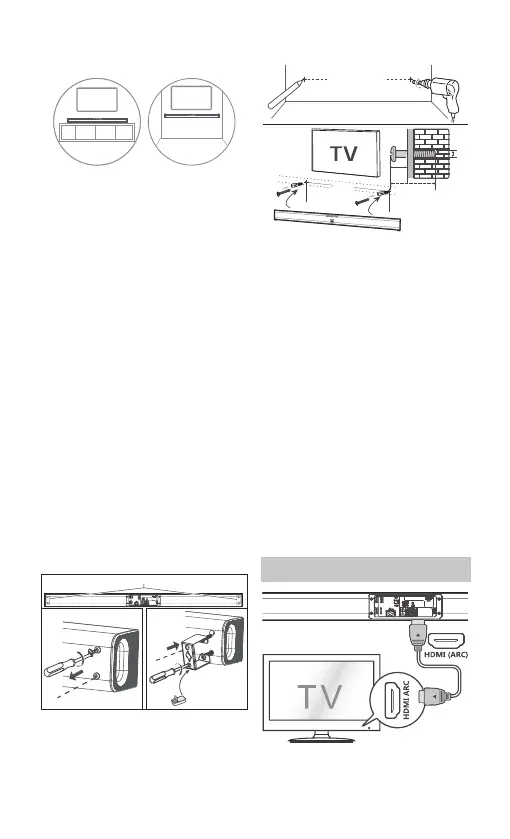

A: Normal Placement (place Soundbar on
leveled surface in front of TV)
B: Wall Mounting
Wall Mounting
NOTE:
Installation must be carried out by
quali ed personnel only. Incorrect
assembly can result in severe personal
injury and property damage (if you
intend to install this product yourself,
you must check for installations such
as electrical wiring and plumbing that
may be buried inside the wall). It is the
installer’s responsibility to verify that
the wall will safely support the total
load of the unit and wall brackets.
Additional tools (not included) are
required for the installation.
Do not overtighten screws.
Keep this instruction manual for future
reference.
Use an electronic stud nder to check
the wall type before drilling and
mounting.
914мм
1
2
Пористый
уплотнитель
914мм
3
> 32мм
4мм
(5мм)
4
914мм
1. Remove the screws from the main
unit.
2. Attach the wall brackets to the main
unit with the screws removed from
the main unit.
If necessary, stick EVA sponge into the
brackets to balance the soundbar.
3. Drill 2 parallel holes in the wall. The
distance between the holes should
be 914 mm.
Firmly x one dowel into each hole
in the wall and then insert screws
into them.
4. Leave a 5mm gap between the wall
and the screw’s head. Lift the unit
with the attached wall brackets over
the heads of the screws and slot into
place.
