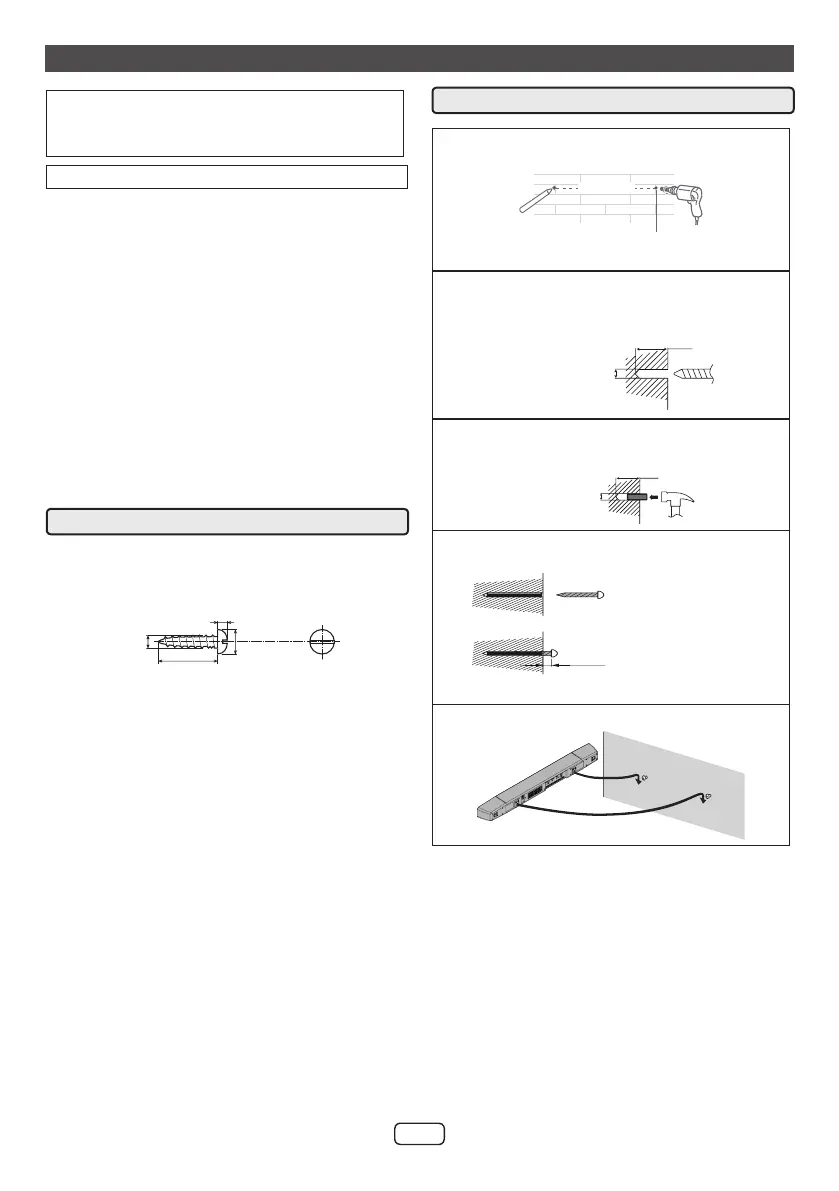

Sharp HT-SBW125 User Manual

E-8
Make sure to unplug the AC power lead be-
fore installing the sound bar or changing the
position.
To mount the sound bar on the wall
Caution:
 Be very careful to prevent the sound bar [1.7 kg
(3.7 lbs.)] from falling when mounting on the wall.
 Before mounting, check the wall strength. (Do not
put on the veneer plaster or whitewashed wall.
The sound bar may fall.) If unsure, consult a qual-
ied service technician.
 Mounting screws are not supplied. Use appropri-
ate ones.
 Check all wall mount angle screws for looseness.
 Select a good location. If not, accidents may oc-
cur or the sound bar may get damaged.
 SHARP is not responsible for accidents re-
sulting from improper installation.
 Driving screws
SHARP designed the sound bar so you may hang it
on the wall. Use proper screws (not supplied). See
below for size and type.
3.2 mm
9 mm
22 mm
5 mm
 Installing the sound bar
1 Mark two screw points on the wall as below
distance.
Ø5.5~6mm
32m
403 mm
2 Make a hole on the wall following the screw
point marks on the pattern paper by using a
drill.
Wall surface
32 mm
8-9 mm
3 Fix a wall mount plug into the hole using a
hammer, until it is ush with the wall surface.
32 mm
8-9 mm
Wall sur face
4 Fasten the screws to the wall as shown be-
low. (Total screw is 2 pieces)
Wall surface
Wall surface
Screw using
screwdriver
4.5 mm - 5 mm
Gap from wall
surface
5 Hang the sound bar onto the screws.
System preparation
