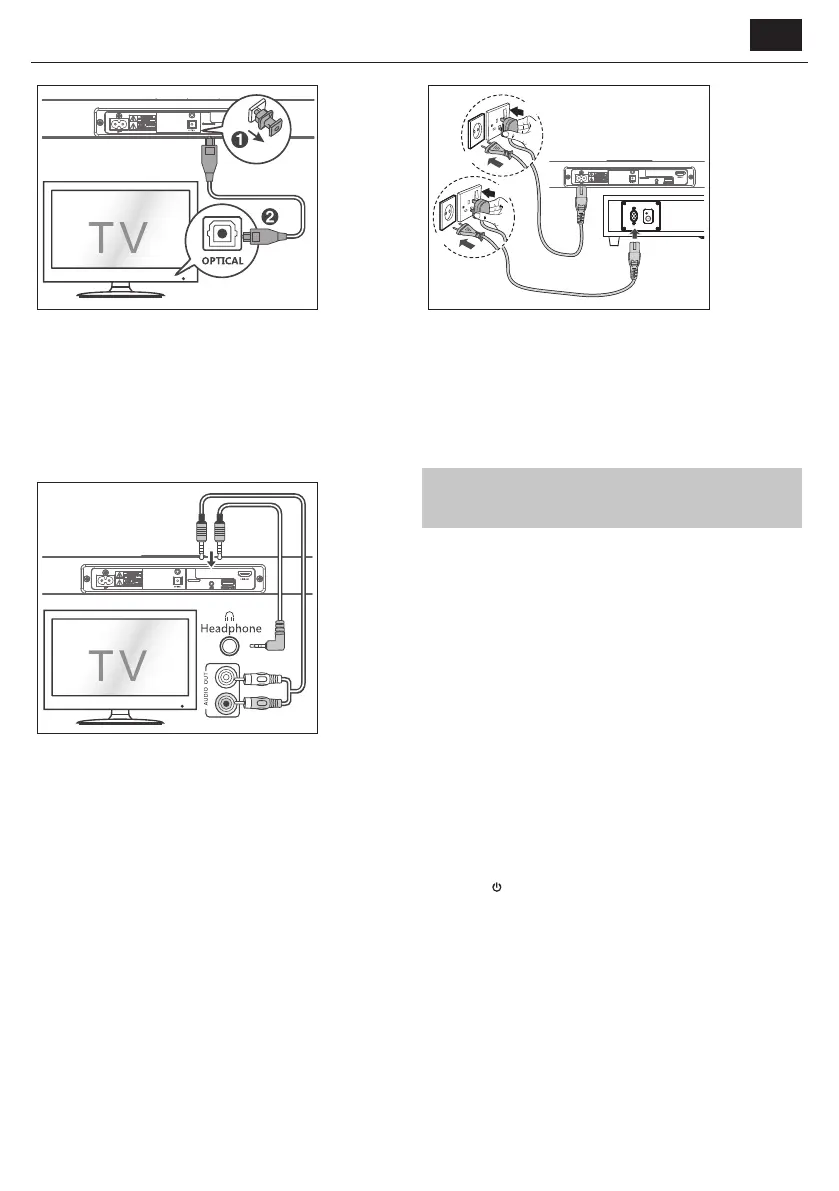

OPTICAL input
• Remove the protective cap of the OPTICAL socket, then connect an
OPTICAL cable (not included) to the TV’s OPTICAL OUT socket and the
OPTICAL socket on the unit.
TIP:
While in HDMI ARC/OPTICAL mode, if there’s no sound output from the
unit and the HDMI ARC/OPTICAL lights  ashes quickly, you may need to
activate PCM signal output on your source device (eg. TV, DVD or Blu-ray
player).
AUX
A. Use a RCA to 3.5mm audio cable (not included) to connect the TV’s
audio output sockets to the AUX socket on the unit.
B. Use a 3.5mm to 3.5mm audio cable (not included) to connect the TV’s
or external audio device headphone socket to the AUX socket on the
unit.
TIP:
When you use the headphone output on the TV set, you will be able to
adjust the volume level directly using the TV remote control.
Connect to Subwoofer
NOTE:
• For optimal sound, use the supplied Subwoofer only.
• Connect only speakers with impedance that is the same or higher than
the supplied speakers. Refer to the Speci cations section of this manual.
EU
UK
EU
UK
Connect to Power
• Before connecting the AC power cord, ensure you have completed all
other connections.
• Risk of product damage! Ensure that the power supply voltage corres-
ponds to the voltage printed on the back or the underside of the unit.
• Connect the mains cable to the AC~ Socket of the unit and subwoofer
then into a mains socket.
Pairing the Wireless Subwoofer with the
Main Unit
Automatic pairing
The subwoofer and soundbar will automatically pair when both units are
plugged into the supply and turned on. No cable is needed for connecting
the two units.
 When the subwoofer is pairing with the main unit, the Pairing Indicator
will  ash fash.
 When the subwoofer is paired with the main unit, the Pairing Indicator
will light up.
NOTE:
 Do not press the PAIR button on the rear of the subwoofer, except for
manual pairing.
 If the automatic pairing fails, pair the subwoofer with the main unit
manually.
Manual pairing
1. Ensure that all the cables are well connected and the main unit is in
Standby mode.
2. Press and hold the PAIR button on the rear of the subwoofer for a few
seconds. The subwoofer will enter the pairing mode and the Pairing
Indicator will blink quickly.
3. Press the
button on the main unit or on the remote control to switch
the main unit on.
4. After the wireless connection succeeded, the Pairing Indicator will
light up.
5. If the Pairing Indicator blinks, the wireless connection has failed.
Unplug the cable of the subwoofer and then reconnect the main cable
after 3 minutes. Repeat step 1 ~ 4.
NOTE:
• If the wireless connection fails again, check if there is con ict or strong
interference (for example, interference from an electronic device) around
your location. Remove these con icts or strong interferences and repeat
the above procedures.
• The subwoofer should be within 6m of the soundbar in an open area.

Sharp HT-SBW160 Specifications

General

Equalizer	Yes
RMS rated power	360 W
Audio output channels	2.1 channels
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Soundbar power consumption	30 W
Power consumption (standby)	0.5 W
Certification	CE (EMC), CB (Safety), ErP (Energy)
Product color	Black, White
TV stand usage	No
Subwoofer connectivity	Wireless
Subwoofer frequency range	40 - 120 Hz
Cables included	AC
Bluetooth version	4.2
Connectivity technology	Wired & Wireless
Soundbar frequency range	120 - 20000 Hz
Package type	Giftbox
Package depth	120 mm
Package width	970 mm
Package height	365 mm
Package weight	7300 g
Master (outer) case width	990 mm
Master (outer) case height	390 mm
Master (outer) case length	250 mm
Master (outer) case weight	16000 g
Quantity per master (outer) case	2 pc(s)
Master (outer) case GTIN (EAN/UPC)	8586018085090

Weight and Dimensions

Depth	84 mm
Width	900 mm
Height	45 mm
Soundbar weight	2000 g
Subwoofer depth	255 mm
Subwoofer width	465 mm
Subwoofer height	94 mm
Subwoofer weight	3100 g
