REPLACEMENT
NOTE
• Do not clean with anything other than the Unit Cleaning Brush.
(Doing so could lead to failures in the unit)
• A bent electrode could be cut off and dropped during the cleaning
process, but it will not change the performance.
• Do not touch the electrode
directly. (Doing so could lead to
pain / itching)
• Do not deform the electrodes.
(Doing so could lead to failures
in the unit)
• Do not touch the connection
terminal. (Doing so could lead to
failures in the unit)
Connection
Terminal

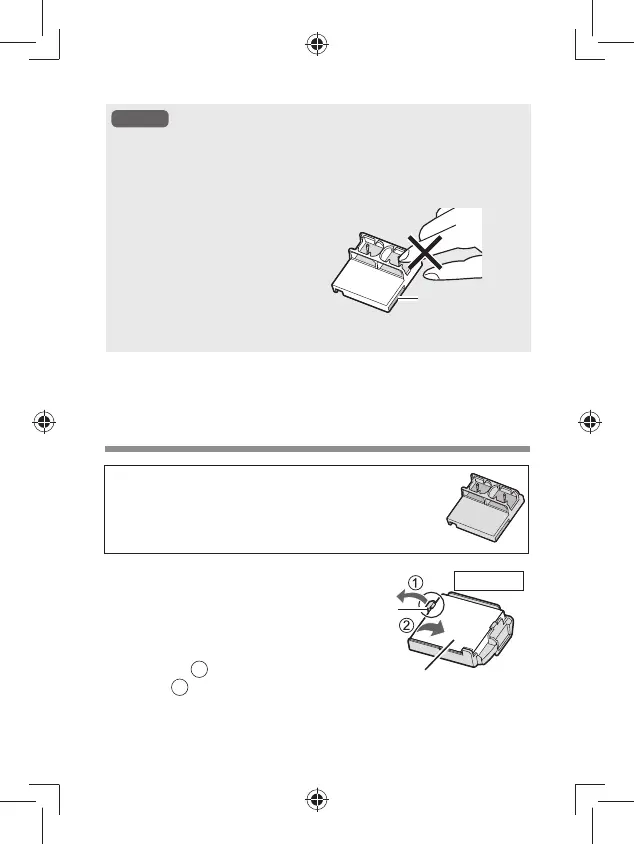

Replacement of the Plasmacluster Ion Unit
Model: IZ-C100ME
1.
Take the Unit Holder.
• See step 1 to 4 of
“DISASSEMBLING” on page
10.
Remove
Unit
Claw
2.
Remove the claw of Unit
Holder (
1
), and remove the
Unit (
2
).
