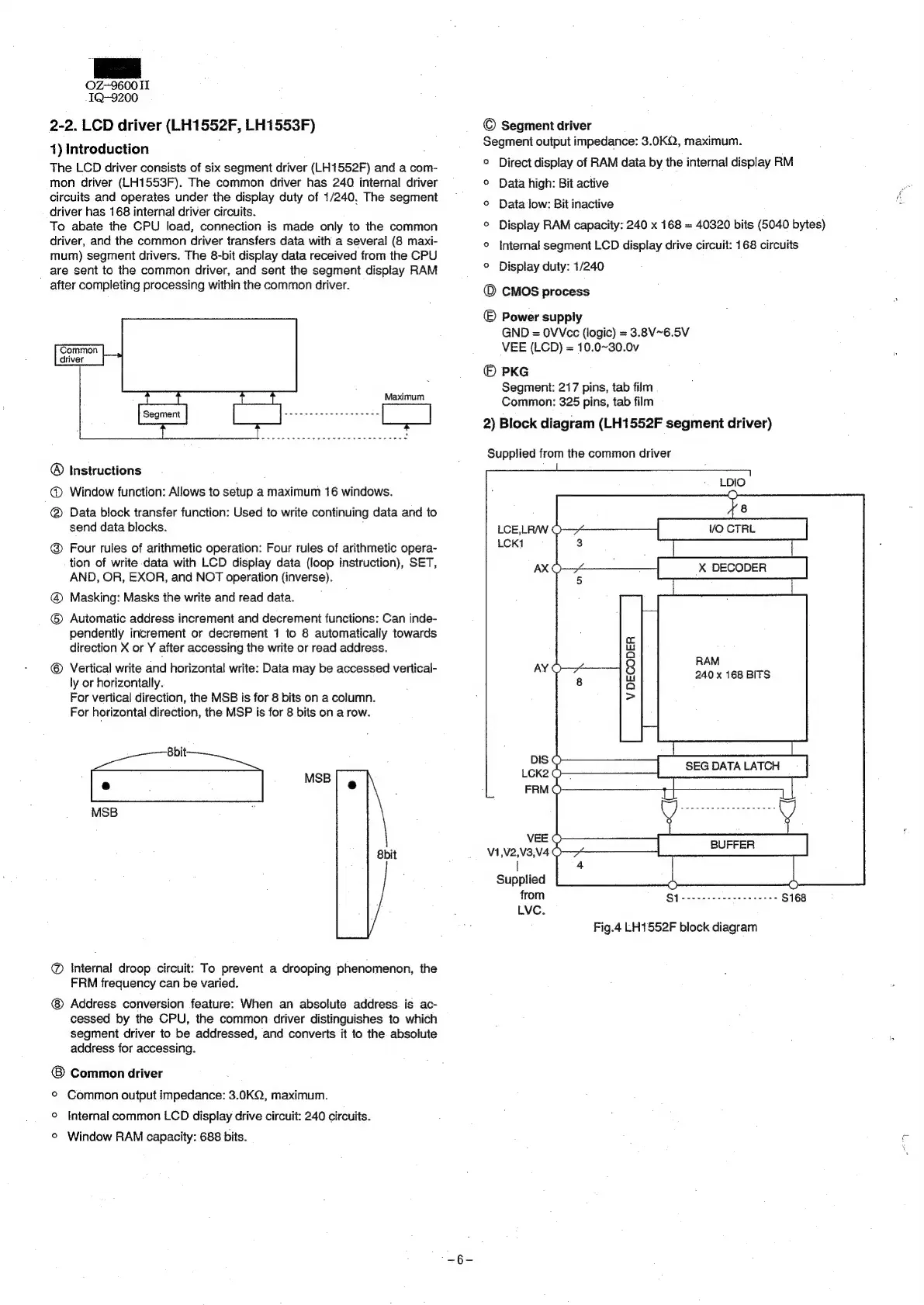

OZ-9600
IT
TQ-9200
2-2.
LCD
driver
(LH1552F,
LH1553F)
1)
Introduction
The
LCD
driver
consists
of
six
segment
driver
(LH1552F)
and
a
com-
mon
driver
(LH1553F).
The
common
driver
has
240
internal
driver
circuits
and
operates
under
the
display
duty
of
1/240,
The
segment
driver
has
168
internal
driver
circuits.
To
abate
the
CPU
load,
connection
is
made
only
to
the
common
driver,
and
the
common
driver
transfers
data
with
a
several
(8
maxi-
mum)
segment
drivers.
The
8-bit
display
data
received
from
the
CPU
are
sent
to
the
common
driver,
and
sent
the
segment
display
RAM
"after
completing
processing
within
the
common
driver.
Common
driver
Maximum
®
Instructions
@
Window
function:
Allows
to
setup
a
maximum
16
windows.
@®
Data
block
transfer
function:
Used
to
write
continuing
data
and
to
send
data
blocks.
@®
Four
rules
of
arithmetic
operation:
Four
rules
of
arithmetic
opera-
tion
of
write
data
with
LCD
display
data
(loop
instruction),
SET,
AND,
OR,
EXOR,
and
NOT
operation
(inverse).
@
Masking:
Masks
the
write
and
read
data.
©
Automatic
address
increment
and
decrement
functions:
Can
inde-
pendently
increment
or
decrement
1
to
8
automatically
towards
direction
X
or
Y
after
accessing
the
write
or
read
address.
©
Vertical
write
and
horizontal
write:
Data
may
be
accessed
vertical-
ly
or
horizontally.
For
vertical
direction,
the
MSB
is
for
8
bits
on
a
column.
For
horizontal
direction,
the
MSP
is
for
8
bits
on
a
row.
8bit
MSB
MSB
8bit
@
Internal
droop
circuit:
To
prevent
a
drooping
phenomenon,
the
FRM
frequency
can
be
varied.
Address
conversion
feature:
When
an
absolute
address
is
ac-
cessed
by
the
CPU,
the
common
driver
distinguishes
to
which
segment
driver
to
be
addressed,
and
converts
it
to
the
absolute
address
for
accessing.
Common
driver
©
Common
output
impedance:
3.0KQ,
maximum.
©
Internal
common
LCD
display
drive
circuit:
240
circuits.
©
Window
RAM
capacity:
688
bits.
©
Segment
driver
Segment
output
impedance:
3.0KQ,
maximum.
o
°
°
°
°
°
Direct
display
of
RAM
data
by
the
internal
display
RM
Data
high:
Bit
active
Data
low:
Bit
inactive
Display
RAM
capacity:
240
x
168
=
40320
bits
(5040
bytes)
Internal
segment
LCD
display
drive
circuit:
168
circuits
Display
duty:
1/240
©
CMOS
process
©
Power
supply
GND
=
0VVec
(logic)
=
3.8V~6.5V
VEE
(LCD)
=
10.0~30.0v
©
PKG
Segment:
217
pins,
tab
film
Common:
325
pins,
tab
film
2)
Block
diagram
(LH1552F
segment
driver)
Supplied
from
the
common
driver
RAM
240
x
168
BITS
oO
uu
Qa
8
uu
Qa
>
v1
v2,V3,v4
04+}
I
Supplied
from
ou
deke
ooseetaeosas
ee
68
LVC.
Fig.4
LH1552F
block
diagram
