1. Remove the lid assembly in accordance with “REMOVE OF LID ASSEMBLY”.
2. Disconnect 3 lead wires of lid heater.
3. Remove the screw holding the lid cover to lid.
4. Separate the lid from the lid cover by insert 2 pieces of fl at type screw driver the lid cover alternately into
the gap between them.
5. Remove 3 screws holding the holder plate to lid cover.
6. Detach the lid heater from the lid cover.
7. Now the lid cover is free.
10
1. Remove the handle cover in accordance with “REMOVE OF HANDLE COVER”.
2. Remove the dew receiver from upper ring.
3. Pull out the handle shafts from the upper ring.
4. Now the lid assembly is free.
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Remove the lid assembly in accordance with “REMOVE OF LID ASSEMBLY”.
3. Upside down the outer pot, straingter 4 claws of outer pot holding to the upper ring.
4. Remove the outer pot from the upper ring.
5. Now the upper ring is free.
REMOVE OF LID ASSEMBLY
REMOVE OF UPPER RING
REMOVE OF LID COVER (LID HEATER ASSEMBLY)
Tool
Handle shaft
Upper ring

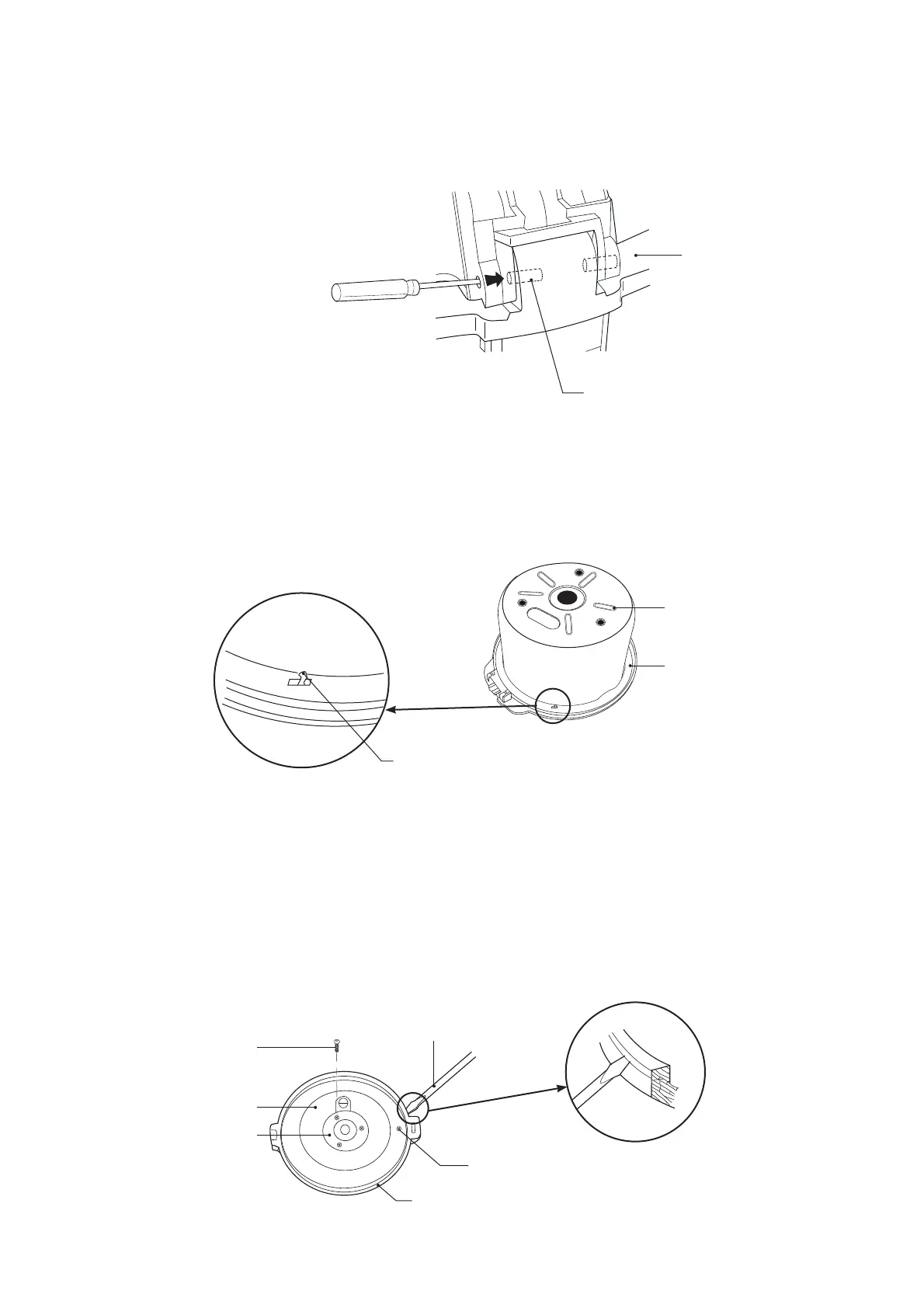

Fig. 11
Outer pot
Upper ring
Outer pot
Claw of outer pot
Screw
Screw
Lid
Flat type screwdriver
Lid cover
Holder plate
Fig. 12
Fig. 13
