9
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Disconnect lead wires of the temp. fuse and remove the screw holding the temp. fuse angle.
3. Detach the temp. fuse from the temp. fuse angle. Fig. 9
4. Now the temp. fuse ass’y is free.
Note : When reassembly take care so that the charged part of temp. fuse ass’y does not protrude from the
TUBE-TA and securely fi x it to the temp. fuse angle and then fi x it with a screw to the outer pot.
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Disconnect 2 lead wires to the thermostat (cut off).
3. Remove 2 screws and detach the thermostat (cut off) from the outer pot.
4. Now the thermostat (cut off) is free.
REMOVE OF TEMP. FUSE ASSEMBLY
REMOVE OF THERMOSTAT (CUT OFF)

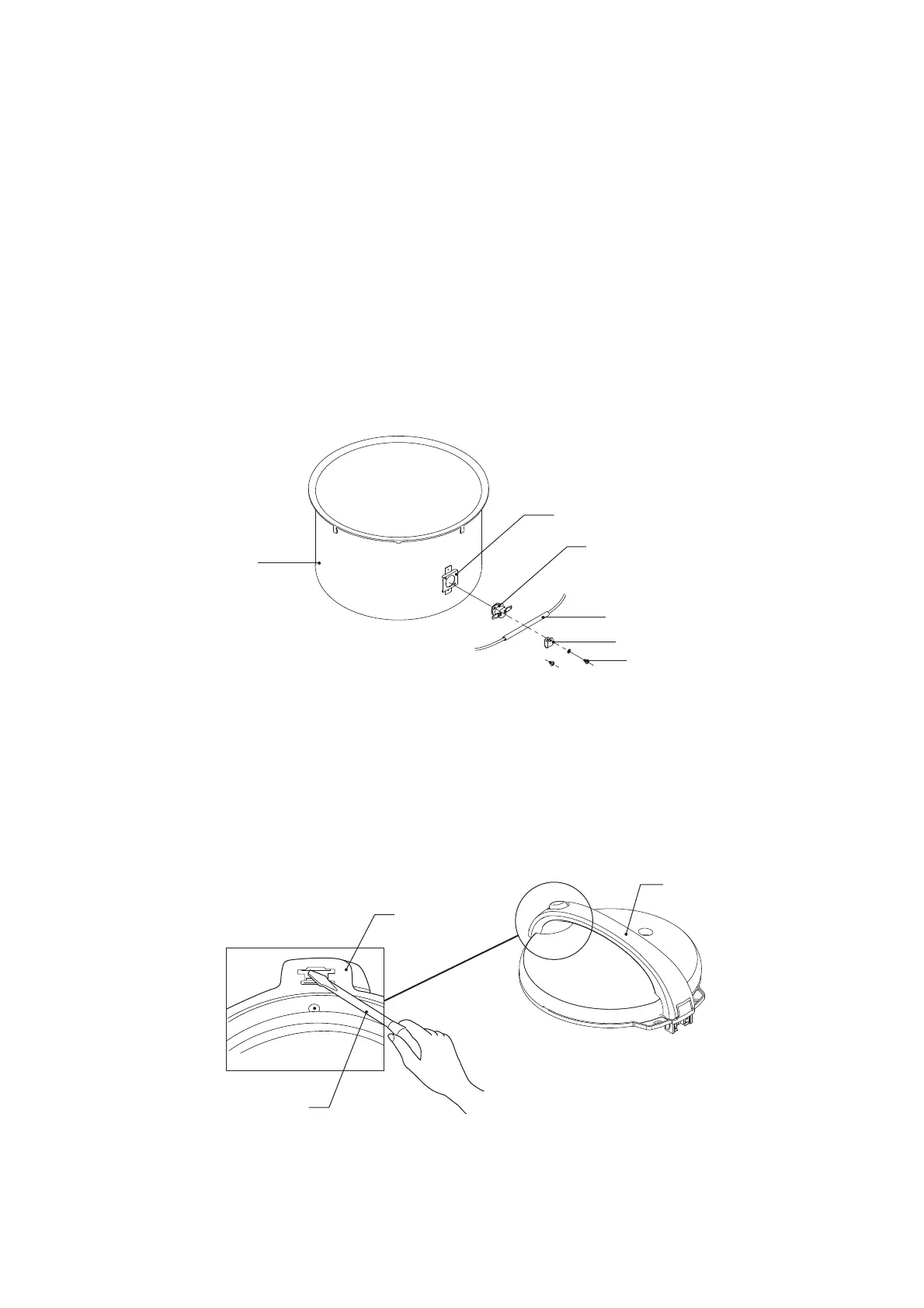

Fig. 9
Outer pot
Inner pot thermo angle
Thermostat (Cut off)
Temp. fuse ass’y
Temp. fuse angle
Screw
1. Insert the fl at type screwdriver into the gap between the handle cover and the lid cover, pry the handle
cover to wrench them upwards.
REMOVE OF HANDLE COVER
Fig. 10
Lid cover
Handle cover
Flat type screw driver
