8
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Disconnect the lead wire of side heater assembly from the thermostat (cut off), the heater plate ass’y
and disconnect lead wires from the micro SW, then remove 2 closed terminals holding side heater lead
wires from the lid heater lead wires.
3. Pull the side heater from the outer pot.
Note : Before removing, put a mark for positioning of side heater on the outer pot and be sure to reassembly
the side heater as it was.
REMOVE OF SIDE HEATER ASSEMBLY
1. Remove the bottom cover in accordance with “REMOVE OF BOTTOM COVER”.
2. Remove the nut holding the lead wire earth to the body.
3. Detach the dew receiver from the upper ring.
4. Insert the fl at type screwdriver or similar to pry the claw of the hinge cover and remove it.
5. Insert the fl at type screwdriver into the gap between the upper ring and latch hook cover, to pry the latch
hook cover from the upper ring.
6. Remove 2 screws holding to the body and remove the screw holding the control panel.
7. Detach the control panel from the body.
8. Separate the body from the upper ring by rubber hammer knock the upper ring. Fig. 7
9. Insert the control panel through the gap of the body.
10. Now the body is free.
REMOVE OF BODY

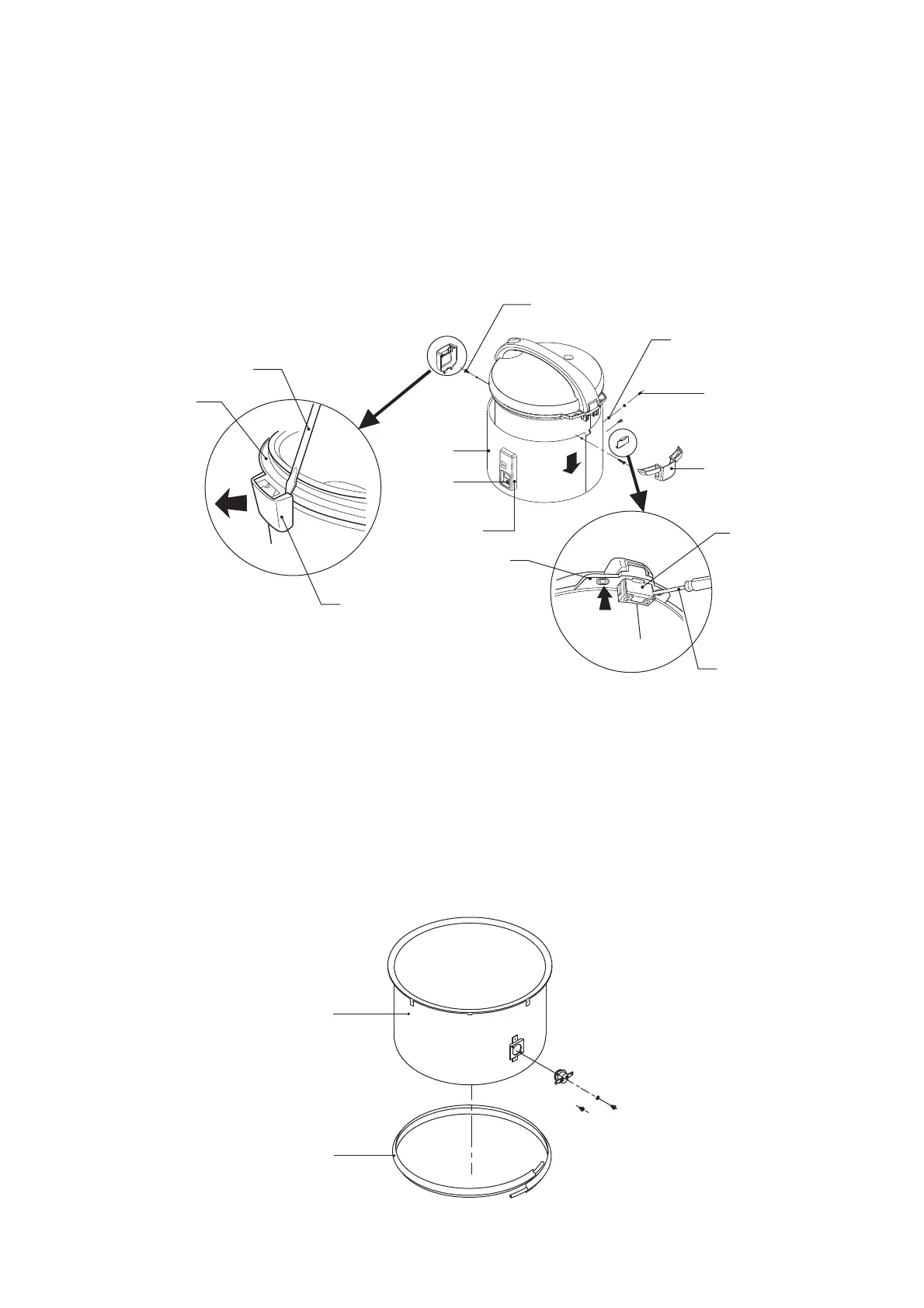

Fig. 7
Latch hook cover
Body
Screw
Upper ring
Flat type screwdriver
Hinge cover
Dew receiver
Upper ring
Screw
Control panel
Screw
Body
Flat type screwdriver
To knock
Fig. 8
Outer pot
Side heater ass’y
Nut (for earth lead wire)
To Next Page
