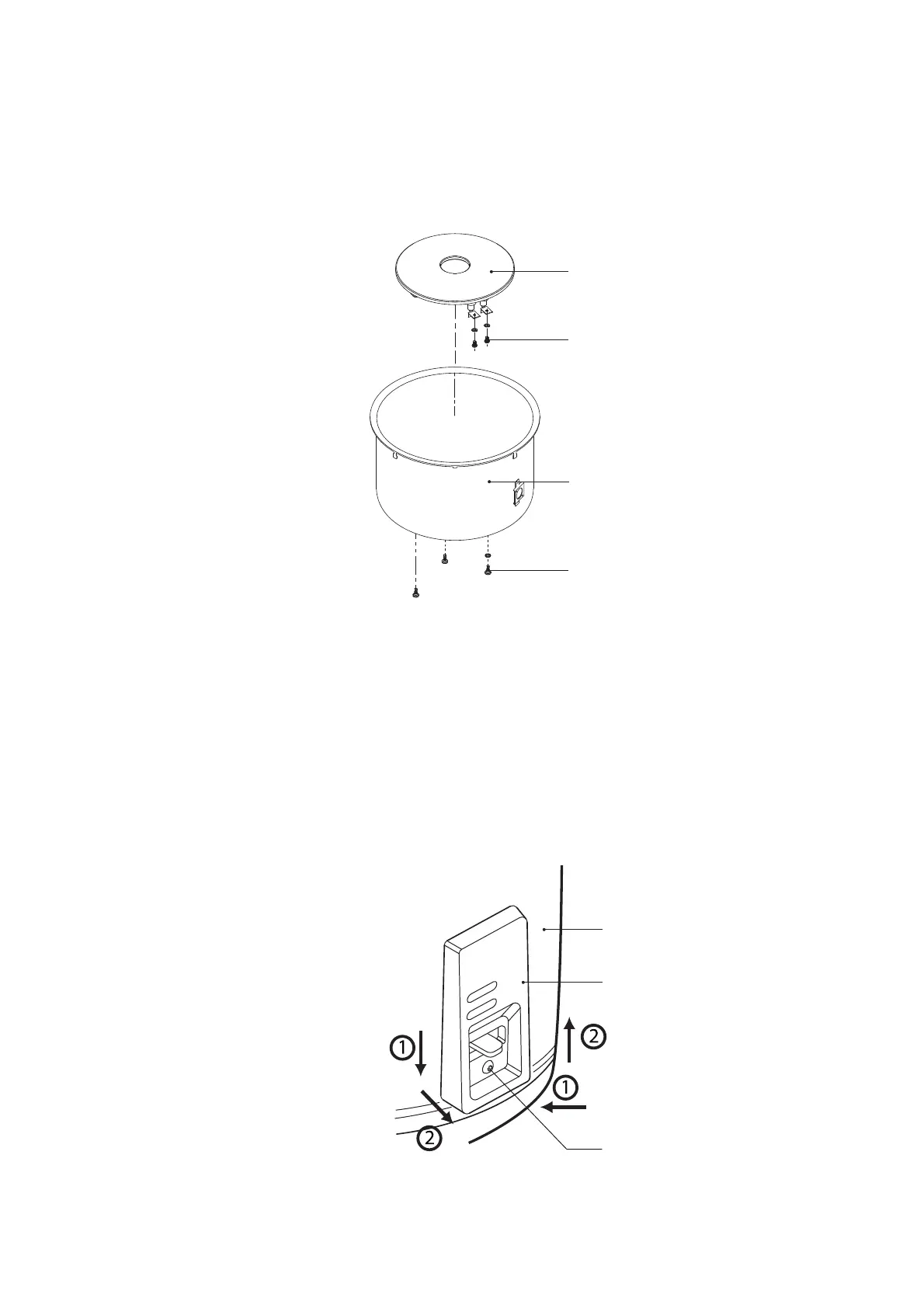

1. Remove the bottom cover in accordance with “REMOVE OF BOTTOM COVER”.
2. Remove 2 screws holding lead wires to the heater plate ass’y.
3. Remove 3 screws holding the heater plate ass’y to the outer pot.
4. Now the heater plate ass’y is free.
Heater plate ass’y
REMOVE OF HEATER PLATE ASSEMBLY
Screw
Outer pot
Control panel
Screw
Assembly
Remove
Body
Screw
Fig. 5
Fig. 6
7
1. Remove the bottom cover in accordance with “REMOVE OF BOTTOM COVER”.
2. Disconnect the lead wire of the control panel from the heater plate and thermostat.
3. Remove the screw holding the control panel.
4. Detach the control panel from the body.
5. Now the control panel assembly is free.
REMOVE OF CONTROL PANEL ASSEMBLY
