LC-13SH1E
LC-15SH1E
» Precautions in handling the LCD panels
1. Work in a clean room (with humidities below 50%).
2. Be sure to wear an anti-static armband.
3. Handle the panels on an electro-conductive mat.
4. Be careful not to fall, shake and shock the panels.

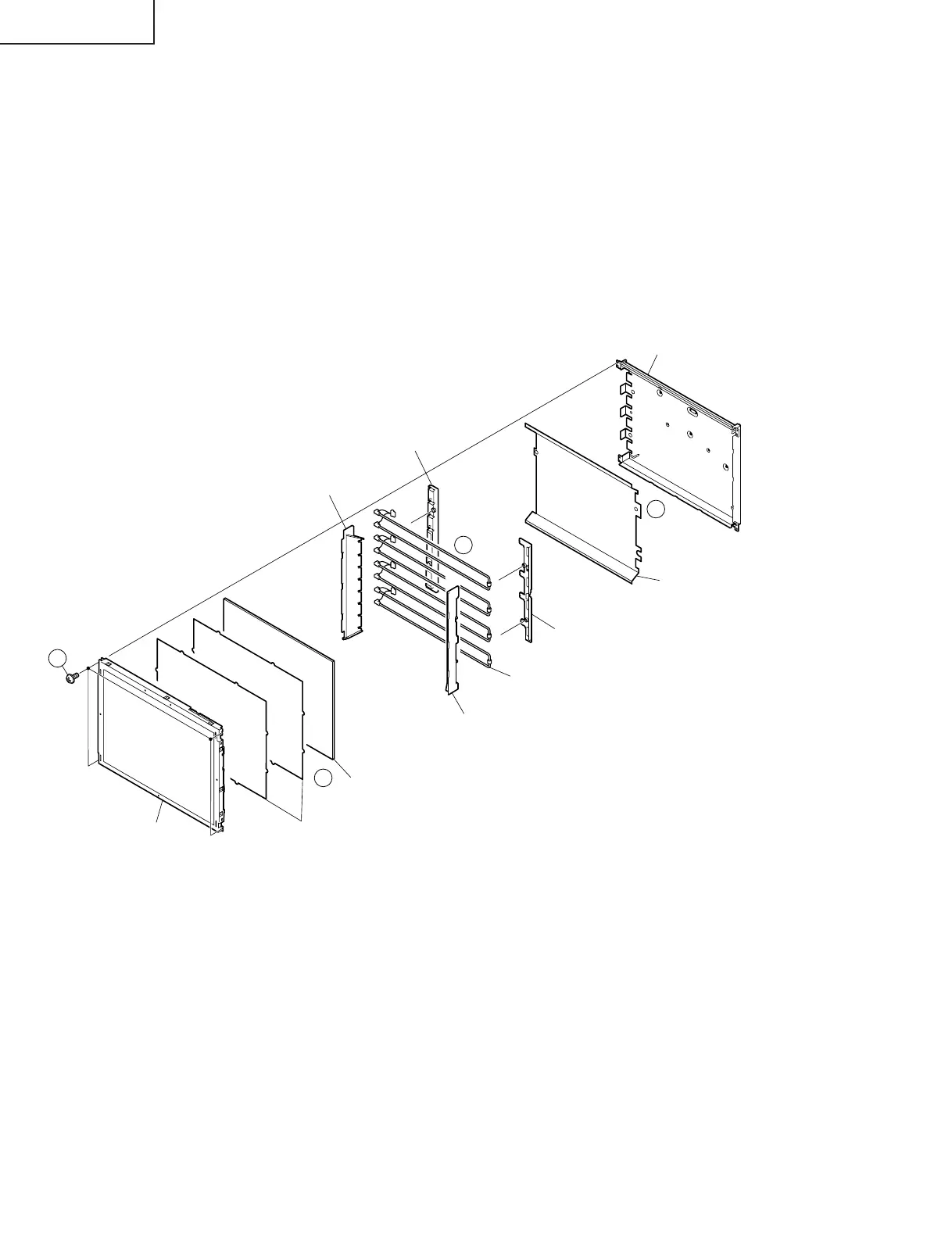

11. Remove the 4 lock screws from the LCD panel and detach the LCD panel.
12. Remove the diffusion sheets and diffusion plate.
13. Detach the lamp holders -R (top), -L (top) and -R (bottom), -L (bottom) from the lamp unit.
14. Detach the reflection sheet from the back shield.
11
12
Diffusion Plate
(PCOVUA046WJZZ:LC-15SH1E)
(PCOVUA047WJZZ:LC-13SH1E)
Diffusion Sheet, x2
(PSHEPA227WJZZ:LC-15SH1E)
(PSHEPA230WJZZ:LC-13SH1E)
Lamp Holder -R (Top)
(LHLDZA424WJKZ:LC-15SH1E)
(LHLDZA433WJKZ:LC-13SH1E)
Lamp Unit, x4
(KLMP-A047WJZZ:LC-15SH1E)
(KLMP-A048WJZZ:LC-13SH1E)
Reflection Sheet
(PSHEPA228WJZZ:LC-15SH1E)
(PSHEPA229WJZZ:LC-13SH1E)
Lamp Holder -L (Bottom)
(LHLDZA426WJKZ:LC-15SH1E)
(LHLDZA435WJKZ:LC-13SH1E)
Lamp Holder -R (Bottom)
(LHLDZA425WJKZ:LC-15SH1E)
(LHLDZA429WJKZ:LC-13SH1E)
Lamp Holder -L (Top)
(LHLDZA423WJKZ:LC-15SH1E)
(LHLDZA434WJKZ:LC-13SH1E)
Back shield
(PSLDMA541WJFW:LC-15SH1E)
(PSLDMA542WJFW:LC-13SH1E)
LCD Panel Unit
13
14
