17
LC-13SH1E
LC-15SH1E

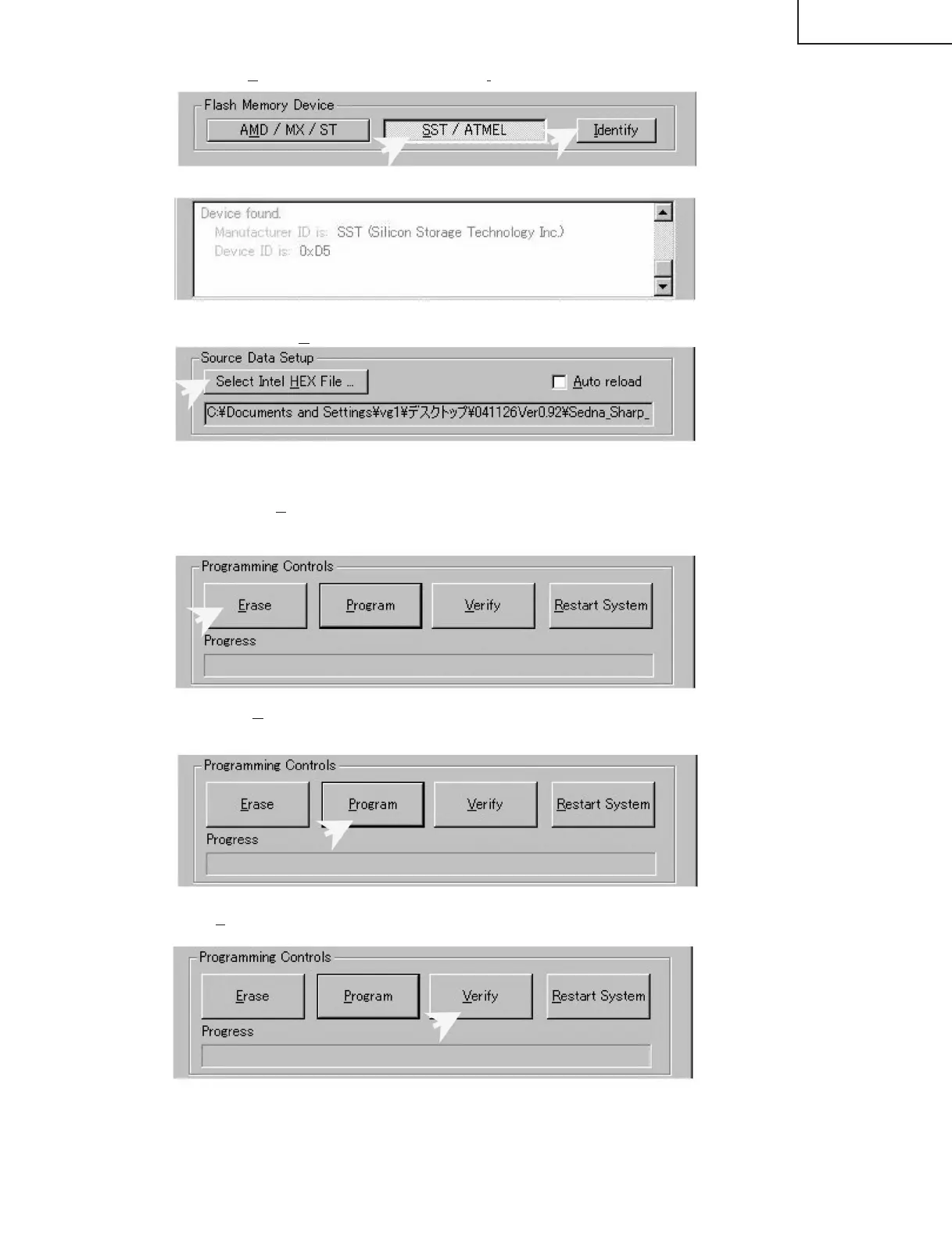

4) First click [SST / ATMEL] and then follow by [Identify] to identify the flash memory.
Confirm the item below in Comment Window.
5) Click [Select Intel HEX File …] to open the source files. The source file name are "Sedna_Sharp****.hex"
Confirm the source file is loaded correctly.
6) Next click the [Erase] to erase all the data in the flash memory. Confirm the erase process is complete
without any error.
7) Then click [Program] to start uploading the source file into the flash memory. After uploading process is
complete, confirm there are no error.
8) Click [Verify] to verify the uploaded data and confirm there are no error.
