LC-13AV6U
11
» Precautions in handling the LCD panels
1. Work in a clean room (with humidities below 50%).
2. Be sure to wear an anti-static armband.
3. Handle the panels on an electro-conductive mat.
4. Be careful not to fall, shake and shock the panels.

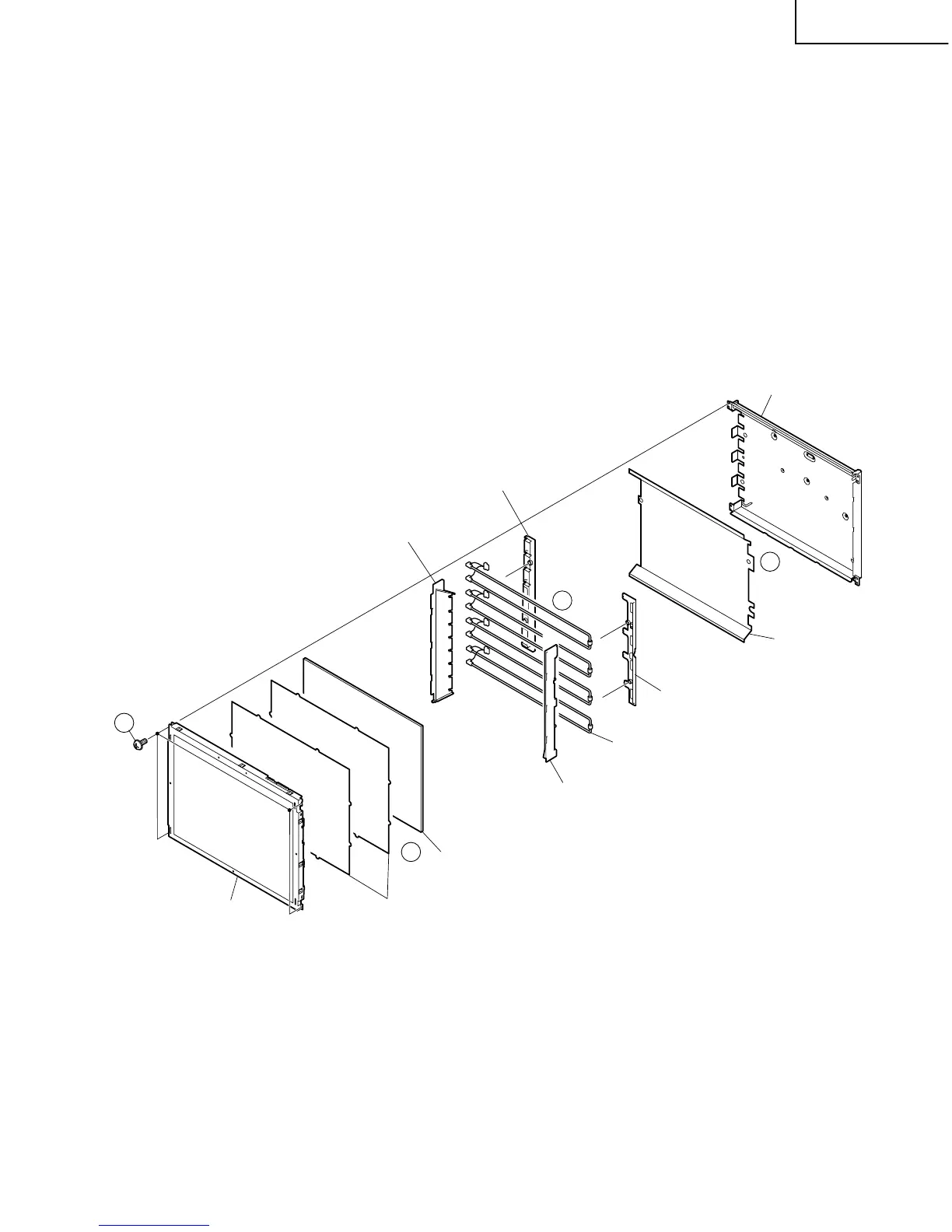

12. Remove the 4 lock screws from the LCD panel and detach the LCD panel.
13. Remove the diffusion sheets and diffusion plate.
14. Detach the lamp holders -R (top), -L (top) and -R (bottom), -L (bottom) from the lamp unit.
15. Detach the reflection sheet from the back shield.
12
13
Diffusion Plate
(PCOVUA047WJZZ)
Diffusion Sheet, x2
(PSHEPA230WJZZ)
Lamp Holder -R (Top)
(LHLDZA433WJKZ)
Lamp Unit, x4
(KLMP-A113WJZZ)
Reflection Sheet
(PSHEPA229WJZZ)
Lamp Holder -L (Bottom)
(LHLDZA435WJKZ)
Lamp Holder -R (Bottom)
(LHLDZA429WJKZ)
Lamp Holder -L (Top)
(LHLDZA434WJKZ)
Back shield
(PSLDMA542WJFW)
LCD Panel Unit
14
15
To Next Page
