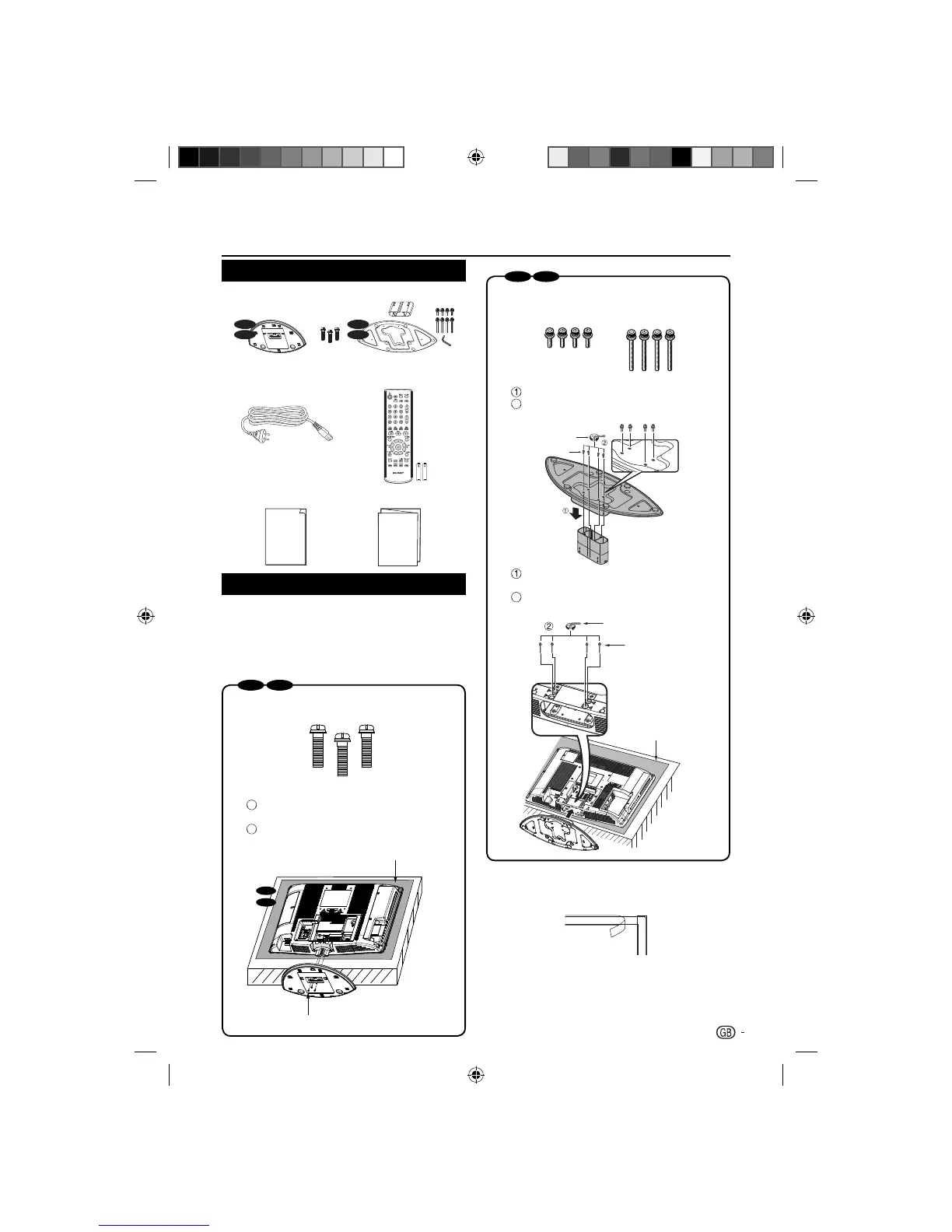

Preparation
Supplied accessories
Operation Manual
Quick Setup Guide
Operation Manual Quick Setup Guide
AC cord (x1)
Product shape varies
in some countries
Remote control (×1)
AA battery (×2)
Stand unit and screws
26”
32”
19”
22”
Mount the TV stand
Before performing work spread cushioning over
the base area to lay the TV on, making sure the
area is completely flat.
This will prevent it from being damaged.
Before attaching (or detaching) stand, unplug the AC
cord from the AC INPUT terminal.
Confirm the 3 screws supplied with the TV.
1.
Screws (X3)
Remove the covering sheet before use.2.
1
Insert the stand into the openings on the
bottom of the TV.
2
Insert and tighten the 3 screws into the 3
holes on the bottom of the stand.
Soft cushion
Screw
19”
22”
Confirm the 8 screws supplied with the TV.1.
Short screws (X4)
(used in step 2)
Long screws (X4)
(used in step 3)
Remove the covering sheet before use.2.
Attach the base to the post.
2
Attach the base to the 4 screws into the 4
holes on the bottom of the base.
Hex key
Screw
3. Insert the stand into the openings on the
bottom of the TV.
2
Insert and tighten the 4 screws into the 4
holes on the rear of the TV.
Hex key
Screw
Soft cushion
NOTE
For protection, sheets are covering the product. Please •
remove these sheets before use.
To detach the TV stand, perform the steps in reverse •
order.
19” 22”
26” 32”
7
