LC-19LE430E/UK, LC-22LE430E/UK, LC-26LE430E/UK, LC-32LE430E/UK
19

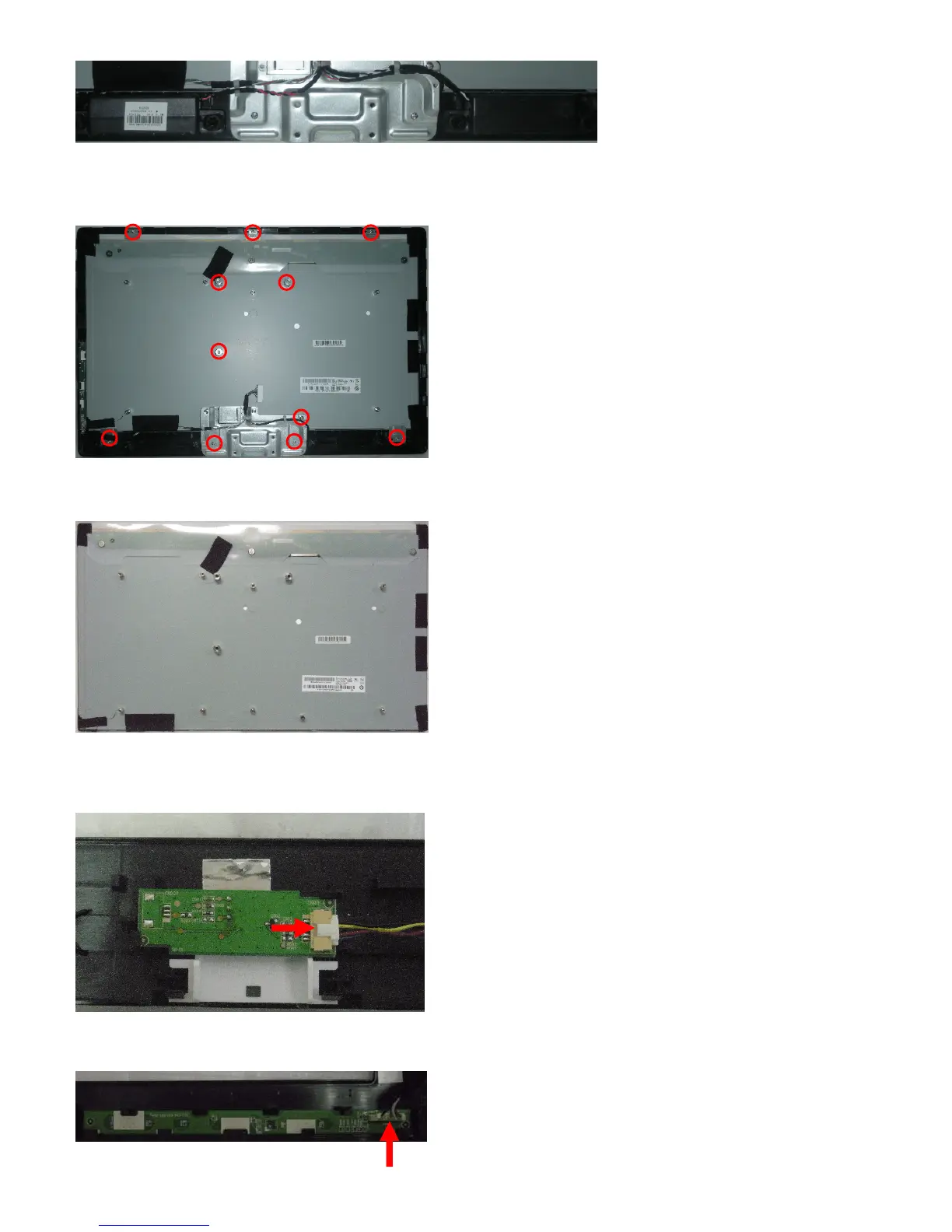

3. Release the speaker cable from its clamp, pull up and remove the speaker as Fig.10.
Fig.10
Step 4. Remove the Bracket and Bezel.
1. Remove the 11 screws. Detach the Bracket and panel as Fig.11.
Fig.11
2. Remove the panel from the bezel as Fig.12.
Fig.12
Step 5. Remove the IR and Key board.
1. Disconnect 1 cable. Detach the IR board as Fig.16.
Fig.16
2. Disconnect 1 cable. Detach the Key board as Fig.17.
Fig.17
