LC-19LE430E/UK, LC-22LE430E/UK, LC-26LE430E/UK, LC-32LE430E/UK
91

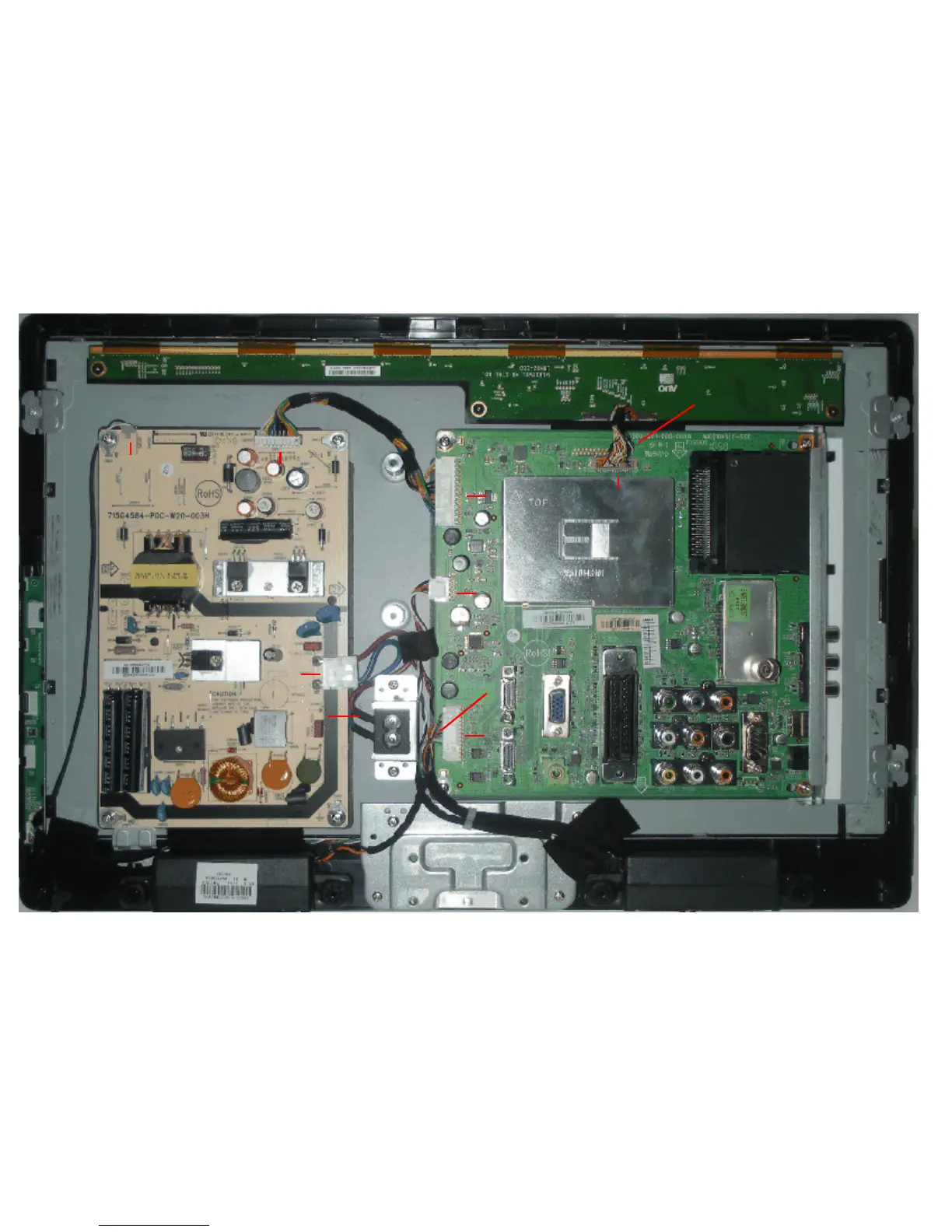

[3] 19" WIRING DIAGRAM(LC-19LE430E/UK)
MAIN BOARD POWER BOARD
CN701
CN8502
CN408
CN402
095G801830D930
095G801413D978
095G8021 4D 8
CN9102
CN601
CN9901
