LC-19LE430E/UK, LC-22LE430E/UK, LC-26LE430E/UK, LC-32LE430E/UK
29
Fig.10
2. Release the speaker cable from its clamp, pull up and remove the speaker as Fig.11.
Fig.11

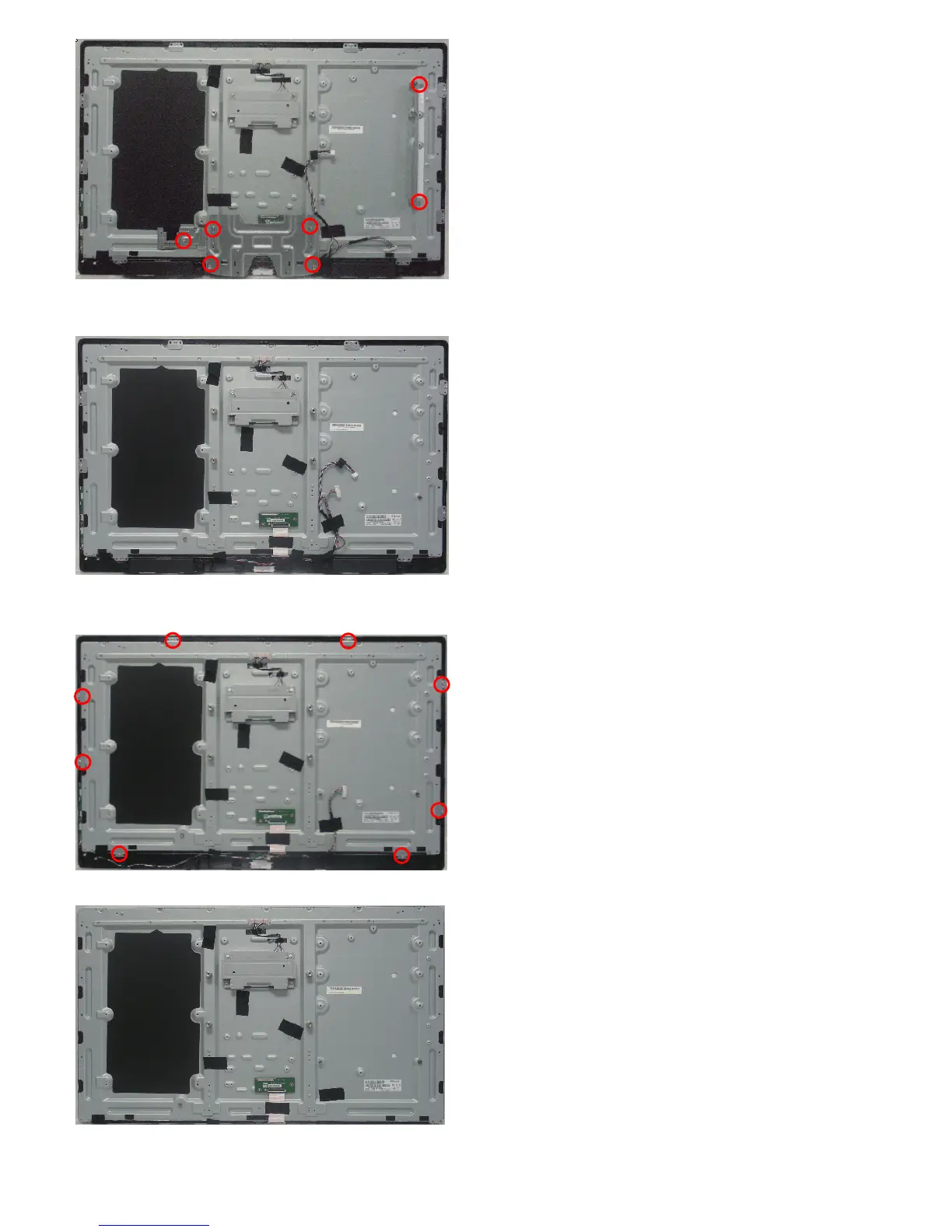

3. Remove the 8 screws to detach the panel bracket from the bezel.Then take out of the panel from the bezel as Fig.12.
Panel:
Fig.12
Step 5. Remove the IR and Key board.
1. Disconnect 1 cable, then release the clips. Detach the IR board as Fig.13.
To Next Page
