2.4. U602 (TAS5717L 10W HTQFP-48)

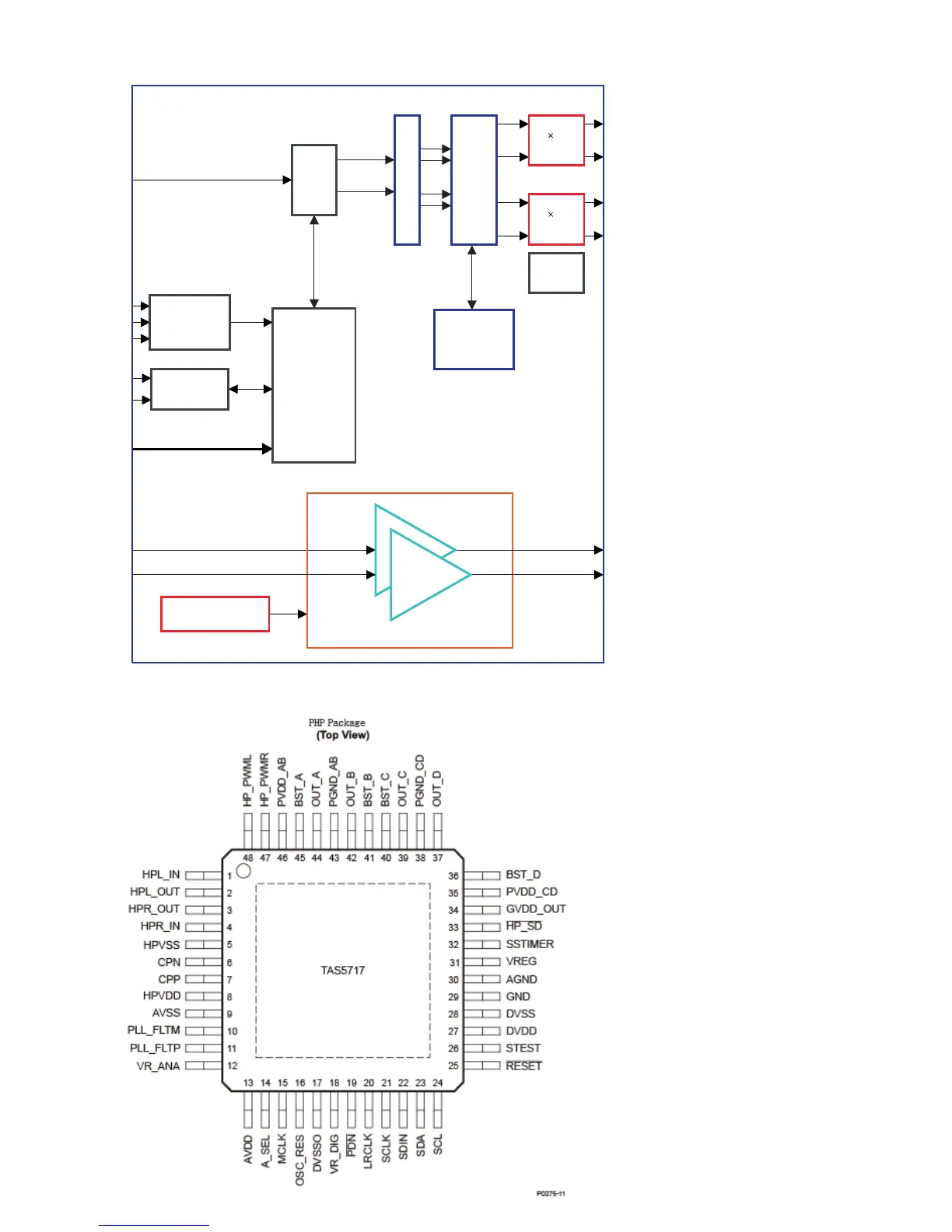

2.4.1 Block Diagram
2.4.2 Pin Connections and short description
SDIN
MCLK
SCLK
LRCLK
Serial
Audio
Port
Protection
Logic
Click and Pop
Control
SDA
SCL
4
Order
th
Noise
Shaper
and
PWM
S
R
C
Sample Rate
Autodetect
and PLL
Serial
Control
Microcontroller
Based
System
Control
Terminal Control
OUT_A
OUT_B
2HB
FET Out
OUT_C
OUT_D
2HB
FET Out
B0262-10
Headphone Amp/Line Driver
Charge Pump
HPL_IN
HPL_OUT
HPR_IN
HPR_OUT
