Preparation
PC
HDMI equipment
PC compatibility chart
It is necessary to set the PC correctly to display XGA and WXGA signal. Refer to page 41 to set PC input signals.
DDC is a registered trademark of Video Electronics Standards Association.
Power Management is a registered trademark of Sun Microsystems, Inc.
VGA and XGA are registered trademarks of International Business Machines Corp.
PC Horizontal Frequency VESA StandardResolution Vertical Frequency

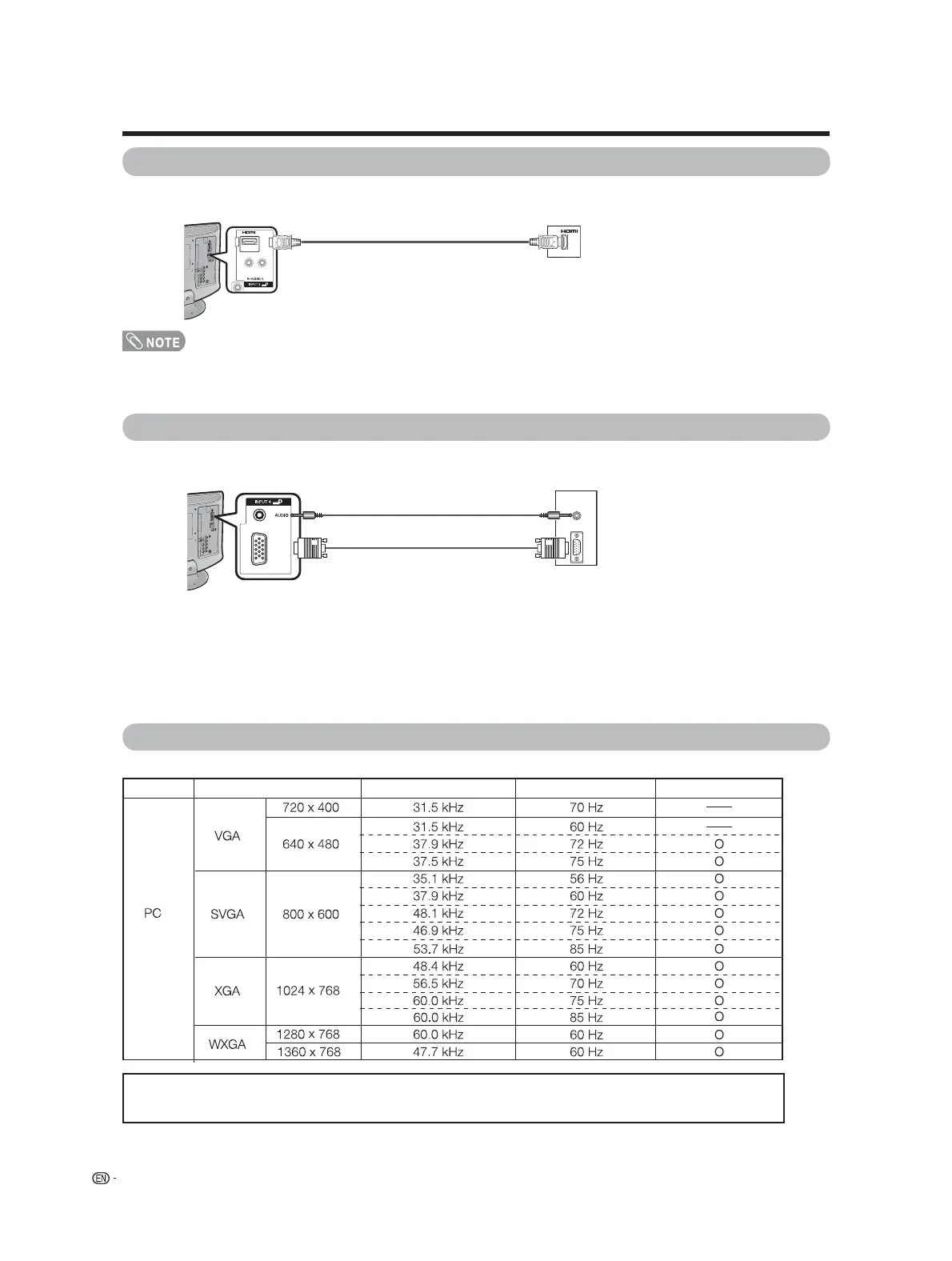

Connecting a PC
When connecting to a PC with an analog RGB terminal. (INPUT 4)
RGB cable
(commercially available)
• When using an HDMI-DVI conversion cable, input the audio signal to AUDIO terminal of INPUT 3.
• When receiving an incompatible signal, such as 1080p, the message below appears without the image on the screen.
For an incompatible video signal: “Not compatible with this signal.”
HDMI-certifi ed cable
(commercially available)
Connecting HDMI equipment
You can use the INPUT 3 terminal when connecting HDMI equipment.
Ø 3.5 mm stereo minijack cable
(commercially available)
