Part Names of Main Unit
Controls
A
• INPUT, CH ( )/( ), VOL (–)/(+) and MENU on the main unit have the same functions as the same buttons on the remote control.
Fundamentally, this operation manual provides a description based on operation using the remote control.
Remote sensor
SLEEP TIMER indicator
The SLEEP TIMER indicator lights up red when the SLEEP TIMER
is set to “ON”. (See page 29.)
POWER indicator
The POWER indicator lights up green when the power is on, and
red when in the standby mode (the indicator will not light up when
the main power is off).

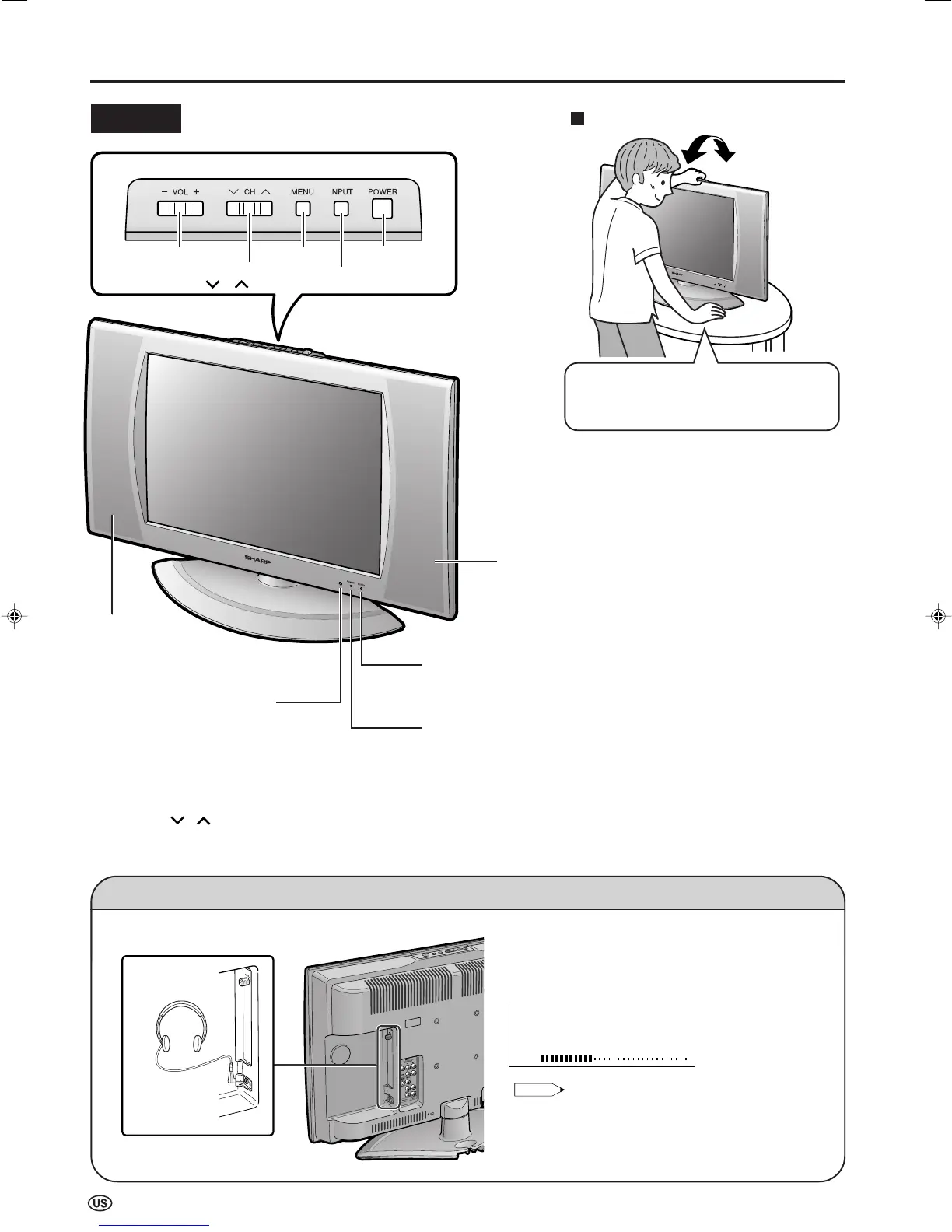

To change the vertical angle of the LCD TV
set, tilt the screen up to 2.5 degrees forwards
or 10 degrees backwards. Please adjust the
angle so that the LCD TV set can be
watched most comfortably.
Upper control panel
Speaker
Tilt the display by holding the upper
part while securely holding down the
stand with your other hand.
How to adjust the angle
Speaker
Listening with Headphones
Plug the headphone mini-plug into the headphone jack
located on the side of the LCD TV set.
Adjust the sound volume using VOL (+)/(–) on the remote
control.
• Headphones are not included in the supplied accessories.
• No sound is heard from the main unit speakers when a
headphone mini-plug is connected into the headphone jack.
• Do not set the volume at a high level. Hearing experts
advise against extended listening at high volume levels.
POWER
On-screen dispiay
INPUT
CH (Channel)
( )/( )
VOL (Volume)
(–)/(+)
MENU
