32
ANote:
• If your VCR (or other external devices) has an S-video terminal, S-VIDEO connection is recommended. (Use an S-video cable.)
• When you connect external devices to both S-VIDEO and VIDEO terminals (and if you select “INPUT2”), you can only view pictures from
the S-VIDEO terminal.
• You cannot view multiple or synthesized pictures by connecting two or more external devices. When connecting an external device, use
care to connect the video and audio cables to the corresponding terminals.
• Only when 480I or 480P signal is received, picture can be displayed.

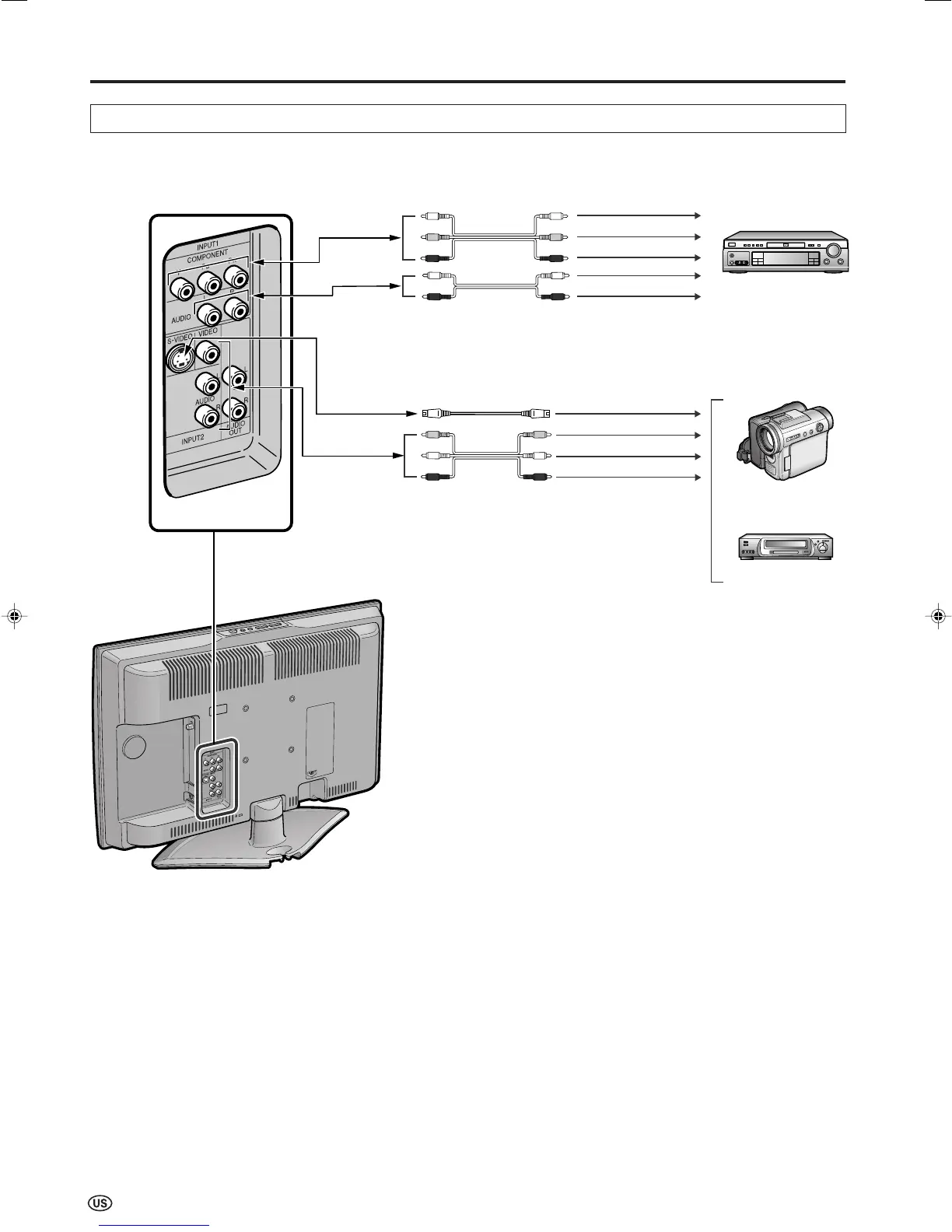

Connecting a VCR, DVD Player or a Camcorder to INPUT1/INPUT2
Camcorder
VCR
Video
Audio (L)
Audio (R)
S-Video
DVD Player
Y
P
B
P
R
Audio (L)
Audio (R)
Connecting External Devices (Continued)
Component cable
(commercially available)
Audio cable
(commercially available)
Audio/Video cable
(commercially available)
S-Video cable
(commercially available)
LC-20SH4U_E_P31-37.p65 04.12.9, 4:22 PM32
