31
ANote:
• PC connection is not possible.
• For the cable, use a commercially available audio/video cable.
• Only connect audio/video signals to INPUT2 terminal. Connecting other signals may result in a malfunction.
• INPUT2 has 2 video input terminals: VIDEO and S-VIDEO. When you connect external devices to both terminals, you can only view
pictures from the S-VIDEO terminal. To view the picture from the VIDEO terminal, do not connect any external device to the S-VIDEO
terminal.
• For more information about external device connections, see the manuals of your external devices.

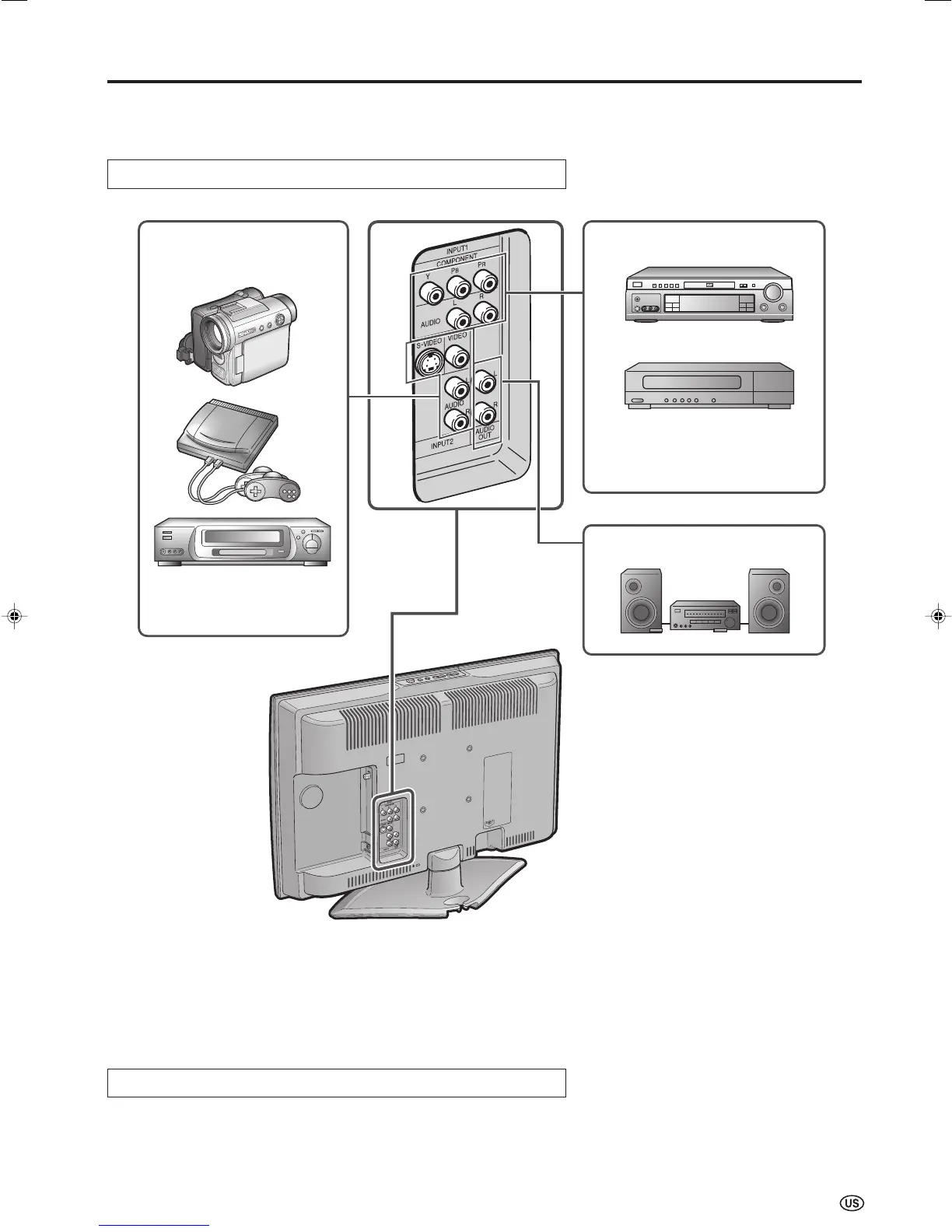

Example of External Devices that can be Connected
You can enjoy picture and sound by connecting a VCR or a home video game system to the terminals located on the rear of
the main unit.
When connecting an external device, turn off the POWER of the main unit first to prevent any possible damage.
Connecting External Devices
<Example>
• DVD Player, etc.
• Digital TV tuner
To INPUT1 terminal
* If your external device has a
component terminal, COMPONENT
connection is recommended
(you can view high-quality pictures).
To INPUT2 terminal
<Example>
• Camcorder
• Home video game system
• VCR
* If your external device has an
S-video terminal, S-VIDEO
connection is recommended.
<Example>
• Audio amplifier
To AUDIO OUT terminal
Outputting Audio (Audio Output)
You can output audio signals from the TV set through the AUDIO OUT terminal.
• The AUDIO OUT terminal has 2 output modes (see page 20).
LC-20SH4U_E_P31-37.p65 04.12.9, 4:22 PM31
To Next Page
