Sharp LC-24LE170I User Manual

LC-24LE170I
3 – 1
LC-90LE740X
Service Manual

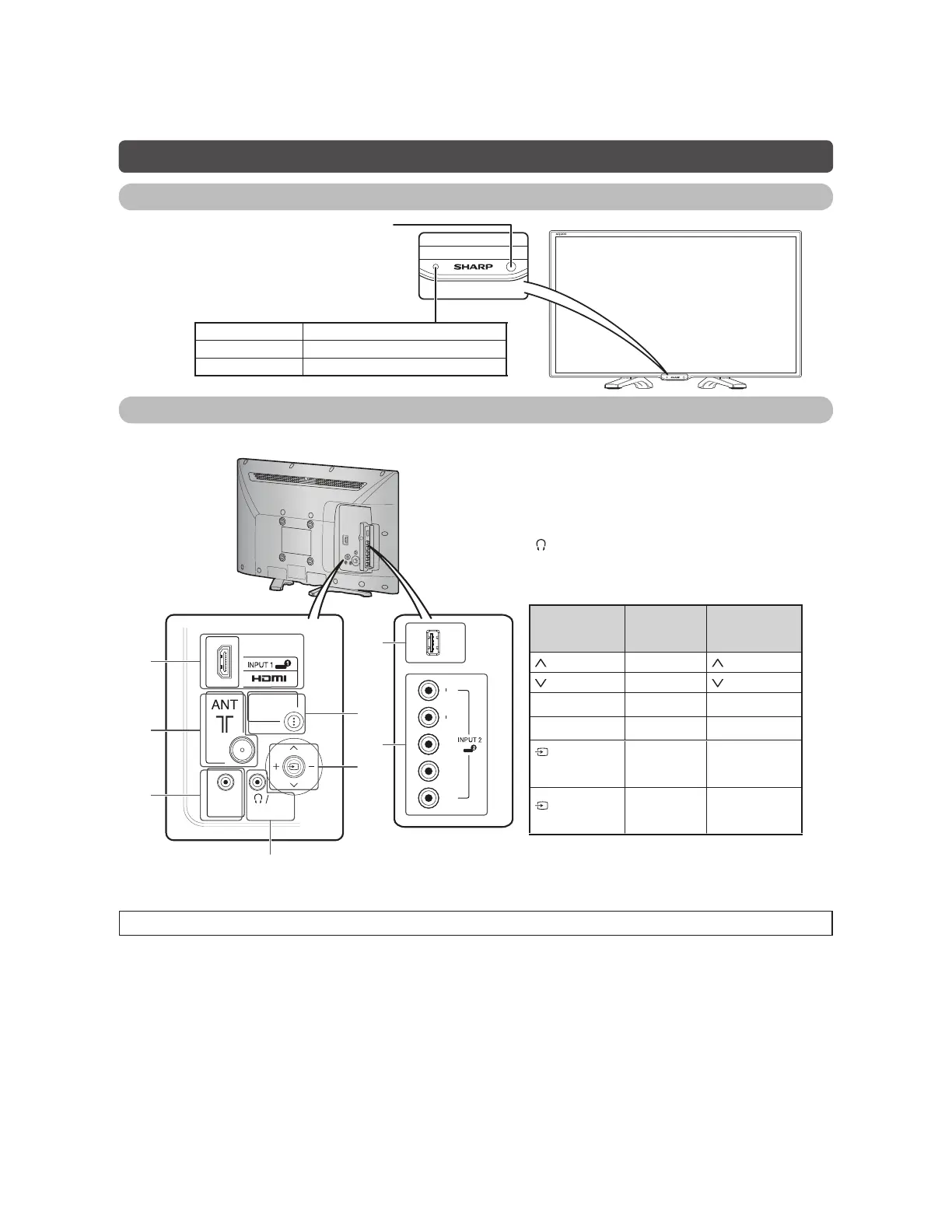

CHAPTER 3. OPERATION MANUAL
[1] OPERATION MANUAL
Remote control sensor
Part names
TV (Front)
POWER indicator
Light off Power off.
Lighted (Red) The TV is in standby mode.
Lighted (Green) The TV is on.
TV (Rear)
* Usually do not connect anything to this terminal as it reserved only for service personnel.
•
The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
SERVICE
ONLY
AUDIO (L/R)
POWER
3
7
8
4
5
6
JOG-KEY
BASIC
FUNCTION
FUNCTION
DURING MENU
CH UP *
CH DOWN *
+
VOL UP
+
*
–
VOL DOWN
–
*
(BELOW 1 SEC) INPUT
SELECT/
ENTER
(1 SEC AND
OVER)
MENU
RETURN/
MENU EXIT
* Tombol ulangi
1 SERVICE ONLY terminal *
2 INPUT 2 terminal
(COMPONENT/AV INPUT)
3 INPUT 1 (HDMI) terminal
4 Antenna input terminal
5 SERVICE ONLY terminal *
6 AUDIO output (R/L) terminal
7 POWER (on/off) button
8 Keypad control
1
2
PR(CR) PR(CB) VIDEO/ Y
SERVICE
ONLY
L AUDIO R
