Sharp LC-26AD22U

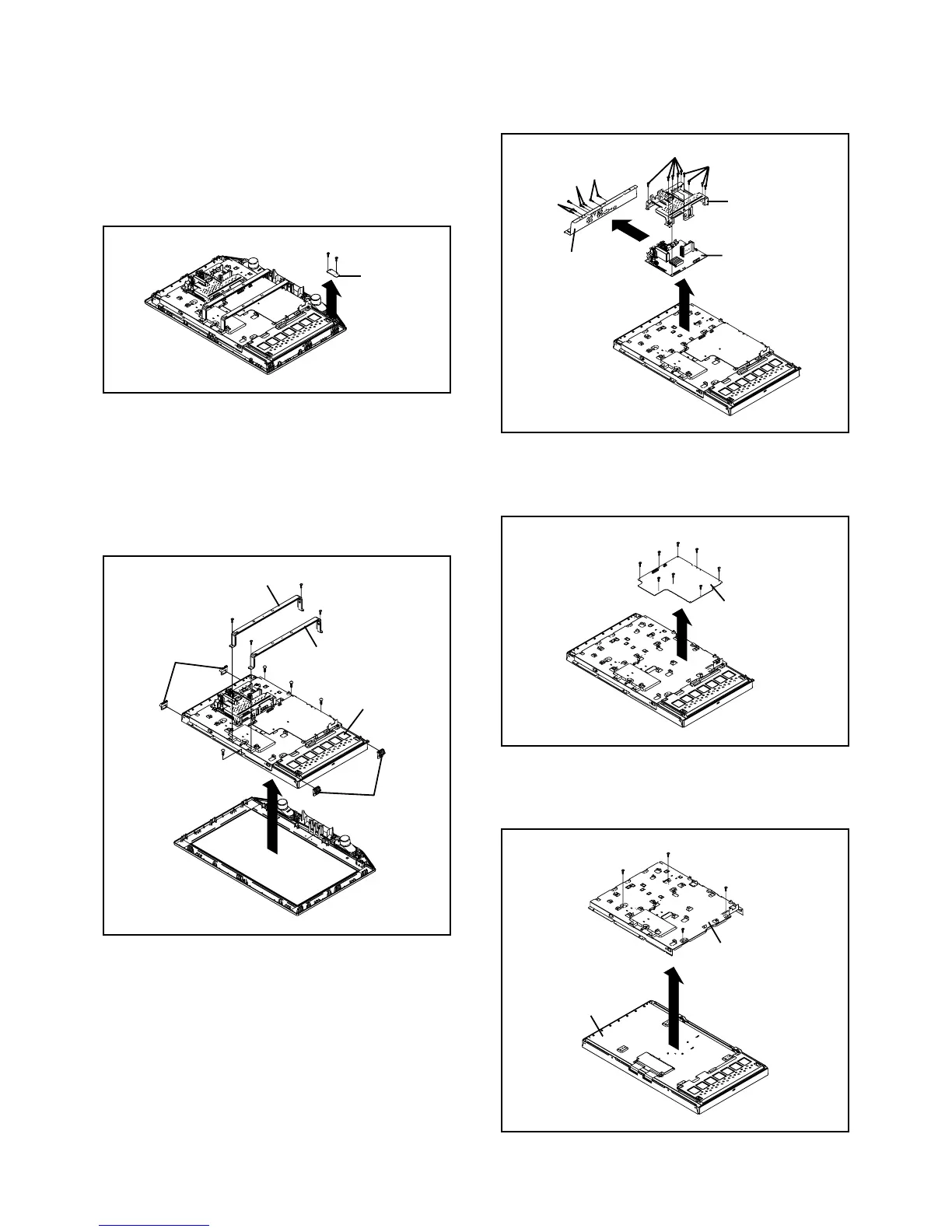

DISASSEMBLY INSTRUCTIONS
B1-2
Fig. 1-6
1-6: DIGITAL PCB (Refer to Fig. 1-6)
1.
2.
3.
4.
5.
6.
7.
Disconnect the following connector:
(CP3401).
Remove the 2 screws 1.
Remove the 4 screws 2.
Remove the screw 3.
Remove the Plate Jack in the direction of arrow (A).
Remove the 9 screws 4.
Remove the Digital PCB and Shield Digital in the
direction of arrow (B).
1-7: POWER PCB (Refer to Fig. 1-7)
1.
2.
Remove the 8 screws 1.
Remove the Power PCB in the direction of arrow.
Fig. 1-7
(B)
(A)
1
2
Digital PCB
Power PCB
1
1-8: COVER LCD (Refer to Fig. 1-8)
1.
2.
Remove the 4 screws 1.
Remove the Cover LCD in the direction of arrow.
1
Cover LCD
Fig. 1-8
2
3
Plate Jack
Shield Digital
4
4
1
1
1
1
1
1
1
1
1
1
LCD Panel
1-5: LCD BLOCK (Refer to Fig. 1-5)
1.
2.
3.
4.
5.
6.
Disconnect the following connectors:
(CP406, CP1001 and CP2407).
Remove the Holder Panel.
Remove the 4 screws 1.
Remove the LCD Block in the direction of arrow (A).
Remove the 4 screws 2.
Remove the Angle Main.
Fig. 1-5
1-4: REMOCON PCB (Refer to Fig. 1-4)
1.
2.
3.
Disconnect the following connector:
(CP106).
Remove the 2 screws 1.
Remove the Remocon PCB in the direction of arrow.
Fig. 1-4
Remocon PCB
1
1
1
Holder Panel
1
1
1
LCD Block
Angle Main
2
2
(A)
2
2
Angle Main
Holder Panel
