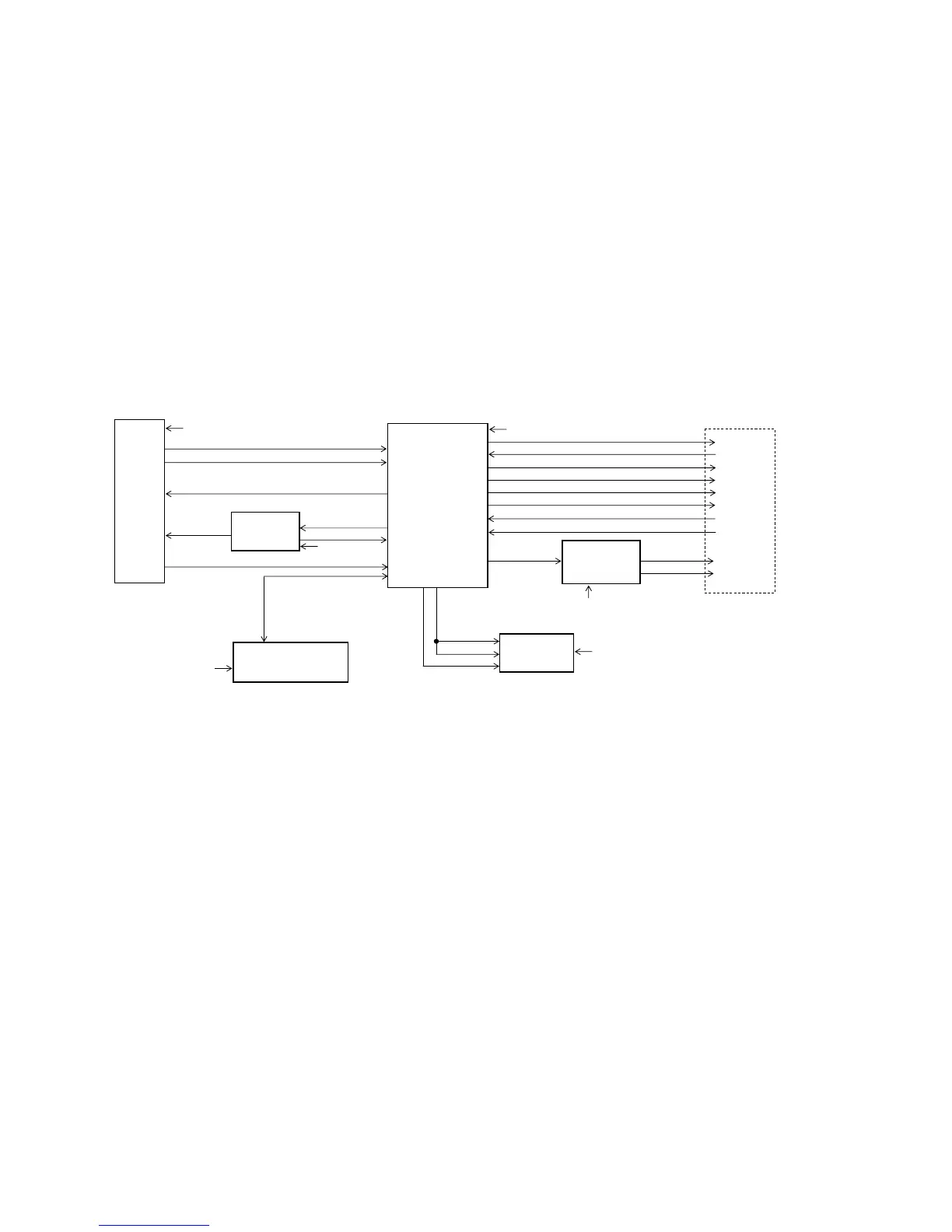

DVD BLOCK DIAGRAM
MPEG/MICON/DSP/RF_AMP
IC4001
ZR36966ELCG-D
OPU
SPINDLE/
STEPING
/
SLED
MOTOR
FLASH 16M
IC4007
SST39VF1601-70-4C-EKE
RF, A, B, C, D, E, F
HOME, TIN_SW, TOUT_SW
DVD LOADER
DSM2
DVD_CD, DVD_LD, CD_LD
Motor Drive
IC2301
LA6565VR-TLM-E
TR+/-, FO+/-,
MOT_LD+/-,
MOT_SLED+/-
MOT_SPDL+/-
SPINDLE/SLED/
FOCUS/TRACK_PWM,
TRAY_CLOSE/OPEN
B
C, D
HA0~A19,
HD0~D15,
MEMCS0, RD, WR
SD_A0~A11
SD_D0~D15
C
C
LCD BLOCK
RX
START_SW
SPDIF
DVD RESET
AUDIO L
AUDIO R
AUDIO AMP
IC8501
NJM4565M
DVD Y
DVD C
APWM_L+/-,
APWM_R+/-
A---P.CON+12V
B---P.CON+6V
C---P.CON+3.3V
D---P.CON+1.8V
E---P.CON+A5V
E
SPDL_SENS+/-
MD_DVD, MD_CD
TX
DVD POWER
64M SDRAM
IC4005
M12L64164A-7TG
A
RAMDQM, CLK, CKE, WE#,
CAS#,
F-1 F-2
