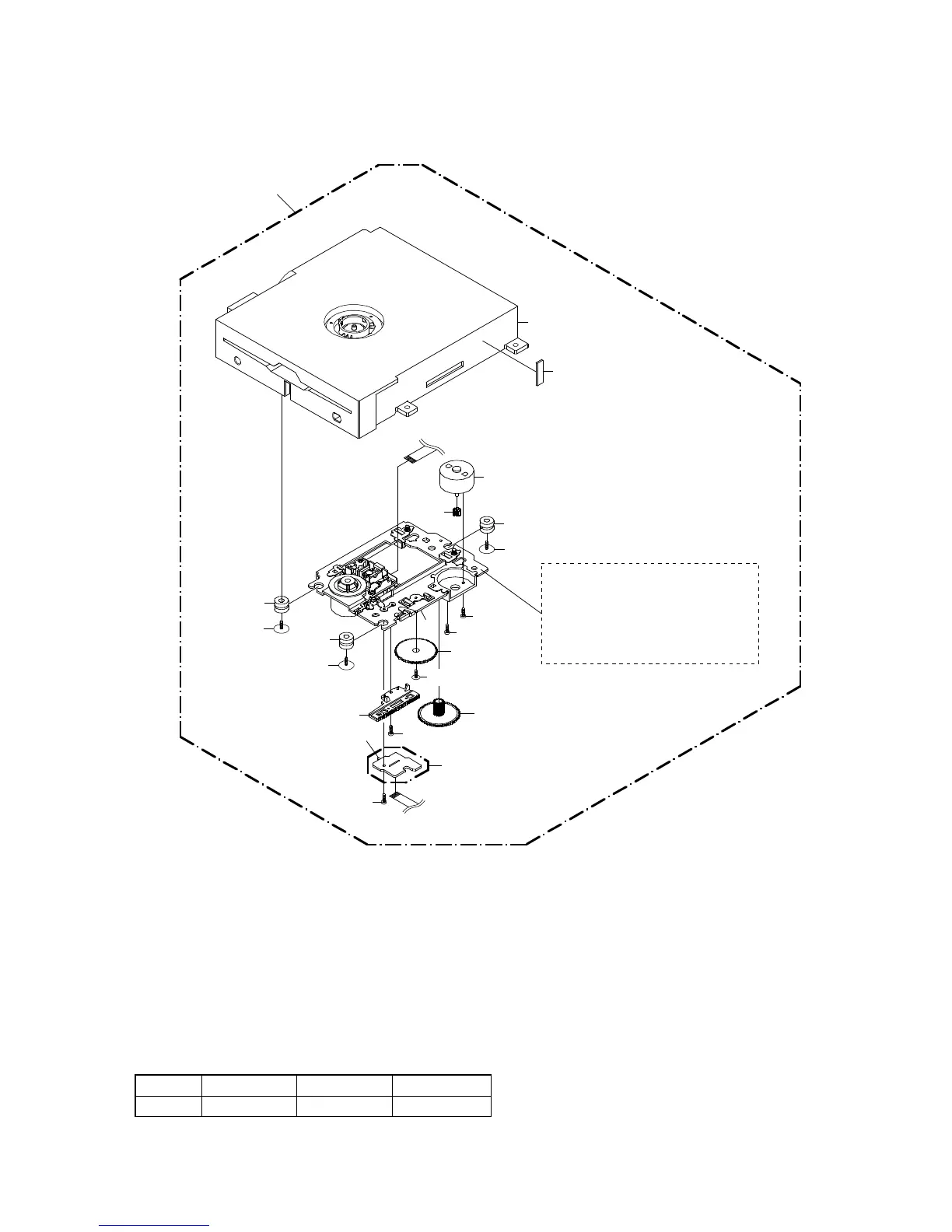

DVD DECK EXPLODED VIEW
J2-1
Applying positions AA for the grease are
displayed for this section.
Check if the correct grease is applied for each
position.
NOTE:
CLASS
MARK
GREASE G-555G
AA
PART NO.
Y315061000
PART NAME
Do not replace the parts. Because,
minute adjustments are needed if
this condition is disassembled
further more.
If the repair is needed, replace the
DVD MECHA ASS'Y.
PCB640
(SW PCB ASS'Y)
701
702
702
607
604
CD2001
603
M2602
606
602
704
703
605
SW2
705
CD2301
AA
703
703
605
601
608
600
