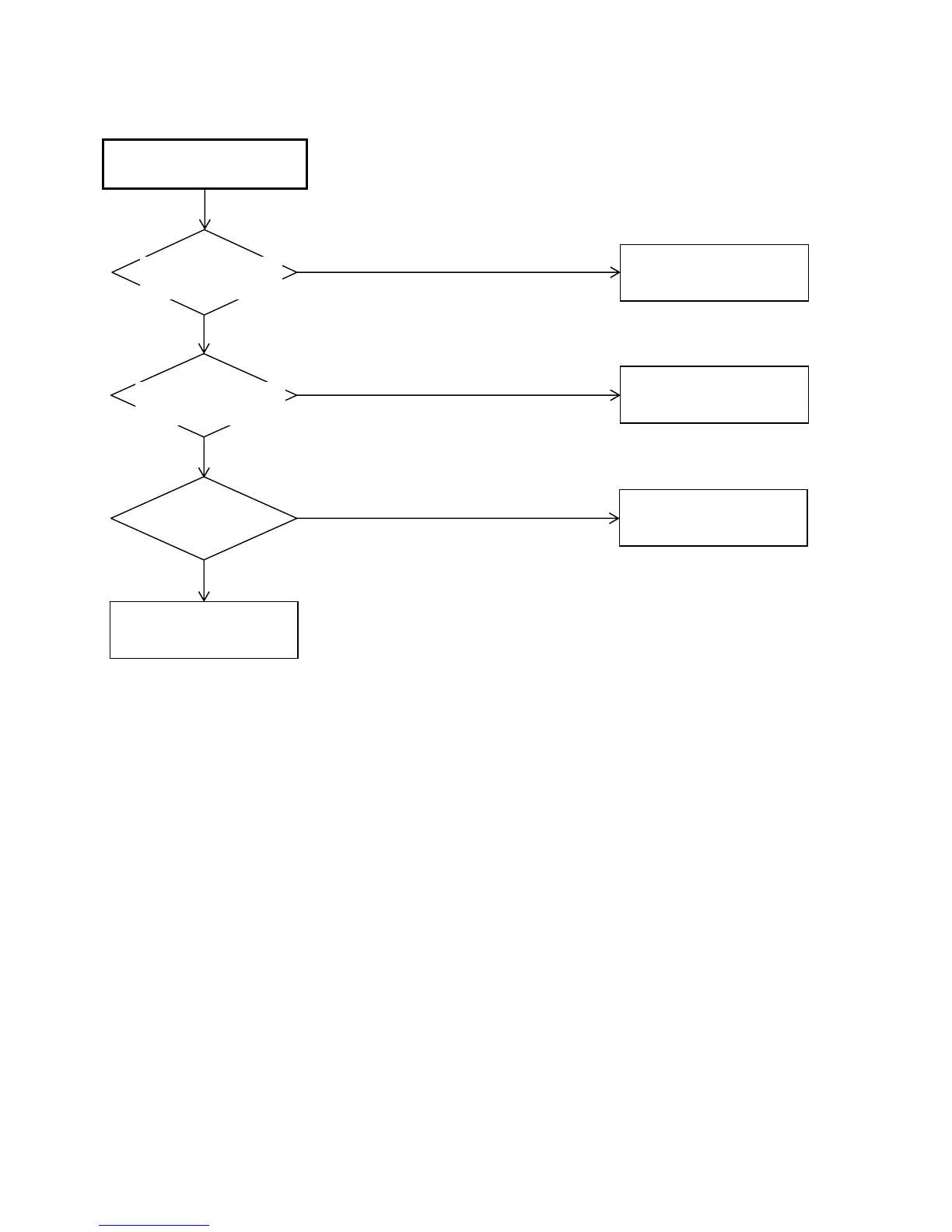

TROUBLESHOOTING GUIDE
Is there signal at pins
33 and 35 of IC701?
Is there signal at pins
A9 and A13 of IC2401?
Is there signal at
C2528 and C2532?
Check C2528, C2532
and peripheral circuit.
Check IC701 and
peripheral circuit.
Check IC2401 and
peripheral circuit.
Check IC2401 and
peripheral circuit.
No
Yes
THE PICTURE DOES NOT
APPEAR (2)
No
No
Yes
Yes
E-4
32
34
Table of Contents
Table of Contents
1
Caution
2
Important Safeguards
3
When Replacing DVD Deck
6
Disc Removal Method at no Power Supply
7
Parental Control - Rating Level
7
ABOUT LEAD FREE SOLDER (Pbf)
8
General Specifications
9
Disassembly Instructions
16
Removal of DVD Deck Parts
18
Service Mode List
22
Servicing Fixtures and Tools
23
Re-Write for DVD Firmware
23
Re-Write for Digital Soft Firmware
24
When Replacing Eeprom (Memory) IC
25
Electrical Adjustments
26
Troubleshooting Guide
30
DVD Block Diagram
40
Power Block Diagram
41
D-1~D
54
G-1~G
56
H-1~H
67
Waveforms
68
Mechanical Exploded Views
70
DVD Deck Exploded View
73
Mechanical Replacement Parts List
74
DVD Deck Replacement Parts List
75
