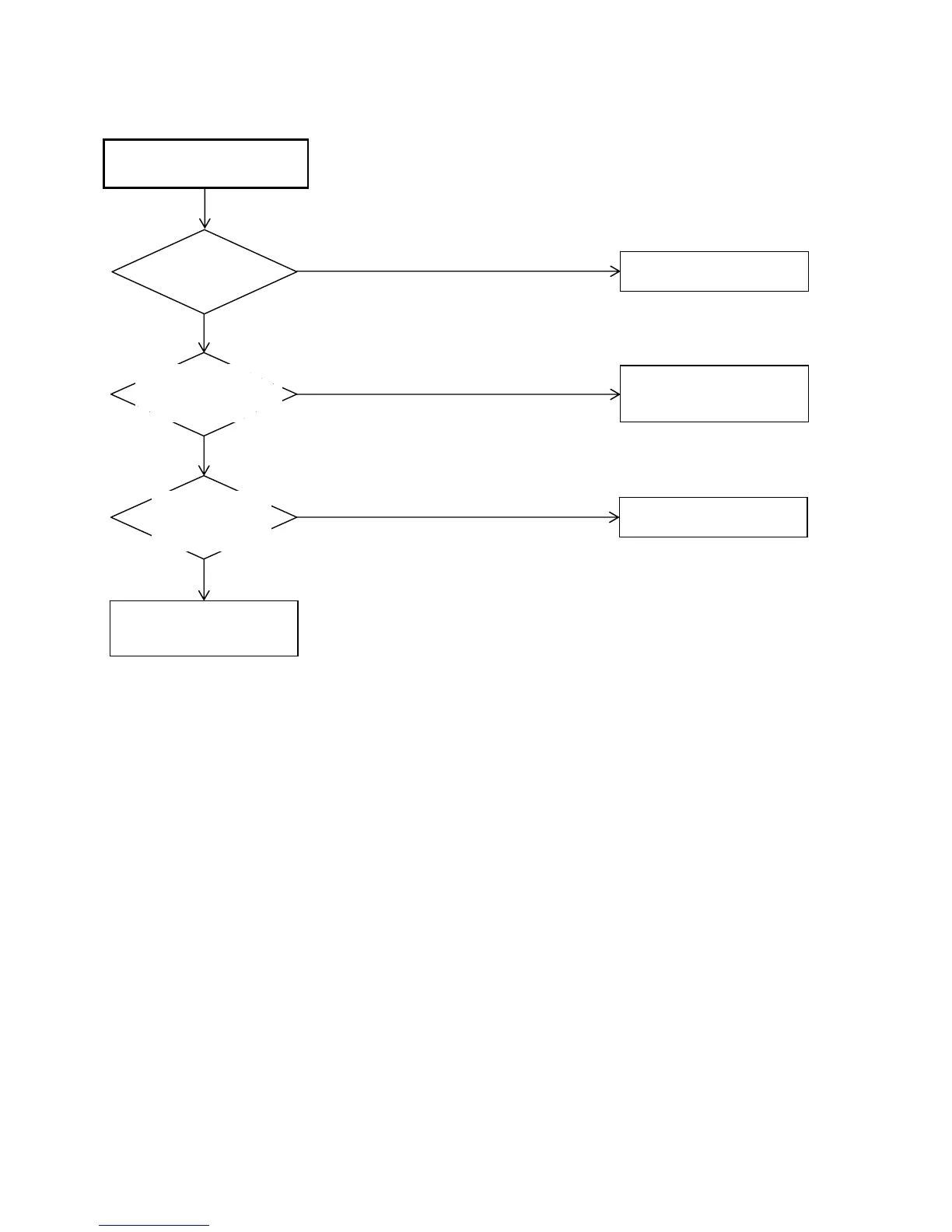

TROUBLESHOOTING GUIDE
(DVD SECTION)
DOES NOT DISPLAY DVD
Does this display
logo picture?
Does this have signal
at pins 149 and 151 of
IC4001?
Does IC4001 gets
P.CON+3.3V and
P.CON+1.8V?
Check P.CON+3.3V and
P.CON+1.8V line.
Check pins 12 and 16 of
CP8501 and peripheral circuit.
Yes
No
Yes
No
Change IC4001.
Check the disc.
Yes
No
E-6
34
36
Table of Contents
Table of Contents
1
Caution
2
Important Safeguards
3
When Replacing DVD Deck
6
Disc Removal Method at no Power Supply
7
Parental Control - Rating Level
7
ABOUT LEAD FREE SOLDER (Pbf)
8
General Specifications
9
Disassembly Instructions
16
Removal of DVD Deck Parts
18
Service Mode List
22
Servicing Fixtures and Tools
23
Re-Write for DVD Firmware
23
Re-Write for Digital Soft Firmware
24
When Replacing Eeprom (Memory) IC
25
Electrical Adjustments
26
Troubleshooting Guide
30
DVD Block Diagram
40
Power Block Diagram
41
D-1~D
54
G-1~G
56
H-1~H
67
Waveforms
68
Mechanical Exploded Views
70
DVD Deck Exploded View
73
Mechanical Replacement Parts List
74
DVD Deck Replacement Parts List
75
