Sharp LC-26AF3 M/H/X User Manual

8
LC-26AF3 M/H/X
LC-32AF3 M/H/X
LC-37AF3 M/H/X
L-AUDIO-R Y P
B
P
R
(C
B
)(C
R
)
HDTV tuner
Component cable
(commercially
available)

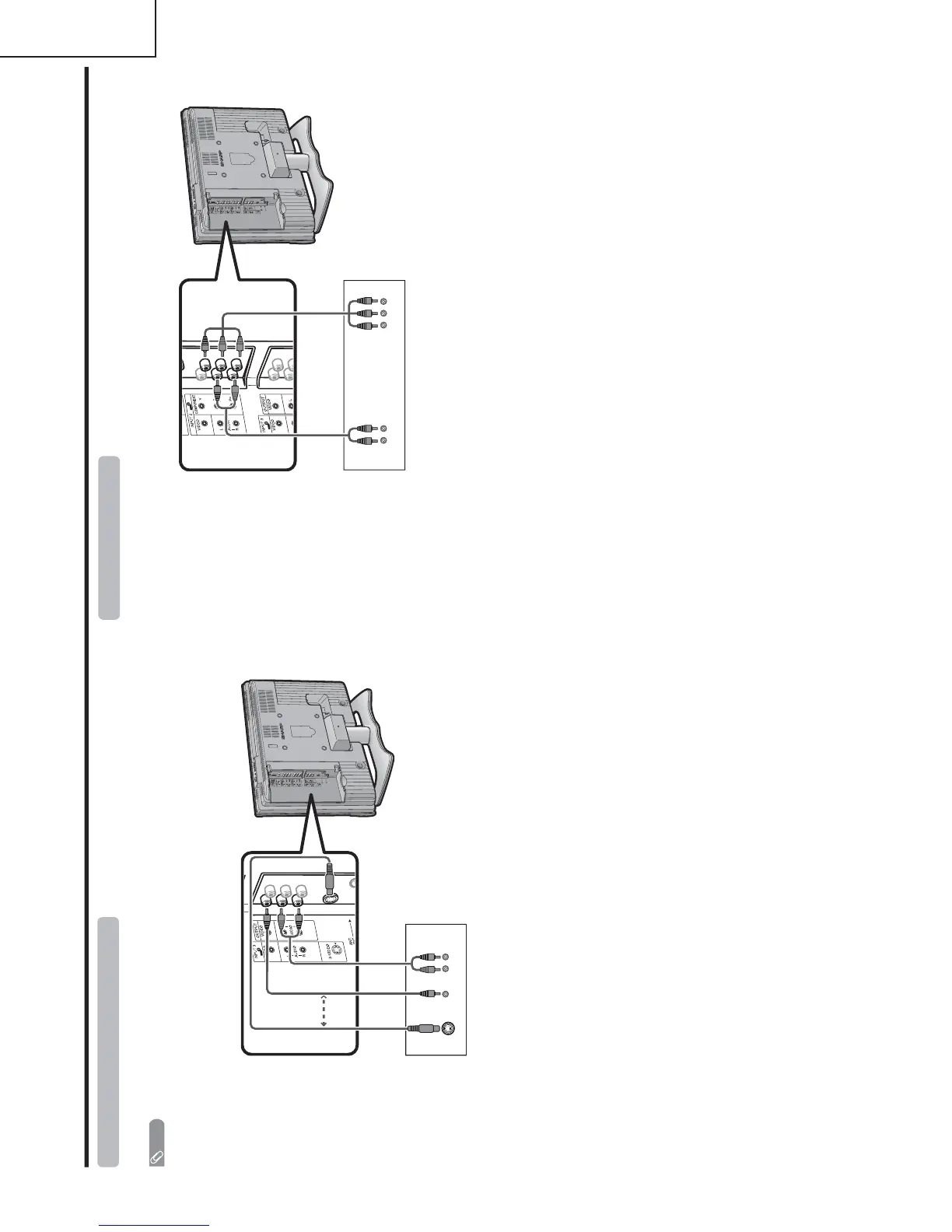

Connecting an HDTV tuner
You can use the INPUT 2 terminal when connecting to an HDTV tuner and other audiovisual equipment.
To watch an image from this input terminal, you
need to select the input source
and the input signal type.
When using component cable, select
“COMPONENT” for “Input select” in the
menu.
Audio cable
(commercially available)
L-AUDIO-RVIDEO
S-VIDEO
Game console/Camcorder
Composite cable
(VIDEO/AUDIO)
(commercially available)
S-video cable
(commercially
available)
Connecting a game console or camcorder
A game console, camcorder and some other audiovisual equipment are conveniently connected using the
INPUT 3 terminals.
NOTE
• The S-video terminal has priority over the video terminals.
•You can also connect the game console to INPUT 1 or 2 terminals to enjoy clearer picture.
To watch an image from this input terminal, you
need to select the input source
and the input signal type.
or
