20
LC-26D43U

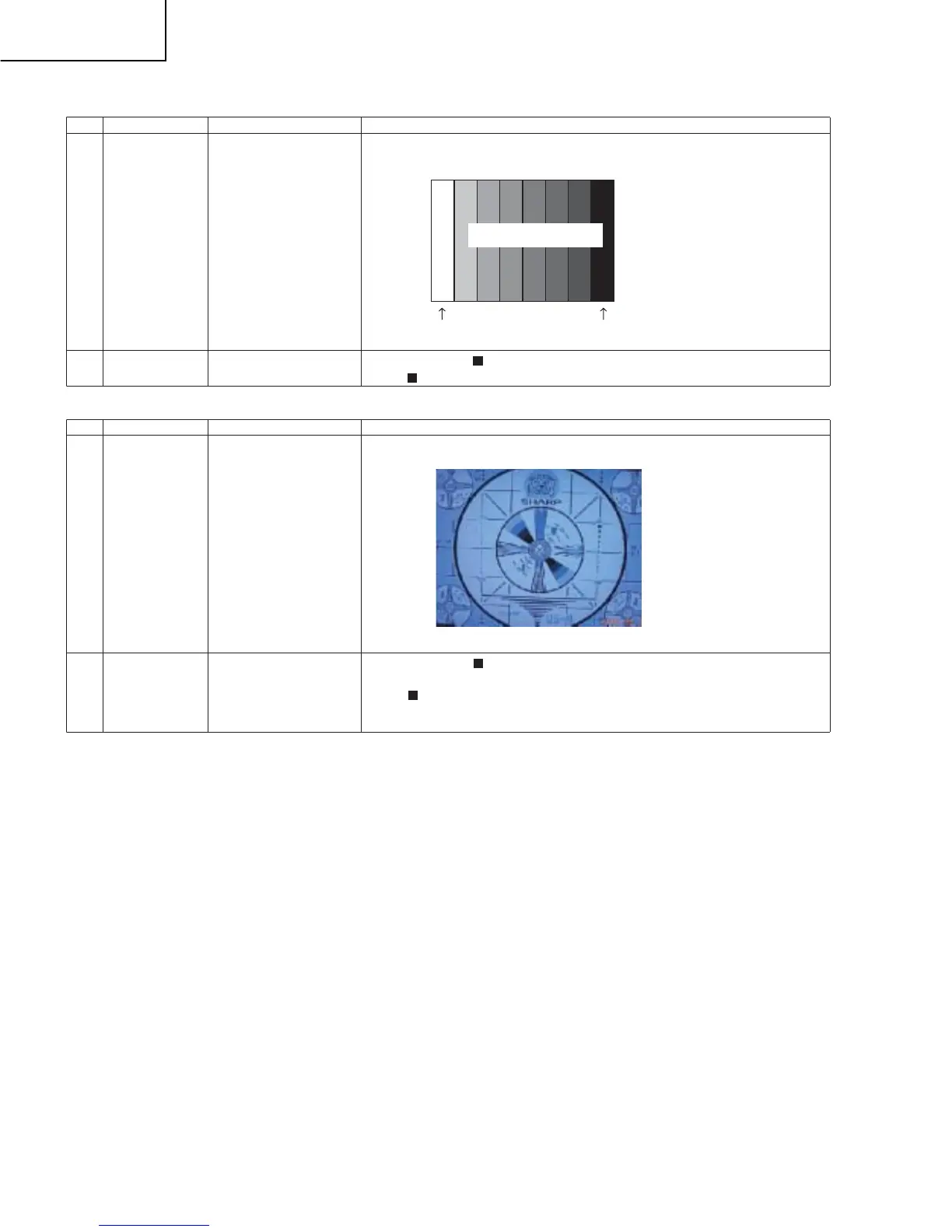

(6) Analog RGB signal adjustment
(7
) Tuner/V-Chip test
1 Setting Analog RGB signal: XGA
(1024x768) 60HZ
SYNC: HV separate
Feed the XGA100% color bar signal to analog RGB input.
2Automatic adjust-
ment execution
Move the cursor to [ ANALOG RGB ADJ] and press the [ENTER] key.
When [ ANALOG RGB ADJ OK] appears ,the adjustment is complete.
1 Setting NTSC RF signal
US-4(AIR)ch
Feed the NTSC signal to RF ANTENNA.
2 Automatic adjust-
ment execution
Move the cursor to[ TUNER VCHIIP TEST(*04ch)] and press the [ENTER] key.
(* Select the channel according to RF signal.)
When [ A-OK(***.**)/VM-OK] appears in blue, the test is complete.(If [A-NG/VM-NG]
appears in yellow or red, the test is incomplete.
Make sure a displacement of ±
0.0625MHZ from the center frequency is acceptable.
0% black
XGA
100% color bar
100% white
100% Color saturation
•
Adjustment item
Adjustment conditions
Adjustment procedure
Adjustment procedure
Adjustment conditions
Adjustment item
