LC-26SA1E/RU, LC-32SA1E/RU
7 – 11
2.4. IC3003 (RH-IXB664WJZZY)

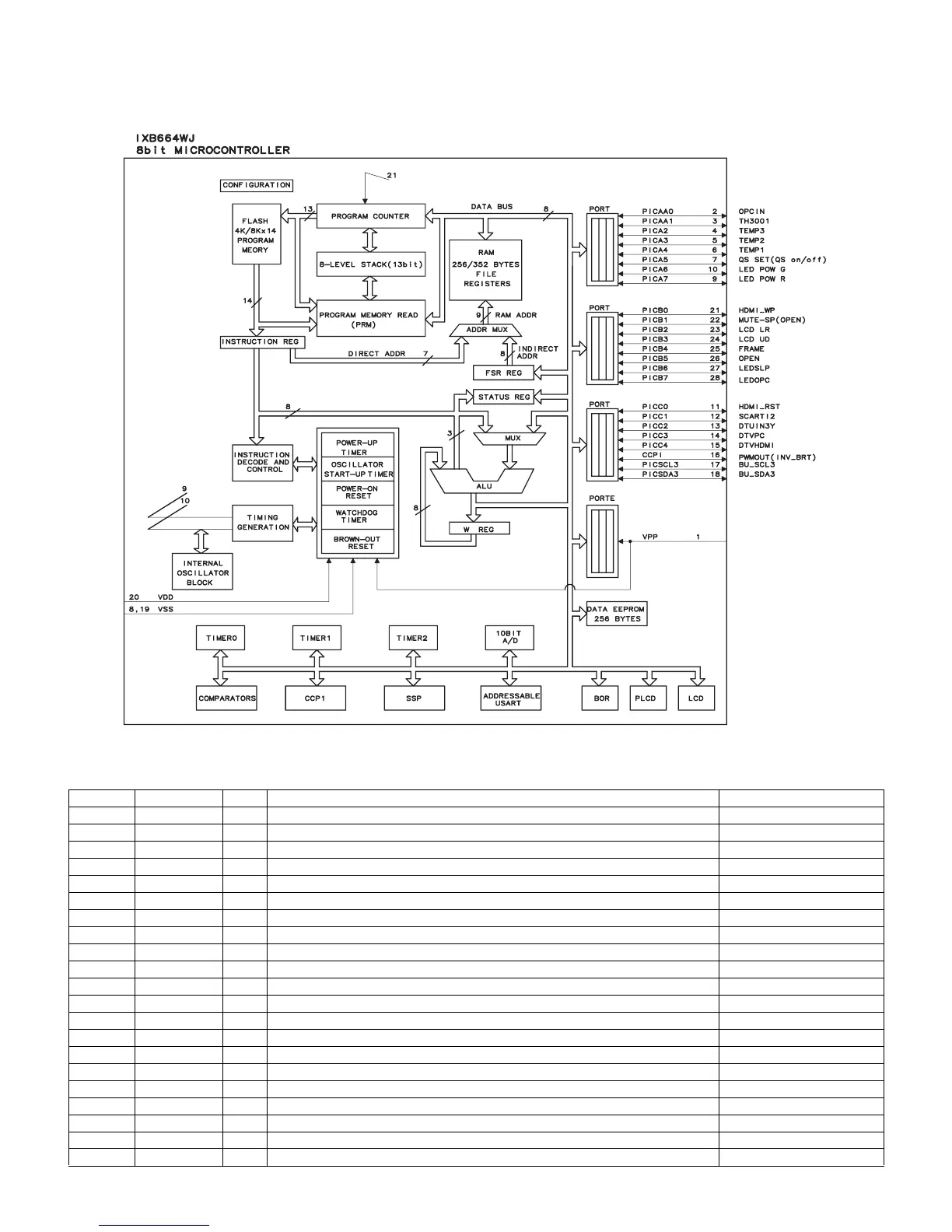

2.4.1 Block Diagram
2.4.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function Sheet Name
2 PICAA0 I OPC_in Signal. OPCIN
3 PICAA1 I Connect to TH3001. TH3001
4 PICA2 O TEM3 Signal. TEMP3
5 PICA3 O TEMP2 Signal. TEMP2
6 PICA4 O TEMP1 Signal. TEMP1
7 PICA5 O QS' on/off Signal. QS SET (QS on/off)
10 PICA6 I LED Power Green Signal. LED POW G
9 PICA7 I LED Power Red Signal. LED POW R
21 PICBO O HDMI_Write Protect Signal. HDMI_WP
22 PICB1 O Mute_SP Signal. MUTE-SP (Open)
23 PICB2 O LCD, S_LBR Signal. LCD LR
24 PICB3 O LCD, G_LBR Signal. LCD UD
25 PICB4 O 50/60Hz Ds_Select Signal. FRAME
26 PICB5 – – Open
27 PICB6 I LED Sleep LED IN Signal. LEDSLP
28 PICB7 I LED OPC IN Signal. LED OPC
11 PICCO O Reset Signal to HDMI. HDMI_RST
12 PICC1 O SCART1/SCART2 Select Signal. SCART12
13 PICC2 O DTU/IN3Y Select Signal. DTUIN3Y
14 PICC3 O DTV/PC Select Signal. DTVPC
15 PICC4 O DTV/HDMI Select Signal. DTVHDMI
A
B
C
To Next Page
