LC-26SA1E/RU, LC-32SA1E/RU
4 – 2

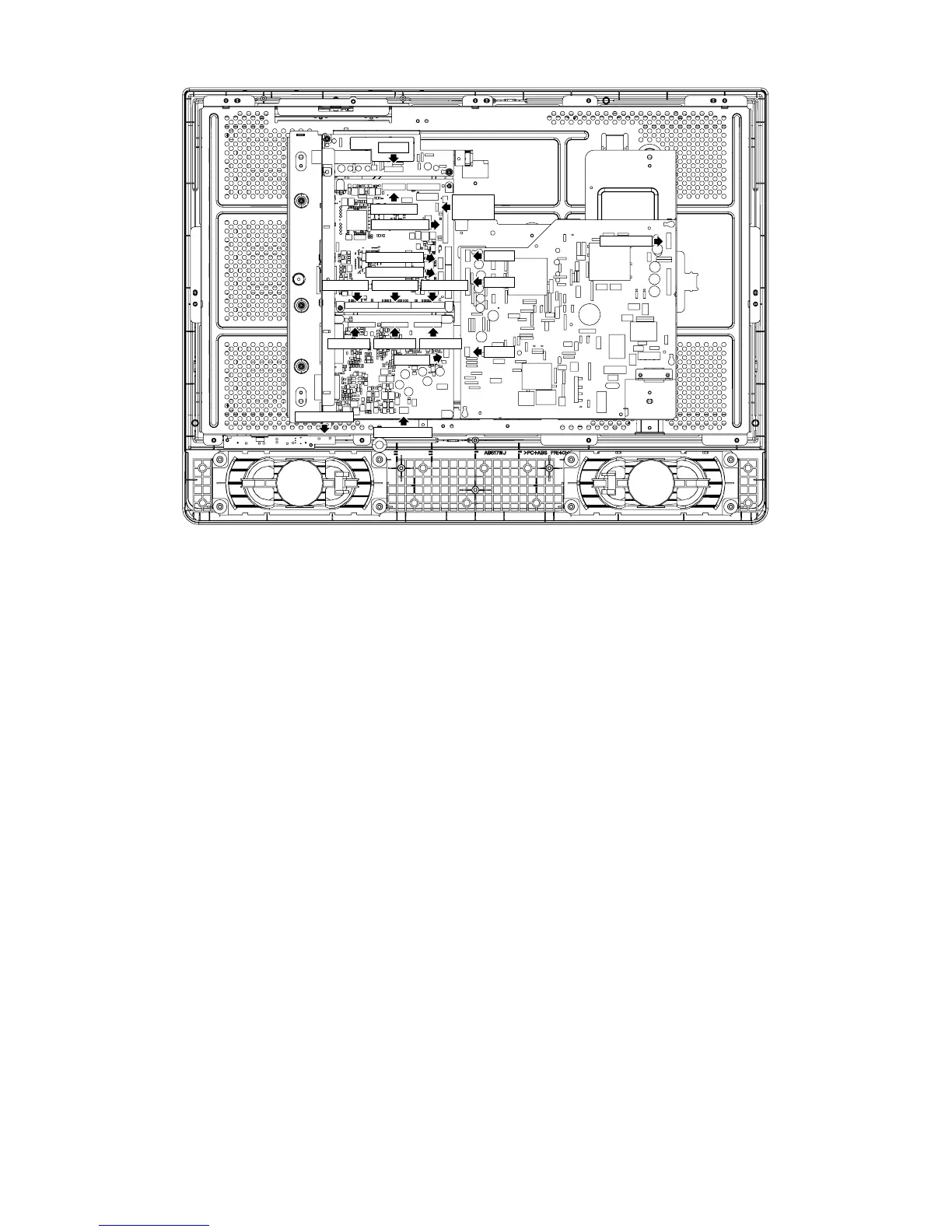

8. Remove all the connectors from PWBs.
P201
SC2705
SC2703SC2702 SC2704
KM
P2302
LV(P2305)
LA(P704)
SH(P2301)
RA(P2303)
RA(P101)
SP(P301)
P1102P1101 P1201
SC301
P703
P701
P702
