9. Remove the 4 lock screws and detach the Power Unit.
10.Remove the 2 lock screws and detach the Tuner Unit and Tuner Earth Plate.
11.Remove the 2 lock screws and detach the Main Unit.
12.Remove the 4 lock screws and detach the AV Unit.
13.Remove the 5 lock screws detach the Chassis Tray.
14.Remove the 2 lock screws and detach the R/C, LED Unit.
15.Remove the 1 lock screw and detach the Speaker R.
16.Remove the 1 lock screw and detach the Speaker L.
10
11
12
13
14
15
16
17

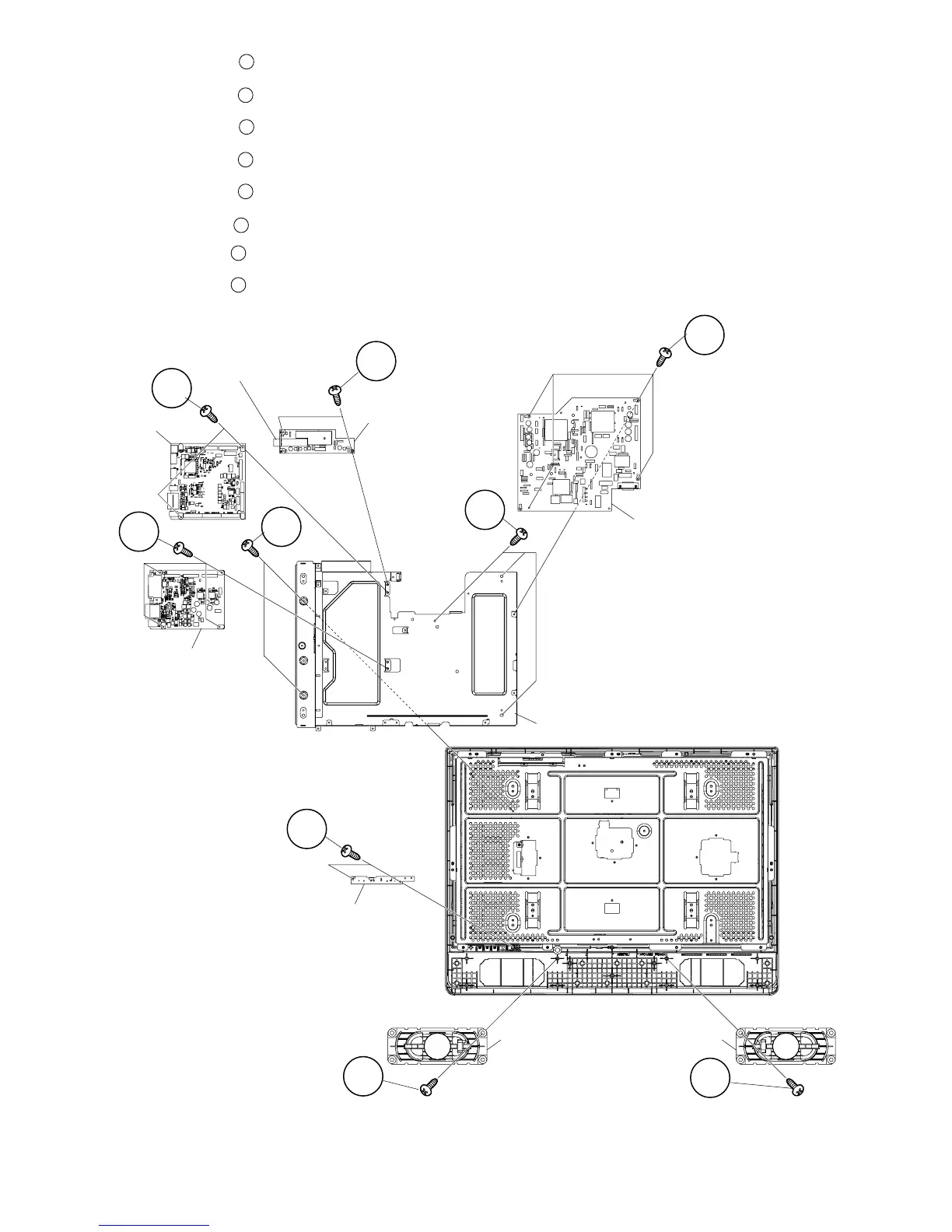

Chassis Tray
Power Unit
10
11
14
12
15
16
17
Tuner Unit
AV Unit
R/C,LED Unit
Speaker R
Speaker L
Main Unit
Tuner Earth Plate
14
13
