Sharp LC-26SB25S Service Manual

LC-26SB25E/S/RU, LC-32SB25E/S/RU, LC-42SB55E/S/RU
30
Picture Contrast slider
Brightness slider
Colour Temperature Normal
Warm
Cool
Picture format
4:3
Wide screen
Sound Incredible surround Off
On
adjustment
Auto adjust Start
Manual adjust Phase slider
Clock slider
Horizontal slider
Vertical slider
Factory
reset Start now
2. Picture check
1) WHITE-D adjustment
General set-up :
Equipment Requirements: Minolta CA-110 or Equivalent Color analyzer Chroma 2250 or equivalent PC signal generator input requirements:
Input Signal Type : PC VGA signal
1024X768/60Hz PC mode with ”5 white block” pattern. (see pattern-1)
Input Signal Strength : 0.7 Vp-p linear voltage.
Input Injection Point : PC D-SUB input

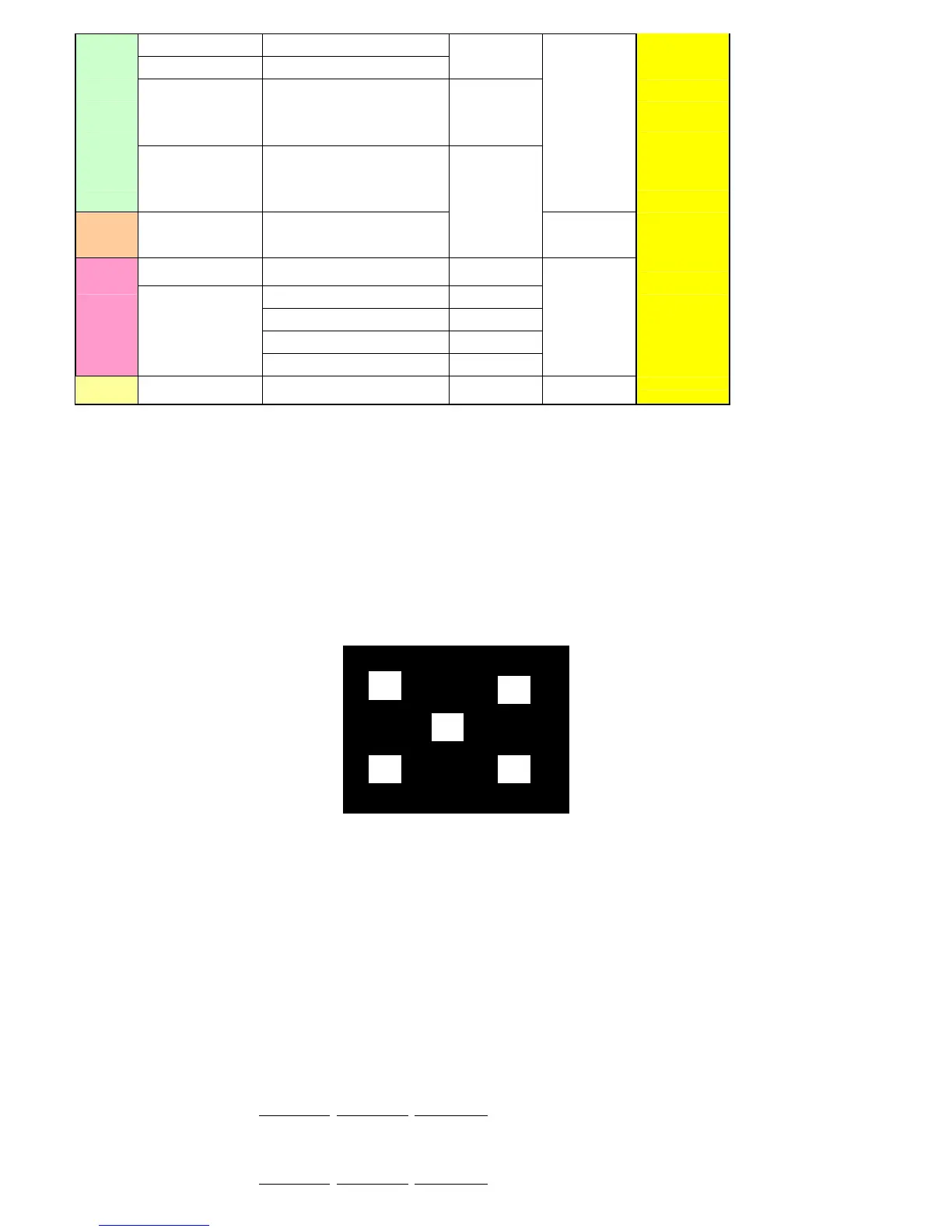

Pattern-1
Alignment method:
Initial Set-up:
1>. Select source as “PC”.
2>. Set Contrast = 50 (CMO) and Brightness=50 (CMO) , at normal menu mode.
3>. Apply “5 white block”(pattern-1) pattern by VGA pattern generator.
4>. Enter factory mode menu: press MENU + Numeric keys “062596” + MENU key (FAC mode menu). Then select “Factory” item.
Alignment:
1>. At FAC mode menu, select AUTO_COLOR item. Then press “OK” key to adjust ADC_GAIN_R, ADC_GAIN_G, ADC_GAIN_B and ADC_OFFSET_R,
ADC_OFFSET_G, ADC_OFFSET_B. Then store those values to NVM.
2>. Apply Flat80 pattern (80% white pattern).
3>. Set color temperature to “NORMAL”.
4>. At FAC mode menu, adjust the CLR TEMP R
, CLR TEMP G, CLR TEMP B values to meet “NORMAL” color coordinates specification below. Then
store those values to NVM
5>. Set color temperature to “COOL”.
6>. At FAC mode menu, adjust the CLR TEMP R
, CLR TEMP G, CLR TEMP B values to meet “COOL” color coordinates specification below. Then store
