LC-32DH57E-BK/RU-BK/S-BK
5 – 10
2.6. IC3302 (VHiBD6538G+-1Y)

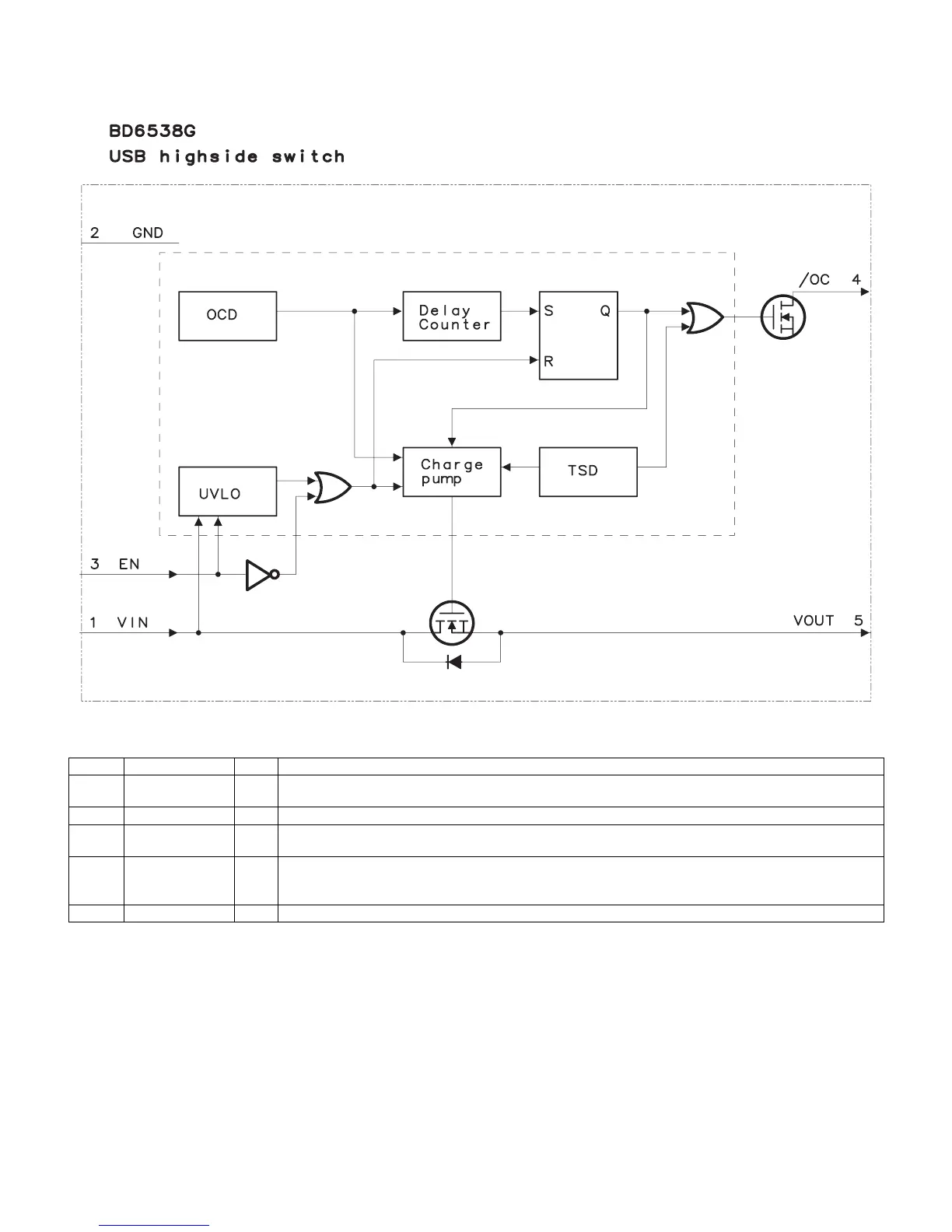

2.6.1 Block Diagram
2.6.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 VIN I Power supply input terminal.
It is an input terminal to the switch and a power supply input terminal of an internal circuit.
2 GND — Ground
3 EN I Switch enable input terminal.
The switch is turned on by inputting the high level.
4 /OC O Overcurrent notification terminal.
When the overcurrent is detected, it becomes a low level.
Open drain output.
5 VOUT O Switch output terminal.
