LC-32DH57E-BK/RU-BK/S-BK
5 – 11
2.7. IC3304 (VHiS80928NM-1Y), IC3305 (VHiS80920NM-1Y)

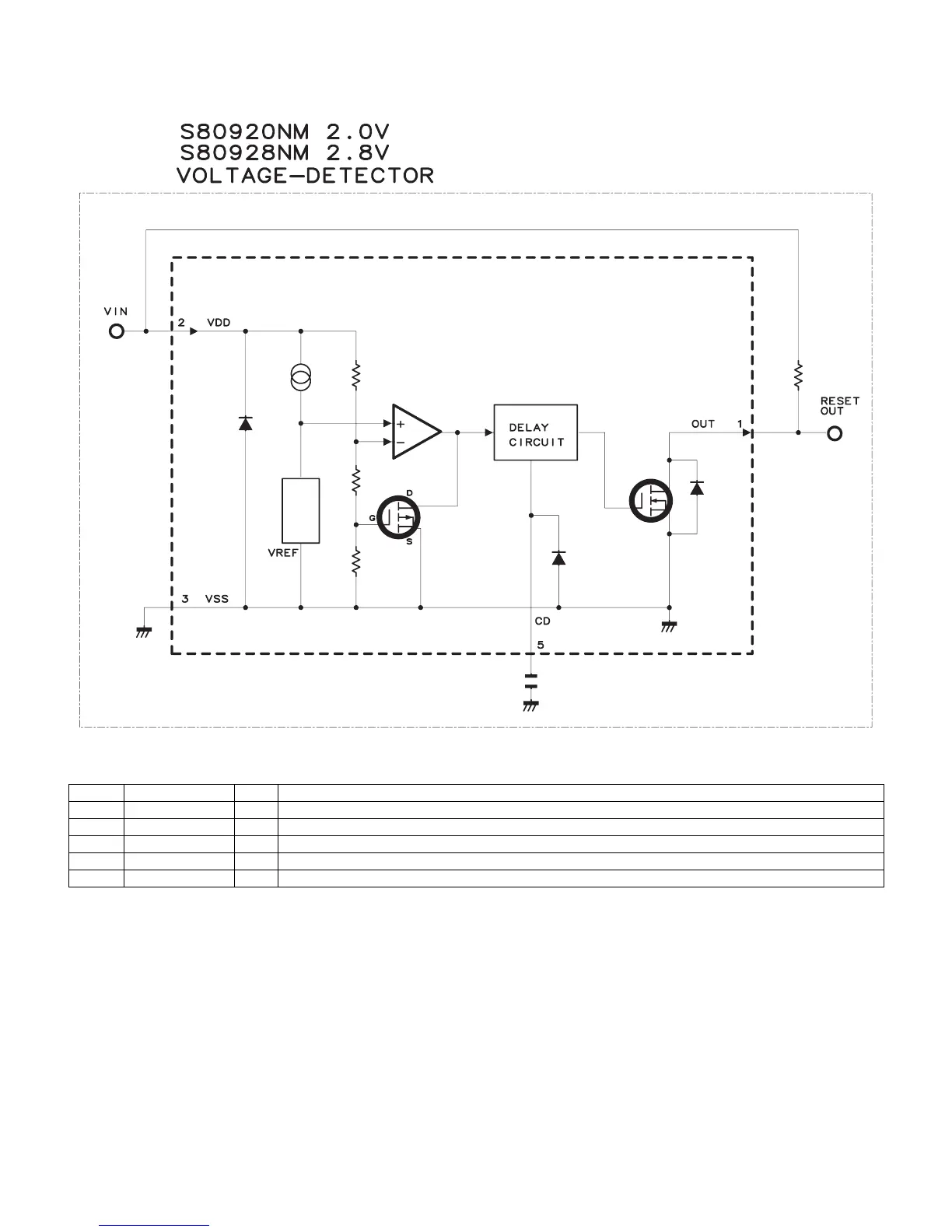

2.7.1 Block Diagram
2.7.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 OUT O Voltage detection output terminal. (RESET detecting voltage)
2 VDD — Voltage input terminal.
3 VSS — Ground terminal.
4 NC — No connection (It is an opening electrically.)
5 CD I External capacitor connection terminal for delay.
