Attaching the stand
• Before attaching (or detaching) the stand, unplug the AC cord from the AC outlet.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from
being damaged.
1
Confi-rm the screws supplied with the TV.
V
I
D
E
O
R
-
A
U
D
I
O
-
L
R
-
AU
D
I
O
-
L
R
-
A
U
D
I
O
-
L
C
O
M
P
O
N
E
N
T
/
A
V
I
N
P
U
T
V
I
D
E
O
/
Y
A
U
D
I
OO
U
T
A
N
T
I
N
P
U
T
1
A
N
A
L
O
G
U
E
R
G
B
(
P
C
)
I
N
P
U
T
4
A
U
D
I
O
I
N
(
R/
L
)

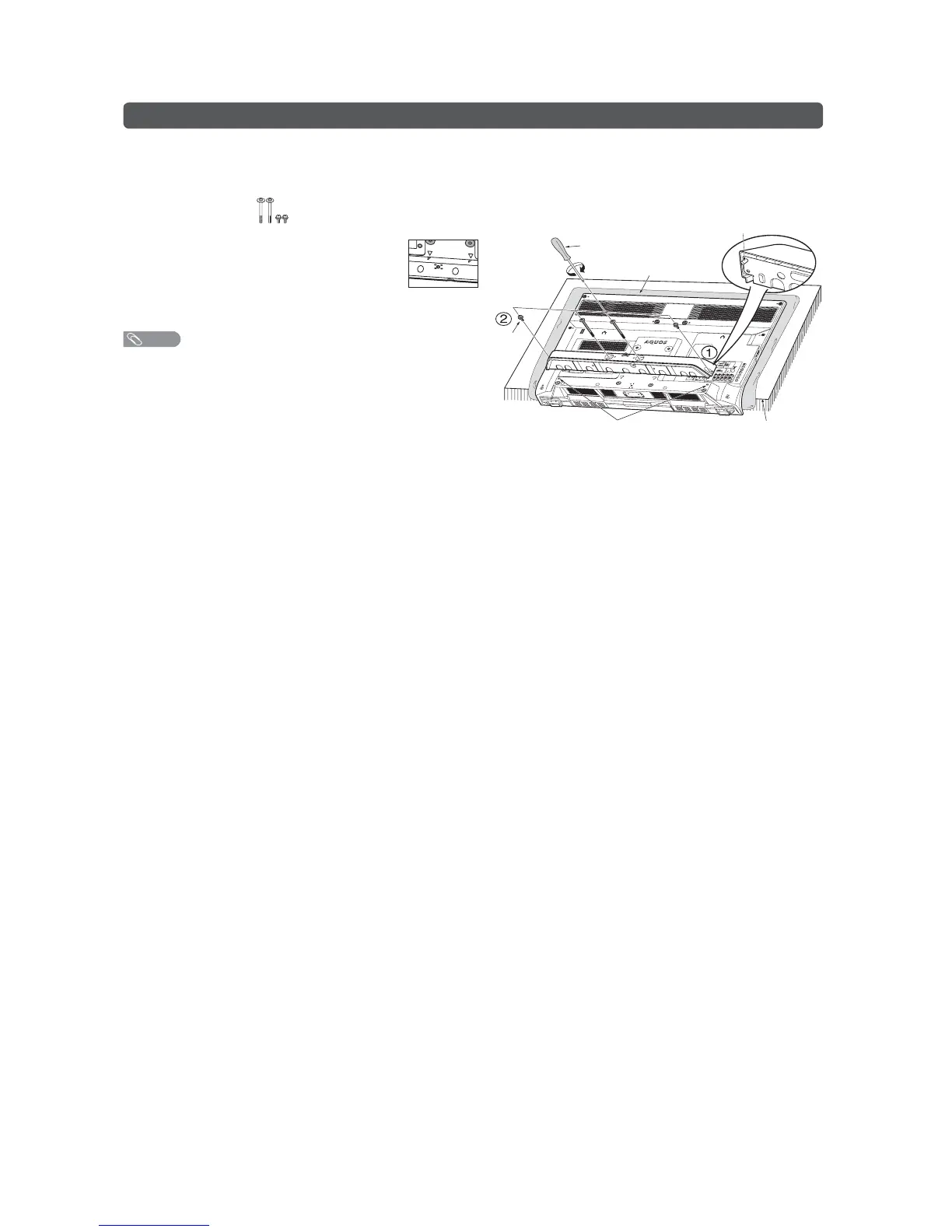

Soft cushion
Screw driver
Screw
Stand base
guide pins
Guide pin holes
Table edge
Screws (
m
4)
(used in step 3)
2
Insert the stand base guide pins to the
stand holes on the rear of the TV. (
1
)
• Make sure the symbol on the stand base is
parallel with the triangle symbol located at
the back of the TV.
3
Insert and tighten the 4 screws into the 4 holes
on the rear of the stand base. (
2
)
NOTE
• To detach the stand, perform the steps in reverse order.
• The TV position setting is set to 7 backward after attaching
the stand.
• Do not remove the plastic wrap before attaching the stand
base to protect it from scratches.
• The bottom area of the set (curvy area) must be beyond the
table’s edge to prevent the TV from damage.
