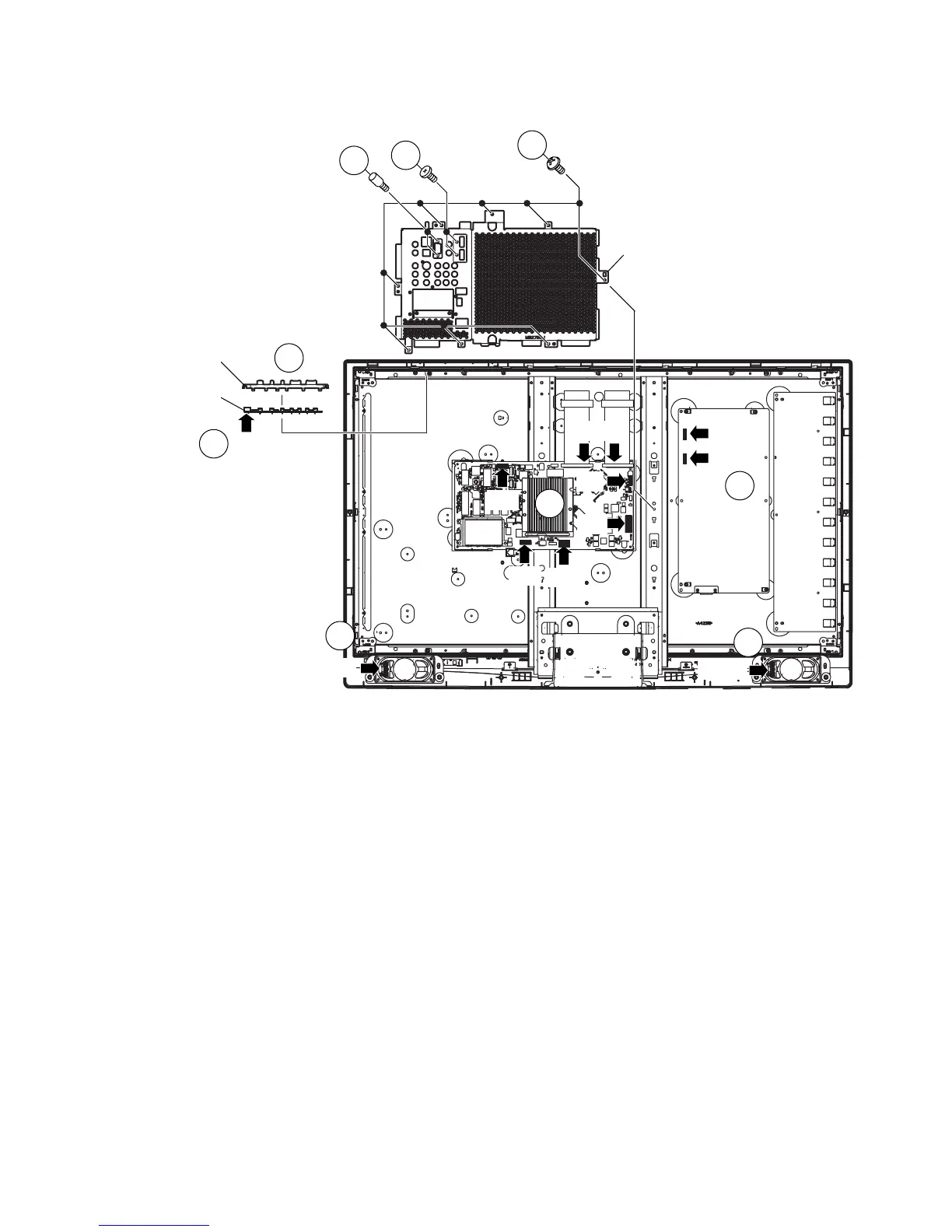

3. Remove the 8 lock screws, 2 lock screws, 2 lock shafts and detach the Main Shield.
4. Disconnect all the connectors from all the PWBs.
5. Remove the KEY Unit Ass'y.
3
3
3
4
5
KM
KM
RA
SP
PD
PD
LB
SP-L
SP-R
LB
4
4
4
4
FPC
Operation Button
Main Shield
KEY Unit
