LC-37D44U
4 – 3

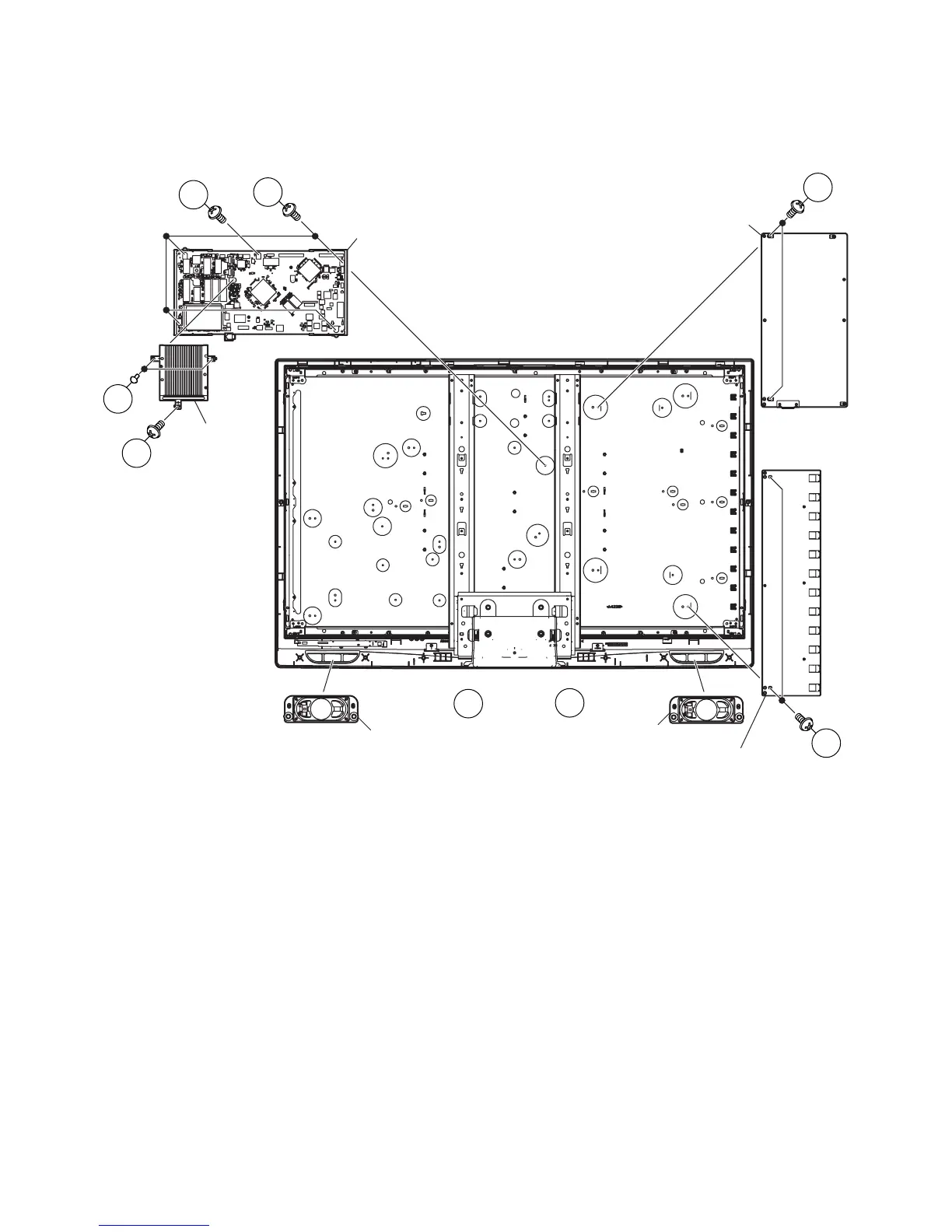

6. Disconnect all the connectors from all the terminals of Speaker (L) (R) and detach the Speaker (L) (R).
7. Remove the 2 lock screws, 4 lock screws and detach the MAIN Unit.
8. Remove the 2 lock rivets and detach the Heat Sink.
9. Remove the 2 lock screws and detach the INVERTER Unit.
10.Remove the 2 lock screws and detach the POWER Unit.
7
10
6
6
9
7
7
8
INVERTER Unit
Speaker (L)Speaker (R)
Heat Sink
MAIN Unit
POWER Unit
To Next Page
