INSTALLATION

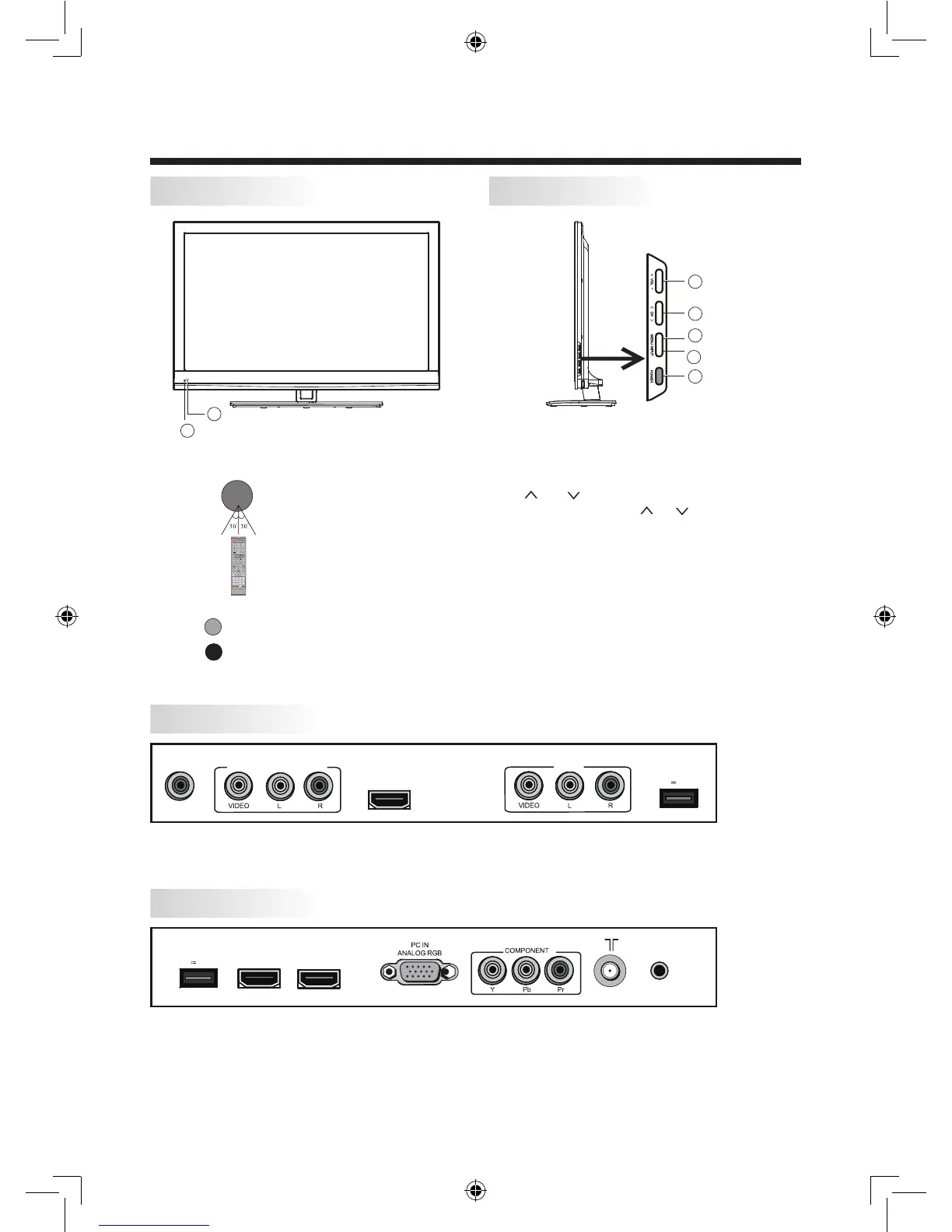

Front Side
1
2
1
2
3
4
5
1. VOL+ / VOL-
Adjust sound level.
In MENU mode, press "VOL+/VOL-" to adjust the
item that you selected.
2. CH / CH
In TV mode, press "CH /CH " to change the
channel up and down.
3. MENU
Display main menu.
4. INPUT
Display the input source menu.
5. POWER
Switch the TV between on and standby mode.
1. Remote control sensor
2. LED Indicator
BLUE POWER ON
RED STANDBY
Side Terminals
Rear Terminals
All the input terminals are (from left to right):
1: DIGITAL AUDIO OUTPUT, 2: AV1 / COMPONENT AUDIO IN, 3: HDMI 3, 4: AV2 IN 5: USB 2
All the input terminals are (from left to right):
1: USB1, 2: HDMI 1, 3: HDMI 2, 4: PC IN ANALOG RGB, 5: COMPONENT 6: ANT, 7: PC AUDIO
MPX
INPUT
WIDE
P.MODE S.MODE
MADE IN CHINA
845-051-02B13
USB 1
5V 500mA
HDMI 1
HDMI 2
ANT
PC AUDIO
DIGITAL
AUDIO
OUTPUT
USB 2
5V 500mA
AV1 / COMPONENT AUDIO IN
AV2 IN
HDMI 3
