INSTALLATION
Connecting External Devices
This television provides two groups of AV, one group of component terminals for convenient connection
to VCR, DVD or other video equipments. Please refer to the owner's manual of the equipments to be
connected as well.

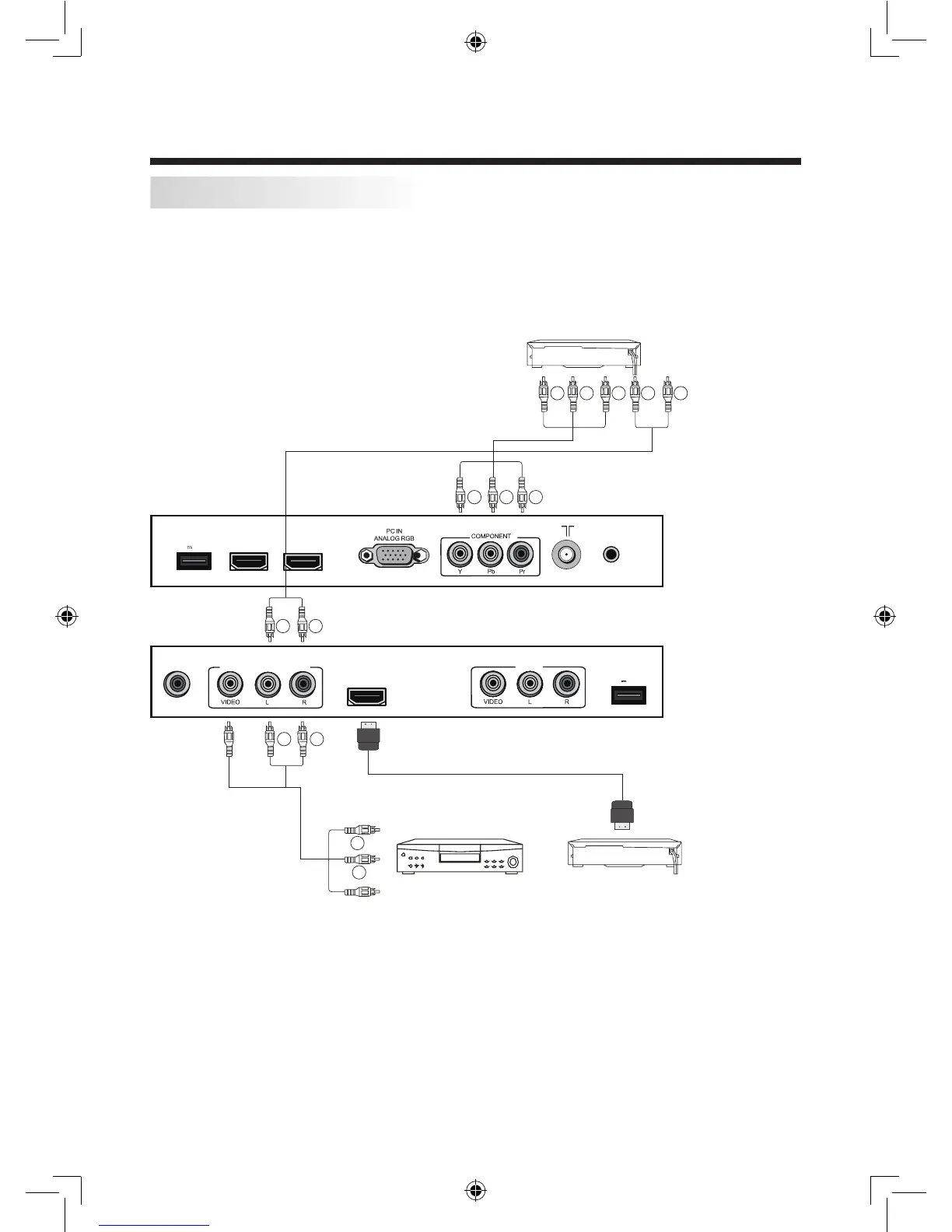

You can use the input terminals on the rear panel as follows.
It can be connected to the following equipments: VCR, multi disc player, DVD player, camcorder, video
game console or stereo system, etc.
Component terminals can support these video formats: 480i, 480p, 576i, 576p, 720p/50Hz, 720p/60Hz,
1080i/50Hz, 1080i/60Hz, 1080p/24Hz, 1080p/50Hz, 1080p/60Hz.
Note: AV1 and component terminals share the same audio input terminal.
Y Pb Pr L R
Y Pb Pr
L R
L R
Video
Audio
L
R
Video
HDMI
VIDEO EQUIPMENT
To video output terminal
To audio output terminal
Audio L/R
Video equipment with
component output terminal
USB 1
5V 500mA
HDMI 1
HDMI 2
ANT
PC AUDIO
DIGITAL
AUDIO
OUTPUT
USB 2
5V 500mA
AV1 / COMPONENT AUDIO IN
AV2 IN
HDMI 3
