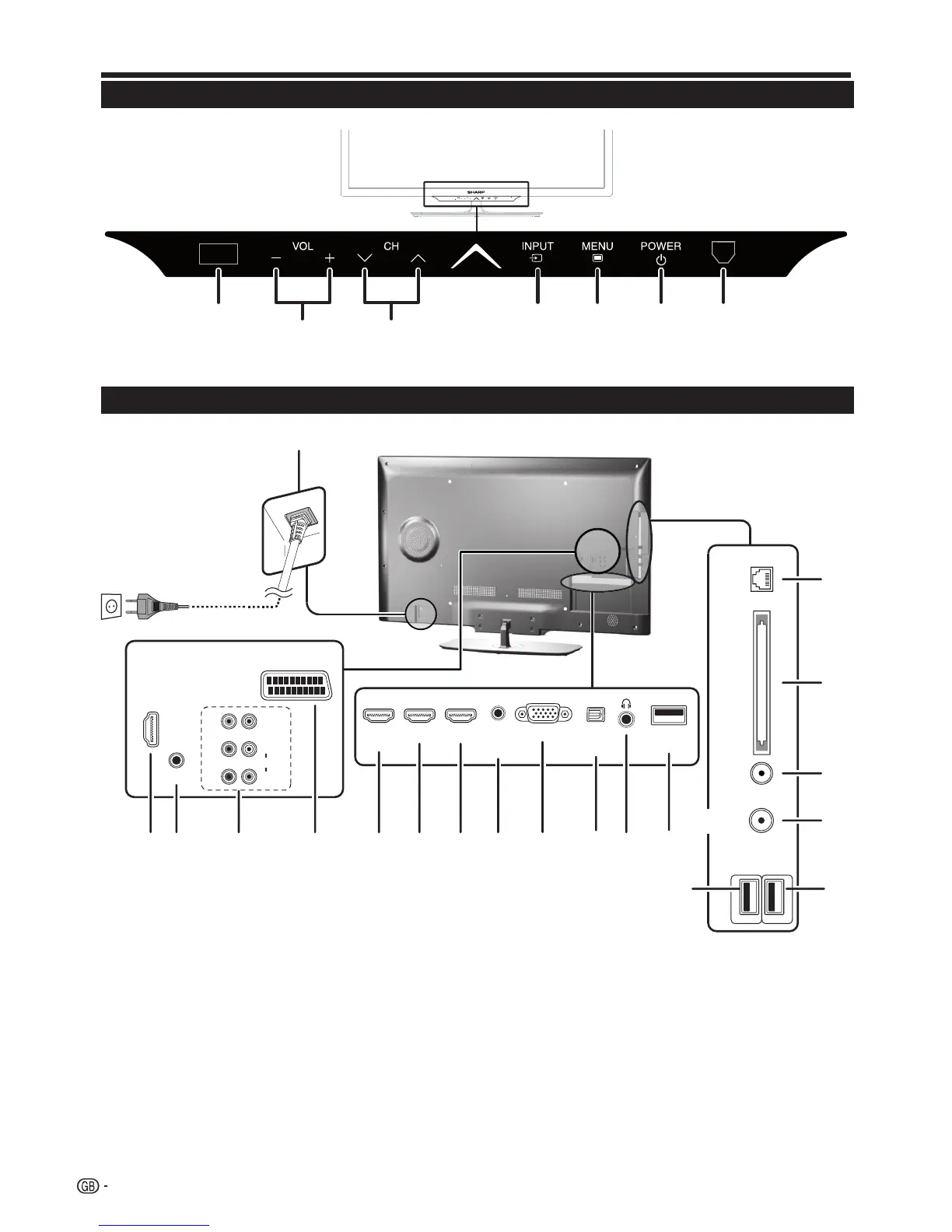

Sharp LC-40LE730E - TV Views and Terminals; Front View Overview; Rear and Side Panel Terminals

TV (Front view)
TV (Side and rear view)
Illumination led*
Introduction
WARNING
• Excessive sound pressure from earphones and headphones can cause hearing loss.
• Do not set the volume at a high level. Hearing experts advise against extended listening at high volume levels.
Power
button
Menu
button
Input
source
button
Volume
buttons
Programme (channel)
buttons
1
USB terminal (USB REC / MEDIA
PLAYER / SOFTWARE / HDD
READY / 3D GLASSES BATTERY)
2 USB terminal (MEDIA PLAYER /
SOFTWARE / HDD READY / 3D
GLASSES BATTERY)
3 USB terminal (Wi-Fi use only)
4 HEADPHONES jack
5 SCART (AV/RGB, Y/C Input) terminal
6 PC Input
7 Antenna input terminal
8 OPTICAL DIGITAL AUDIO OUTPUT
terminal (SPDIF)
9 SERVICE connector (jack 3.5 mm)
10 HDMI 1 (HDMI/DVI/ARC)
11 HDMI 2 (HDMI/DVI)
12 HDMI 3 (HDMI/DVI)
13 HDMI 4 (HDMI/DVI)
14 AUDIO input for DVI and PC
(Jack 3.5mm connector)
15 COMMON INTERFACE slot
16 AC INPUT terminal
17 SAT (Satellite antenna input) (Only
LE732 series)
18 ETHERNET (10/100) terminal
19 COMPONENTS / AV terminals
Remote
Control
Sensor
3D infrared
emitter
*TV indicator status (Page 10)
4
(LE732 series)
USB
(WIFI)
PC IN
HDMI / PC
ANALOG
AUDIO
INPUT
VIDEO
Pr
Pb
Y
R
L
SCART (AV/RGB/S-VIDEO)
SERVICE
HDMI 1
HDMI 2
HDMI 3
ETHERNET
C.I.
ANTENNA
SAT
USB
(HDD)
HDMI 4
AUDIO
13 9
19
5
10 11 12 14 6 8 4 3
16
18
15
7
17
1
DIGITAL
AUDIO
OUTPUT
2
(ARC)
