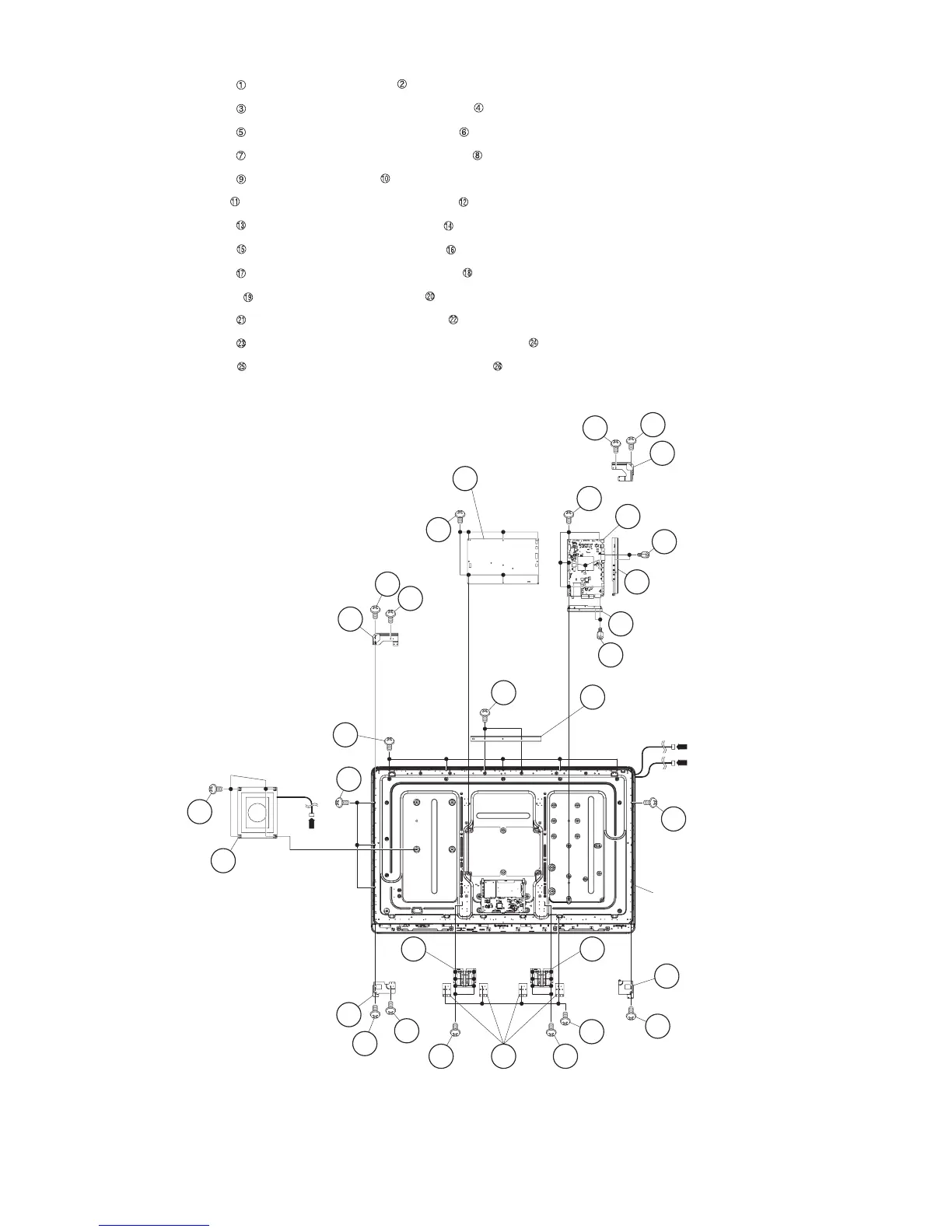

4. Removing of MAIN Unit, POWER/LED Drive Unit, Woofer, Stand Angle,60” LCD Panel Module Unit.
1. Remove the 7 lock screws and detach the MAIN Unit .
2. Remove the 2 lock screws and detach the Terminal Angle (Bottom) .
3. Remove the 2 lock screws and detach the Terminal Angle (Side) .
4. Remove the 6 lock screws and detach the POWER/LED Drive Unit .
5. Remove the 4 lock screws and detach the Woofer .
6. Remove the 1 lock screw and detach the LCD Angle (Bottom-R) .
7. Remove the 4 lock screws and detach the LCD Angle (Top-L) .
8. Remove the 2 lock screws and detach the LCD Angle (Top-R) .
9. Remove the 2 lock screws and detach the LCD Angle (Bottom-L) .
10.Remove the 12 lock screws and detach the 2 Stand Angle .
11.Remove the 4 lock screws and detach the 4 FIX Angle (B-MA) .
12.Remove the 2 lock screws and detach the Back Light Chassis Support Angle .
13.Remove the 9 lock screws and detach the 52” LCD Panel Module Unit .
25
60" LCD Panel
Module Unit
[L1]
[L2]
25
25
23
Back Light Chassis
Support Angle
24
12
11
17
17
21
1919
LCD Angle
(Bottom-R)
18LCD Angle
(Bottom-L)
20
Stand Angle
20
Stand Angle
22
FIX Angle
(B-MA)
9
10
Woofer
[SB]
2 MAIN Unit
5
6
TERMINAL Angle
(Side)
3
4
TERMINAL Angle
(Bottom)
1
8
POWER/LED
Drive Unit
7
16 LCD Angle
(Top-R)
15
15
14LCD Angle
(Top-L)
13
13
