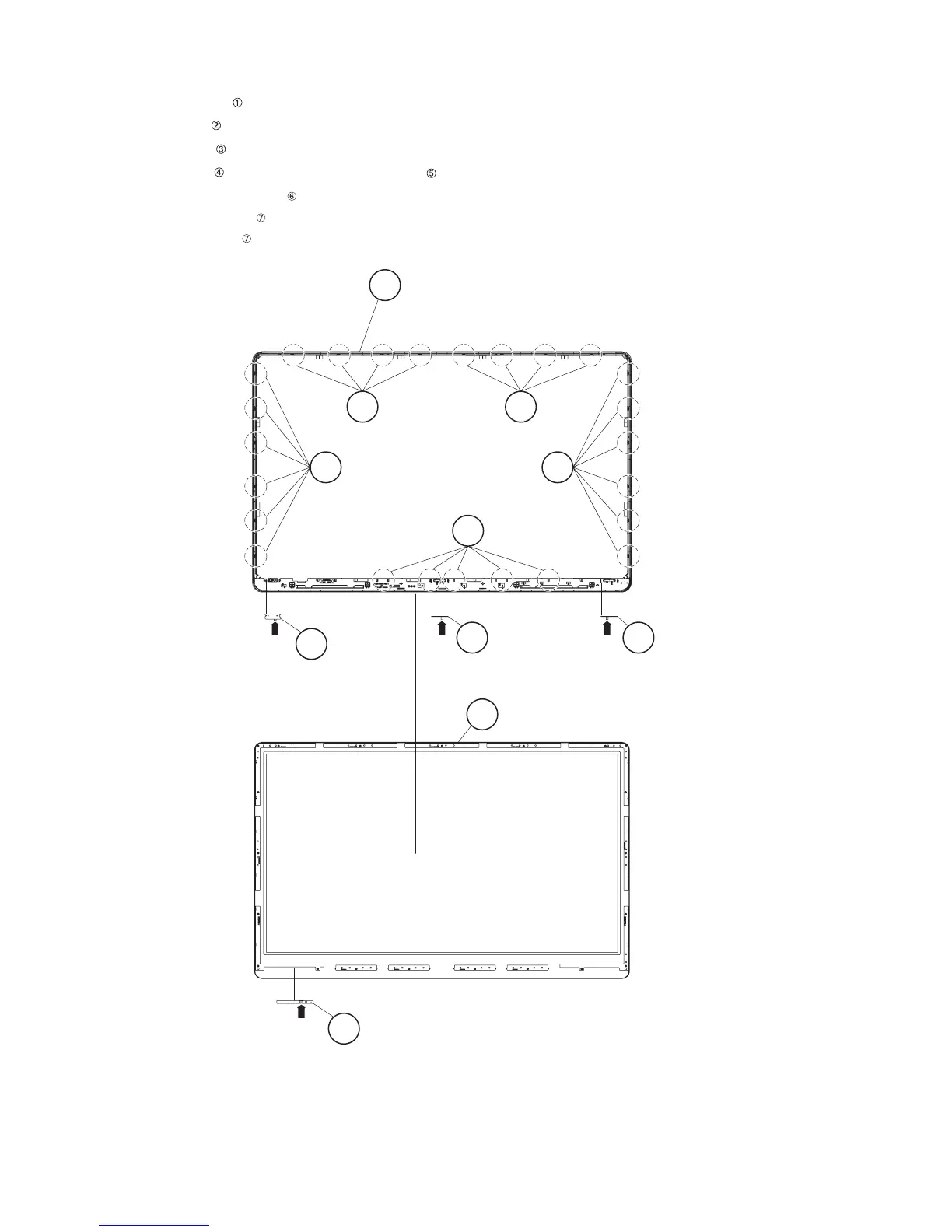

5. Removing of R/C, LED Unit, ICON Unit, LOGO Unit, Front Cabinet Ass’y, Glass Front Panel Ass’y, TOUCH
SENSOR Unit.
1. Detach the R/C, LED Unit .
2. Detach the ICON Unit .
3. Detach the LOGO Unit .
4. Remove the 25 Hooks and detach the Front Cabinet Ass’y
5. Detach the Glass Front Panel Ass’y .
6. Detach the Touch Sensor Unit .
NOTE: The Touch Sensor unit removed once is not reusable.
Glass Front Panel Ass'y
7 TOUCH SENSOR Unit
[RK]
6
4 4
4
4 4
Front Cabinet Ass'y5
1 RC,LED
Unit
[RA]
2 ICON Unit
[R]
3 LOGO Unit
[RL]
