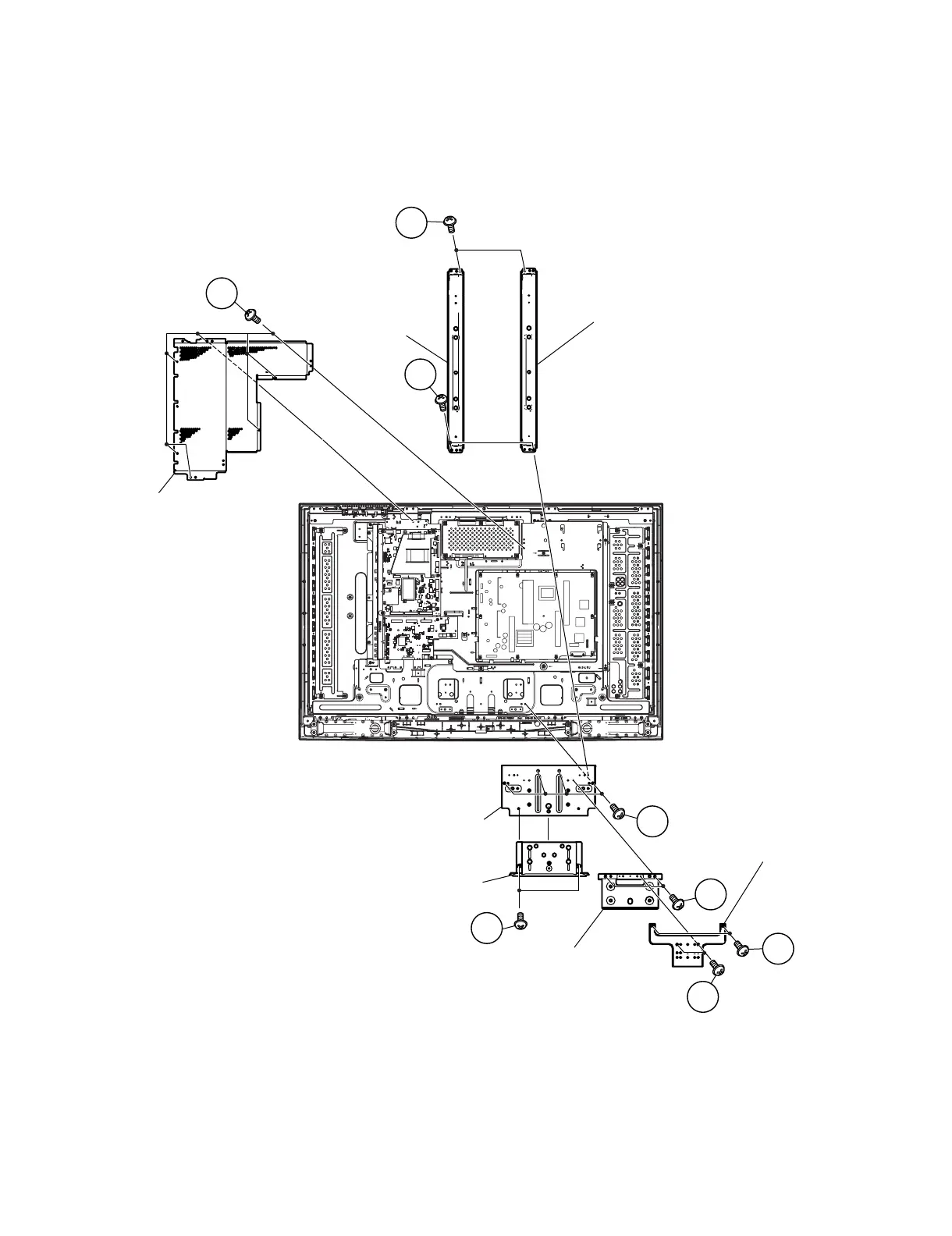

4. Remove the 4 lock screws and detach the Chassis Fixing Angle.
5. Remove the 4 lock screws and detach the Center Angle (L)(R).
6. Remove the 2 lock screws and detach the Stand Assist Angle.
7. Remove the 2 lock screws and detach the Stand Assist Cover.
8. Remove the 4 lock screws and detach the Stand Fixing Angle.
9. Remove the 7 lock screws, detach the MAIN Shield.
Stand Fixing Angle
Stand Assist Angle
Chassis Fixing Angle
Center Angle (L)
Center Angle (R)
MAIN Shield
Stand Assist Cover
5
5
9
6
4
4
7
8
